Wen 56352 User Manual

28

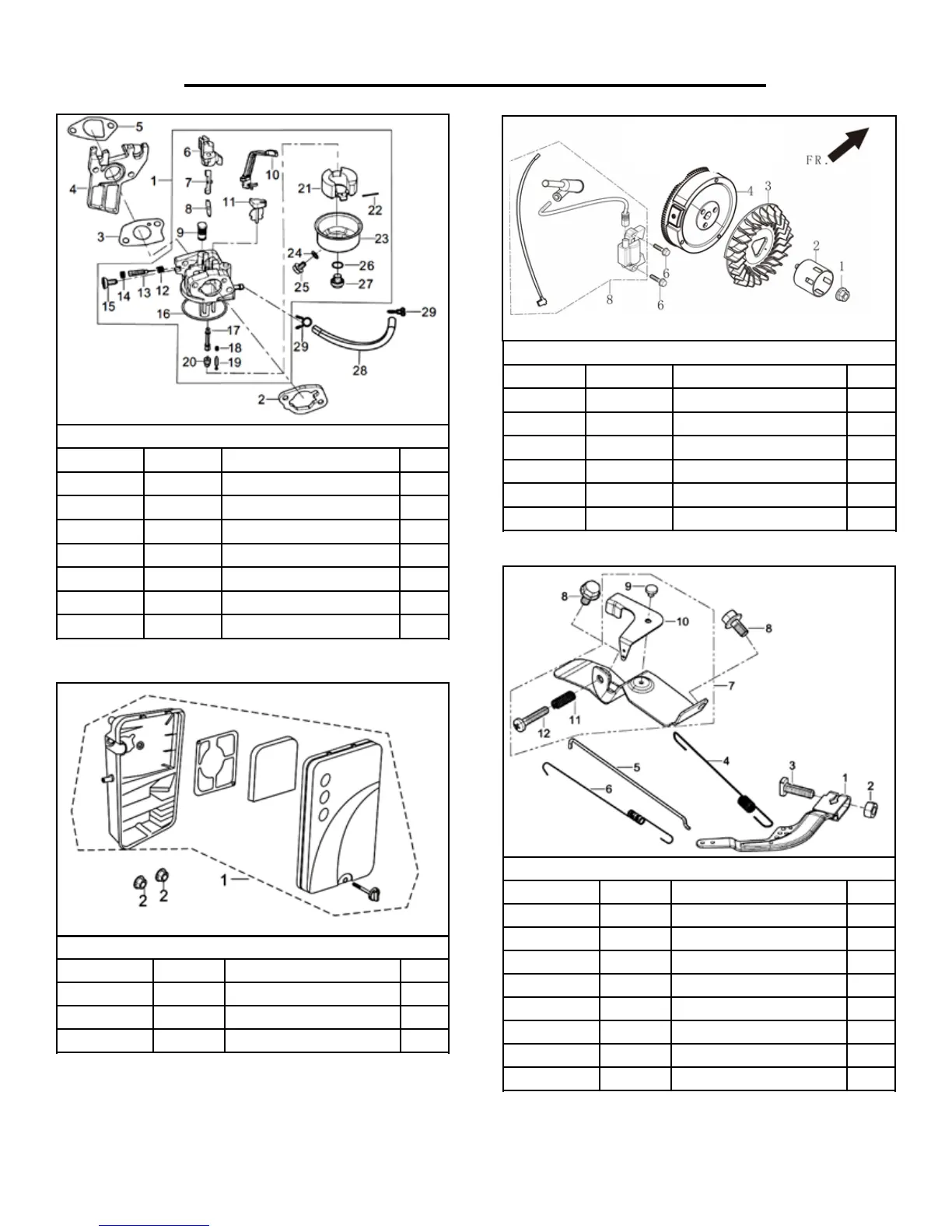

EXPLODED VIEW AND PARTS LIST
No. Part Description Qty.
Fig. 10-1 P54178 Air Cleaner Assembly 1
P54178-1 Air Cleaner Element 1
Fig. 10-2 P54179 Nut 2
Fig. 10 - Air Cleaner
No. Part Description Qty.
Fig. 12-1 P54624 Regulating Arm 1
Fig. 12-2 P54176 Nut M6 1
Fig. 12-3 P54622 Lock Bolt 1
Fig. 12-4 P54616 Back Spring 1
Fig. 12-5 P54620 Pulling Rod 1
Fig. 12-6 P54618 Regulating Spring 1
Fig. 12-7 P54617 Regulating Assembly 1
Fig. 12-8 P54619 Bolt 2
Fig. 12 - Control Assembly
No. Part Description Qty.
Fig. 9-1 P54718 Carburetor Assembly 1
Fig. 9-2 P54168 Air Cleaner Gasket 1
Fig. 9-3 P54166 Carburetor Gasket 1
Fig. 9-4 P54164 Carburetor Insulator Plate 1
Fig. 9-5 P54162
Carburetor Insulator Gasket
1
Fig. 9-28 P54388 Fuel Tube 1
Fig. 9-29 P54390 Collar 2
Fig. 9 - Carburetor Assembly
No. Part Description Qty.
Fig. 11-1 P54630 Nut M14 X 1.5 1
Fig. 11-2 P54362 Starting Flange 1
Fig. 11-3 P54634 Flywheel Fan 1
Fig. 11-4 P54636 Flywheel 1
Fig. 11-6 P54628 Bolt 2
Fig. 11-8 P54638 Ignition Coil 1
Fig. 11 - Flywheel/Ignition Coil
