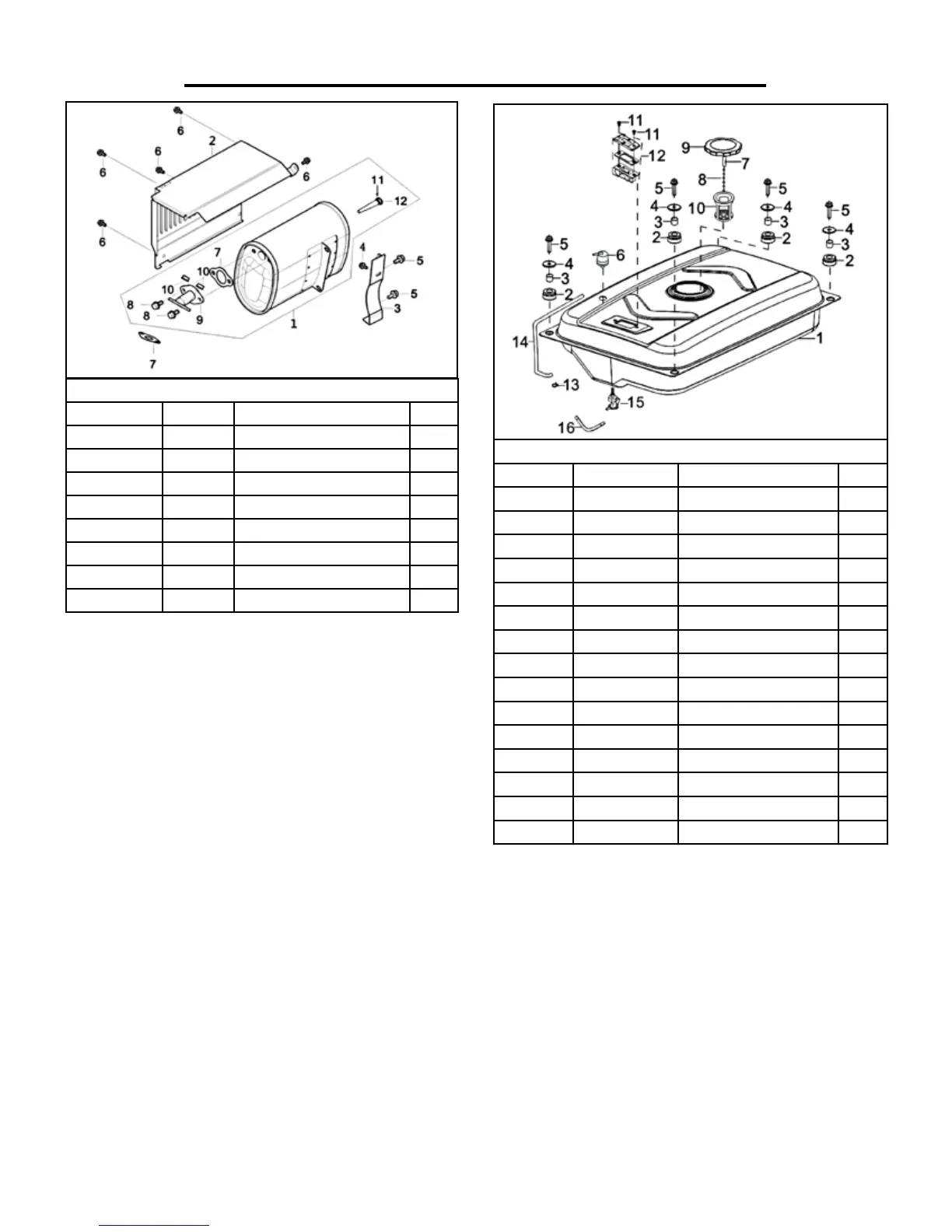

EXPLODED VIEW AND PARTS LIST
No. Part Description Qty.
Fig. 13-1 P54401
Muffler Assembly
1
Fig. 13-2 P54402
Cover, Outer Muffler
1
Fig. 13-3
P54412 Bracket, Muffler
1
Fig. 13-4
P54422 Bolt
1
Fig. 13-5
P54404 Bolt
2
Fig. 13-6
P54422 Bolt
5
Fig. 13-7 P54426
Gasket, Exhaust Outlet
1
Fig. 13-10
P54246 Nut
2
Fig. 13 - Muffler Assembly
No. Part Description Qty.
F14-1
P54371 Fuel Tank 1
F14-2
P54386
Cushion
4
F14-3
P54396
Fitting Bush
4
F14-4
P54384 Washer 4
F14-5
P54186 Bolt 4
F14-6
P54375-2 Valve 1
F14-7
P54373-1 Clip 1
F14-8
P54373 Chain 1
F14-9
P54365 Fuel Cap 1
F14-10
P54372 Fuel Filter 1
F14-11, 12
P54374 Fuel Gauge Assembly 2
F14-13
P54375-9 Clamp 1
F14-14
P54375-7 Rubber Hose 1
F14-15
P54392 Fuel Cock 1
F14-16
P54388 Fuel Tube 1
Fig. 14 - Tank, Fuel
