Wen 56352

30

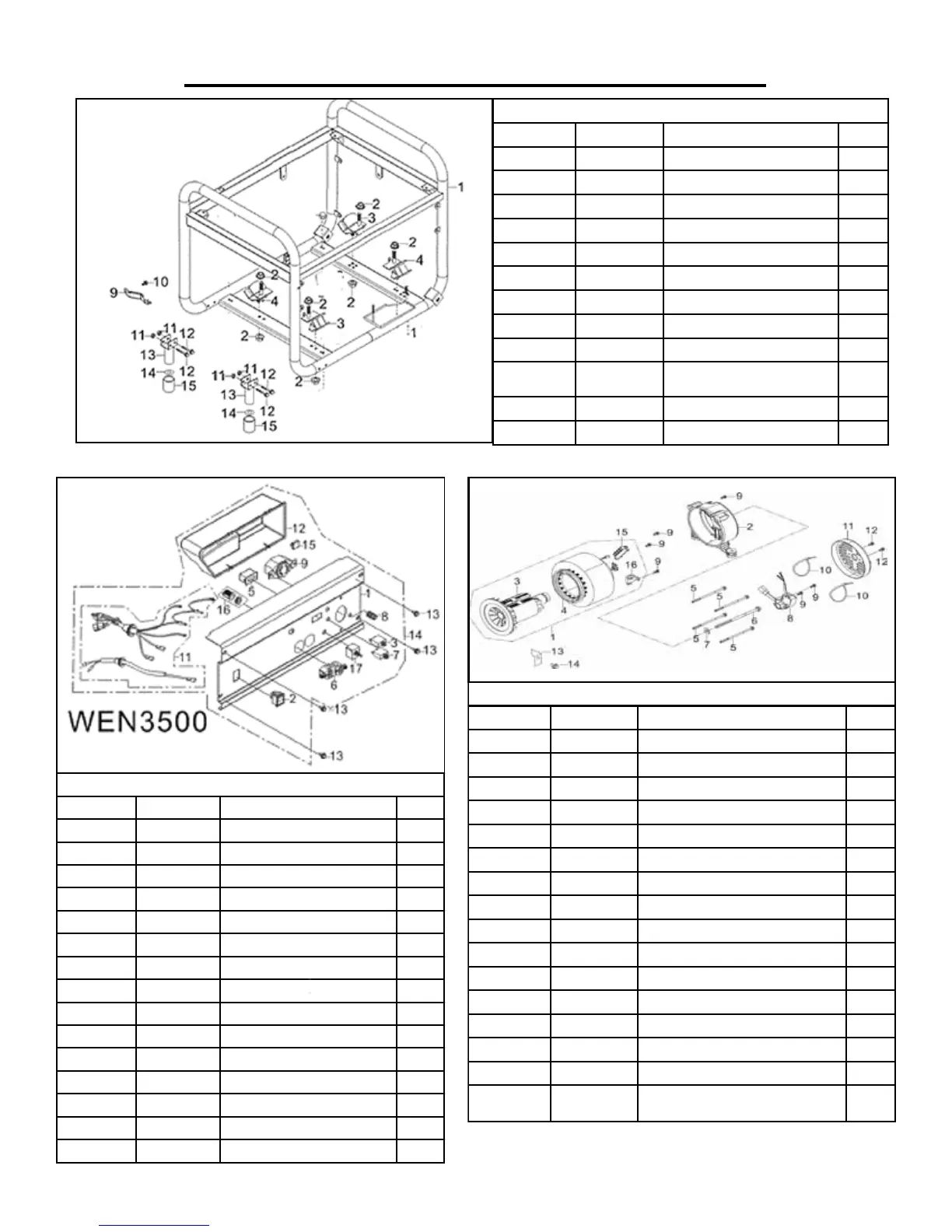

EXPLODED VIEW AND PARTS LIST
No. Part Description Qty.
Fig. 15-1
P54237 Frame Comp 1
Fig. 15-2
P54246 Nut M8 2
Fig. 15-3
P54242 Bottom Rubber A 2
Fig. 15-4
P54244 Bottom Rubber B 8
Fig. 15-5
P54246 Nut M8
Fig. 15-9
56475-1720 Air Cleaner Mount 1
Fig. 15-10
56475-1711 Bolt 1
Fig. 15-11
56475-1712 Nut 4
Fig. 15-12
56475-1711 Bolt 2
Fig. 15-13
56475-1706
Front Rubber Foot
Assembly
2
Fig. 15-14
56475-1710 Washer 2
Fig. 15-15
P54871-3 Sleeve 2
Fig. 15 - Frame, Engine
No. Part Description Qty.
Fig. 16-1 P54283 Control Panel 1
Fig. 16-2 P54296 Ignition Switch 1
Fig. 16-3 56352-1603 Circuit Breaker 1
Fig. 16-5 P54826 Voltage Selector Switch 1
Fig. 16-6 P54454 120V Duplex Receptacle 1
Fig. 16-7 P54262 Grounding Terminal 1
Fig. 16-8 P54838 Circuit Breaker 2
Fig. 16-9 P54272 120/240V Receptacle 1
Fig. 16-11 56352-1611 Wiring Harness 1
Fig. 16-12 56352-1612 Rear Panel 1
Fig. 16-13 P54304 Bolt 4
Fig. 16-14 56352-1614 Control Panel Assembly
1
Fig. 16-15 P54451 Rectifier
1
Fig. 16-16 P54878 12V Socket
1
Fig. 16-17 P54826 Transfer Switch
1
Fig. 16 - Panel Subassembly, Control
No. Part Description Qty.
Fig. 17-1 P54325 Rotor Assembly 1
Fig. 17-2 P54336 Rotor Bracket 1
Fig. 17-3 P54330 Rotor 1
Fig. 17-4 P54329 Stator 1
Fig. 17-5 P54350 Bolt 4
Fig. 17-6 P54354 Rotor Bolt 1
Fig. 17-7 P54348 Washer 1
Fig. 17-8 P54342 Voltage Regulator 1
Fig. 17-9 P54360 Bolt 2
Fig. 17-10 56475-1910 Cable Tie 2
Fig. 17-11 P54337 End Cover 1
Fig. 17-12 P54340 Bolt 1
Fig. 17-13 56475-1913 Stopper 2
Fig. 17-14 P54340 Bolt 1
Fig. 17-15 56475-1915 Terminal 1
Fig. 17-16 P54332
Carbon Brush
Subassembly
1
Fig. 17 - Rotor/Stator
