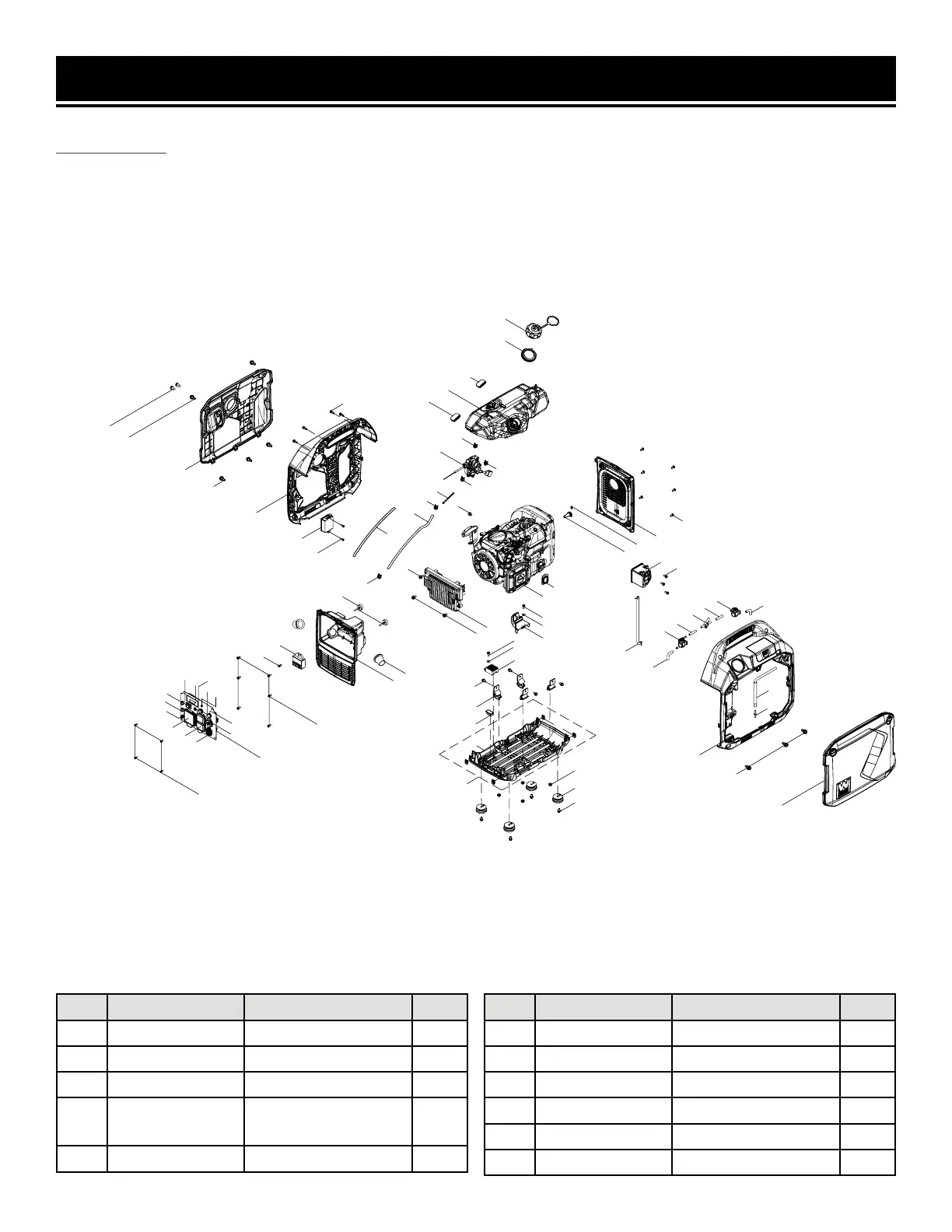

EXPLODED VIEW & PARTS LIST
GENERATOR
NO. PART NO. DESCRIPTION QTY.
1 56202i-001 Screw, M4x10 4
2 56360iX-102 Control Panel 1
3 56202i-025 Screw, M5x16 19
4 56360iX-104
Self-tappling Screw,
ST4.2x19
2
5 56360iX-105 Screw 6
32
NO. PART NO. DESCRIPTION QTY.
6 56360iX-106 Ignition Module 1
7 56360iX-107 Front Panel 1
8 56360iX-108 Wire Jacket 2
9 56360iX-109 Bumper pad 2
10 56202i-013 Bolt, M6x12 7
11 56360iX-111 Inverter 1
33
17
7
1
11
2
10
3
3
55
10
12
23
24
19
19
20
21
29
30
31
44
45
5
47
48
49
50
53
54
5
52
24
26
3
14
15
16
6
51
13
32
41
37
9
46
34
18
43
42
8
36
36
39
35
40
38
5
5
27
28
5
5
15
15
10
56
25
4
57
58
67
68
69
70
71
72
73
74
75
76
To Next Page
