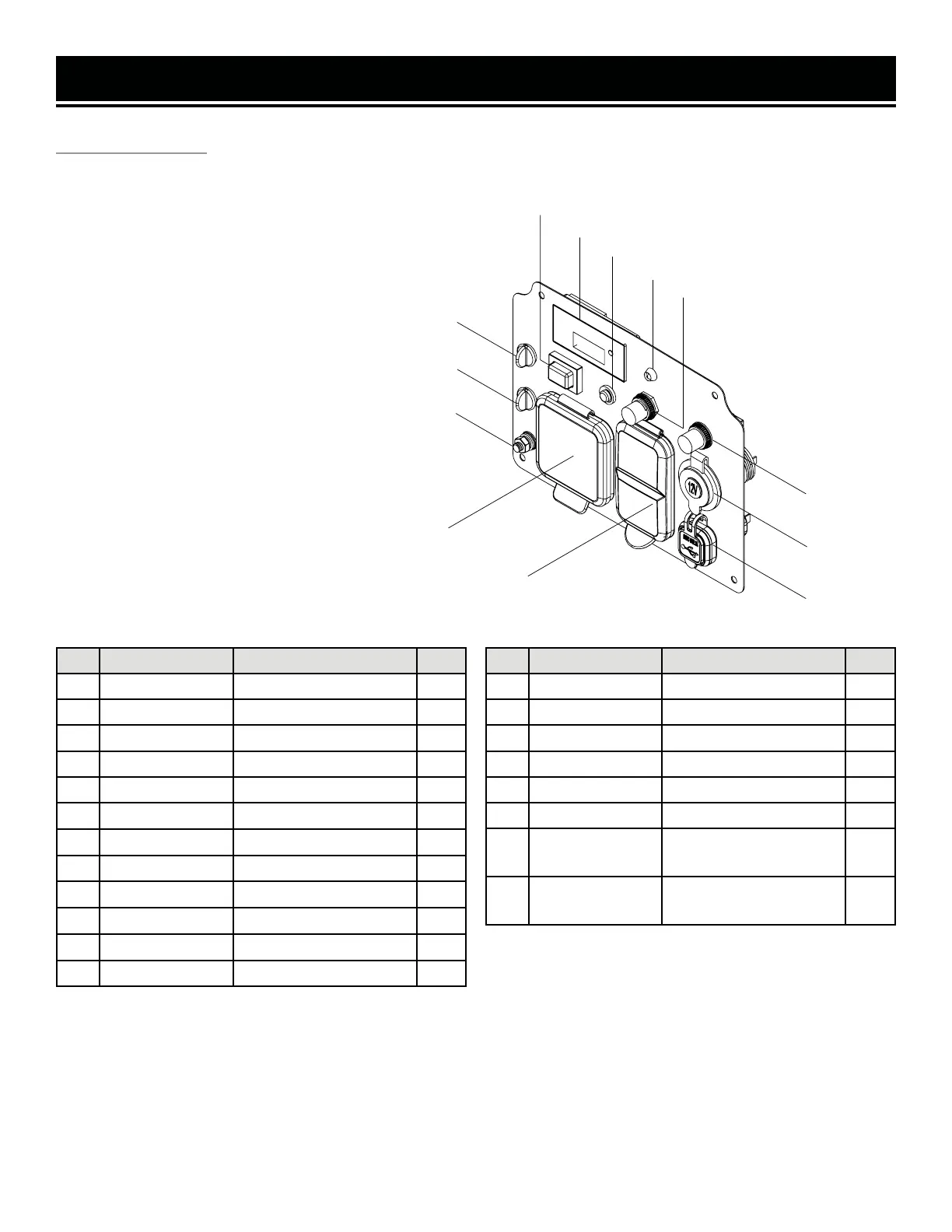

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 56203i-005.14B Parallel Outlet (Black) 1
2 56203i-005.14R Parallel Outlet (Red) 1
3 56360iX-167 Digital Meter 1
4 56360iX-175 LED 1
5 56360iX-159 Nut, M6 1
6 56203i-005.11
Washer, φ6
1
7 56203i-005.12
Washer, φ6
1
8 56360iX-162 Earth Stud 1
9 56360iX-163
Washer, φ6
1
10 56360iX-164
Washer, φ5
1
11 56360iX-165
Washer, φ5
1
12 56360iX-166 Nut, M5 1
NO. PART NO. DESCRIPTION QTY.
13 56203i-005.4 Eco-mode Switch 1
14 56203i-005.5 Reset Button 1
15 56500-208 Breaker 20A 1
16 56360iX-173 Breaker 8A 1
17 56203i-005.2 DC 12V Outlet 1
18 56360iX-171 USB 1
19 DG4500iX-207
NEMA TT-30R 120V
30A AC Outlet
1
20 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex Outlet
1
36
1
2
3
4
5,6,7,8,9,10,11,12
19
14
15
1
1
20
To Next Page
