Wen 56380i

Fig.
No.
Part No. Description Qty.
13-1
56380i-
1301B
Engine Frame
Assembly
1
13-2 56380i-1302 Battery Case 1
13-3 56380i-1303 Bolt 12
13-4 56380i-1304 Battery 1
13-5 56380i-1305
Battery
Bracket
1
13-6
56380i-
1306B
Anode Wire
(Negative)
1
13-7 56380i-1307
Cathode Wire
(Positive)
1
13-8 56310i-1420 Bolt 2
13-9 56310i-1419 Bushing 2
13-10 56310i-1421 Rubber Jacket 2
13-11 56380i-1311 Inverter 1
13-12 56310i-1425 Bolt 1
13-13 56380i-1313 Rubber Sleeve 1
Fig.
No.
Part No. Description Qty.
13-14 56380i-1314
Carbon Tank
Mounting Bracket
1
13-15 56380i-1315 Carbon Tank 1
13-16 56380i-1316
Carbon Tank
Hose, Primary
1
13-17
56380i-
1317B
Air Filter Hose 1
13-18 56380i-1318
Carbon Tank
Hose, Secondary
1
13-19 56380i-1319 Clamp 2
13-20 56380i-1320 Clamp 1
13-21 56380i-1321 Clamp 1
13-22 56310i-1009 Bolt 2
13-23 56380i-1323 Front Handle 1
13-24 56380i-1324 Handle 1
13-25 56380i-1325 Bolt 2
13-26 56380i-1326 Screw 1
13-27 56380i-1327 Grounding Wire 1

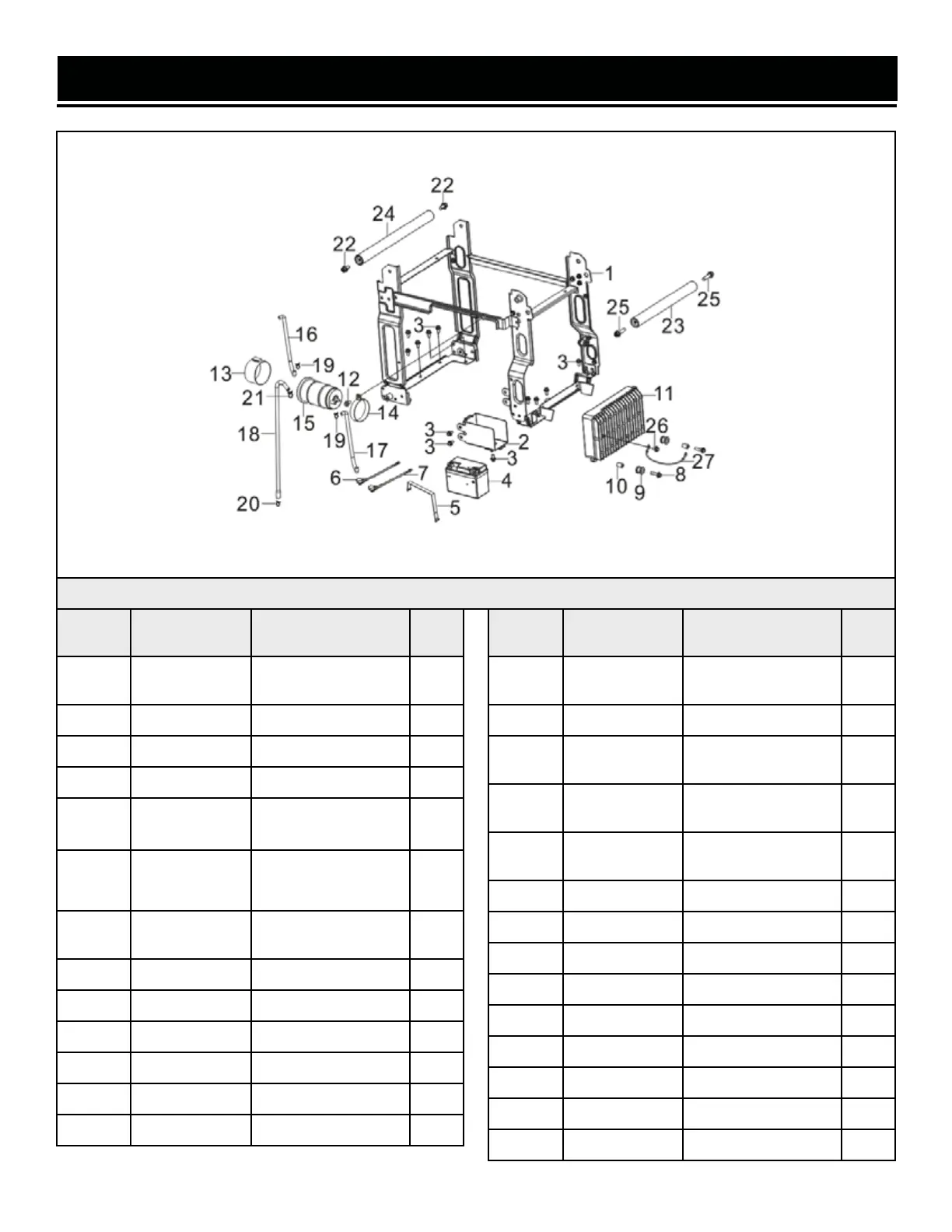

Fig. 13 - Frame
EXPLODED VIEW & PARTS LIST
