Wen 56380i

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
16-1 56380i-1601 Left Cover 1
16-2 56200-0406 Bolt 4
16-3 56380i-1603 Left Shell 1
16-4 56380i-1604 Right Shell 1
16-5 56380i-1605 Right Cover 1
16-6 56200-0408 Nut 8
16-7 56380i-1607 Bolt 8
16-8 56200-0515
Fuel Tank
Rubber Sleeve
4
16-9 56200-0508 Bolt 8
16-10 56380i-1610
Recoil Starter
Guide
Subassembly
1
No. Part No. Description Qty.
16-11 56200-0612 Screw And Washer 2
16-12 56200-0420
Recoil Starter
Handle
1
16-13 56380i-1613
Right Maintenance
Door
1
16-14 56200-0425B Bolt 1
16-15 56380i-1615
Maintenance
Door Lock
1
16-16 56200-0427B Nut 1
16-17 56380i-1617 Wheel 2
16-18 56380i-1618 Wheel Axle 2
16-19 56380i-1619 Nut 16

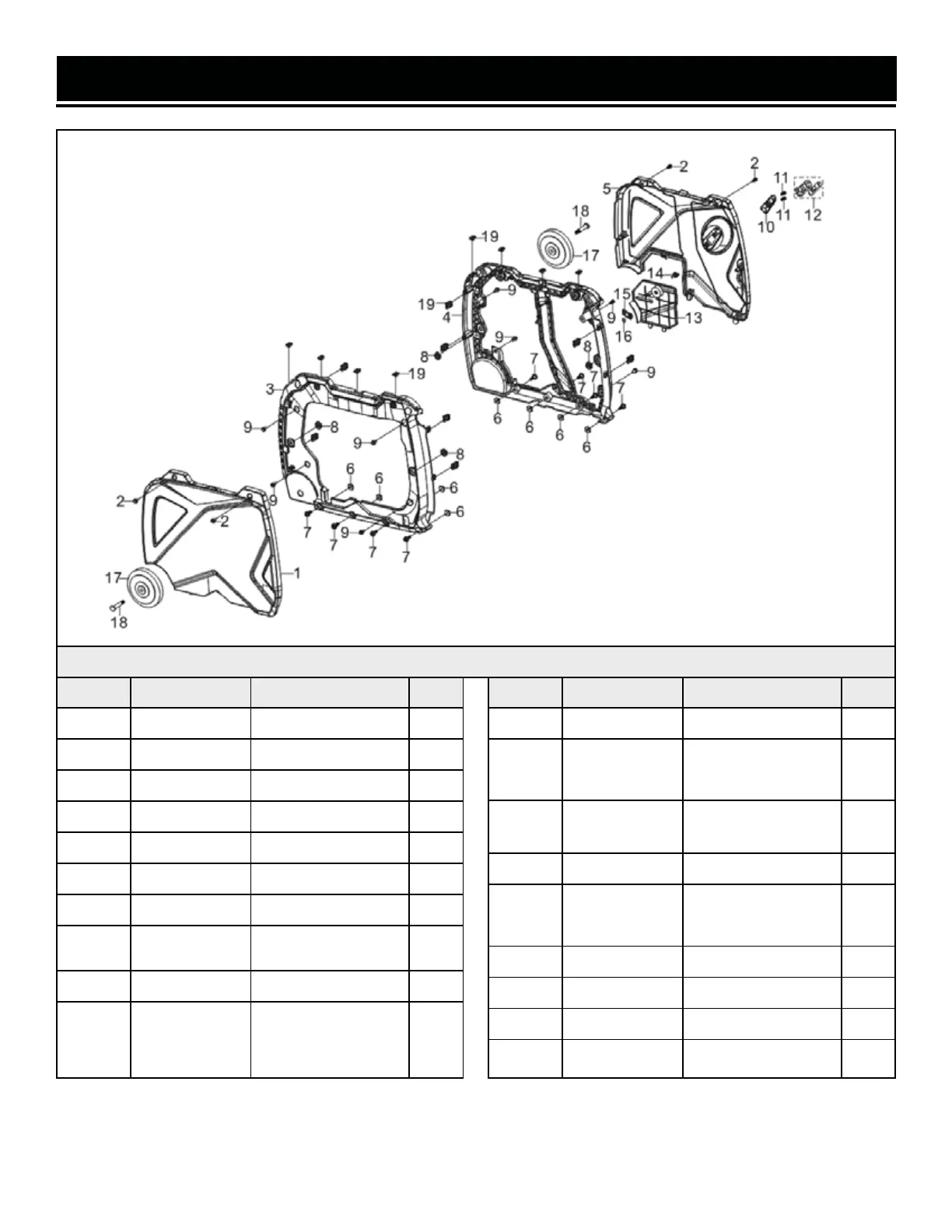

Fig. 16 - Side Covers
