MAINTENANCE
SPARK ARRESTER MAINTENANCE
It is recommended to inspect and clean the spark arrester every
200 hours of operation.
1. The spark arrester is located outside the muffler, which gets very
hot during operation. Allow the engine to cool completely before
servicing the spark arrester.
2. Remove the two screws holding the cover plate that retains the
end of the spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully clean and remove the carbon deposits from the spark
arrester screen with a wire brush. Replace the spark arrester if it is
damaged.
5. Reinstall the spark arrester in the muffler and secure it in place
with the screws.
Spark
Arrester
Cover Bolt
Air Filter
Cover
Air Filter
Element
AIR FILTER MAINTENANCE
Routine maintenance of the air filter helps maintain proper
airflow to the carburetor. Occasionally check that the air filter is
free of excessive dirt. The air filter should be checked every 50
hours of use. Refer to Recommended Maintenance Schedule in
Fig. 14.
1. Unscrew the cover bolt (Fig. 20) and remove the air filter
cover. Remove the air filter element from the casing.
2. Check and clean the foam air filter element as described in
step 3 below. Good elements can be washed, dried and reused.
If the element is damaged, replace it with a new one.
3. Wash the air filter element in warm soapy water. Squeeze it
thoroughly dry in a clean cloth. Saturate the element in clean
engine oil and squeeze off excess oil in a clean abosrbent cloth.
A small amount of oil in the element is normal and necessary for

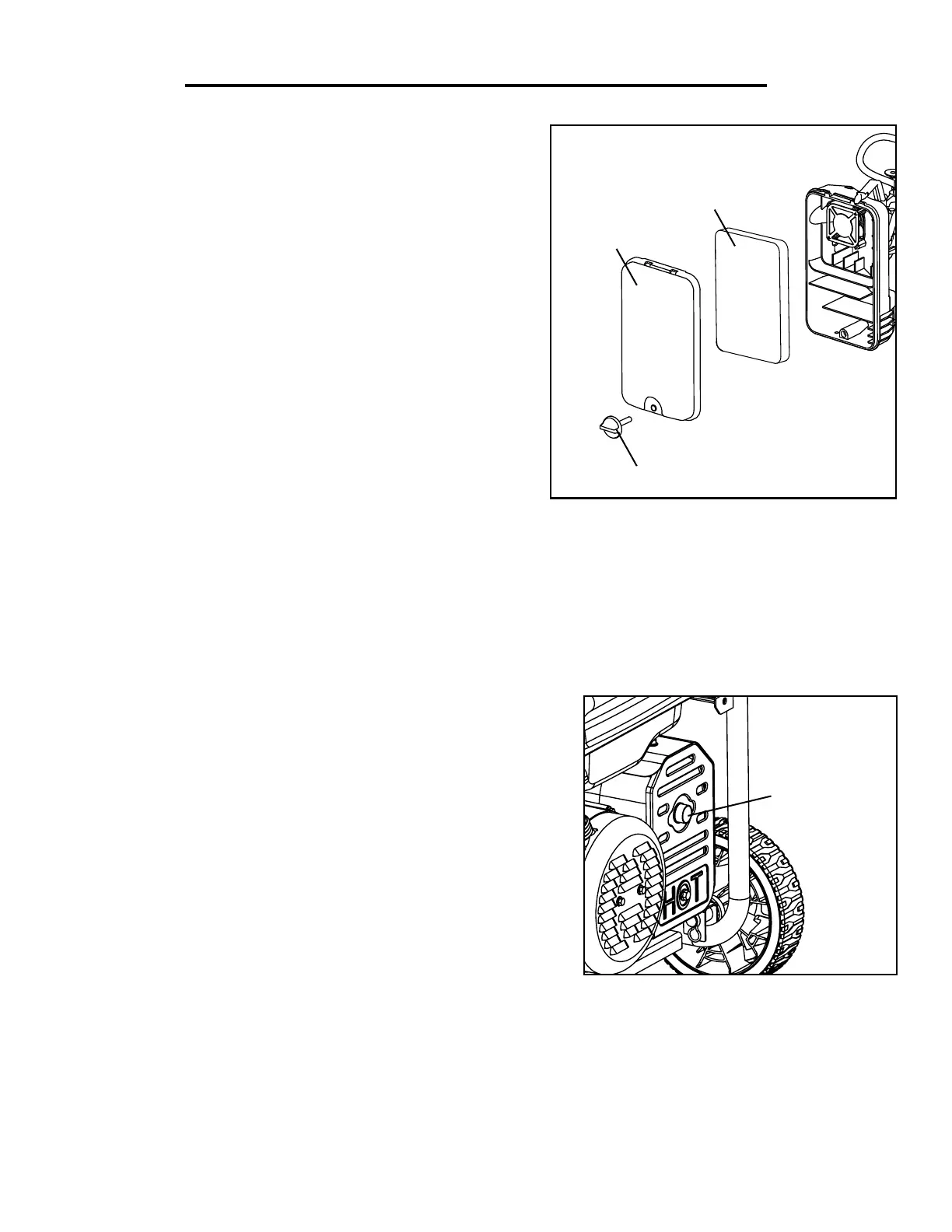

Fig. 20
Fig. 21
the engine to work properly.
4. Reinstall the air filter element. Close the cover and secure it with the cover bolt.
CAUTION: Running the engine with dirty, damaged or missing air filter element result in possible danger and
cause the engine to wear out prematurely.
