WARNING: Stop the machine immediately if there is excessive vibration or any other abnormal feed-
back (vibrations, noises, etc.). Have the machine checked by a qualified technician before operation.
OPERATING THE TILE SAW
1. Plug the power cord into the power supply.
2. To turn on the saw, push the power switch to ON (Fig.
U). The machine will now start. Always allow the disc
to reach full speed before performing any cutting opera-
tions. Make sure the workpiece is not contacting the disc
during startup.
3. To switch off the machine, push the power switch to
OFF. The disc will continue to rotate for a few seconds
after the machine has been switched off. Wait for the
disc to stop completely before removing the workpiece
or making any adjustments.
PREPARING FOR OPERATION
1. Make sure that the tile saw is securely placed on a
firm, level surface.
2. Check that all parts of the machine are firmly attached
and all safety guards are in place.
3. Refer to “Positioning of the Tile Saw” on page 8 to
arrange the power cord with enough length to create a
“drip loop” to reduce the risk of electric shock (Fig. T).
4. Check that the water is filled up to the maximum water
line marked on the inside of the tank.
CAUTION: Do not operate the tile saw with
too little or too much water in the water tank.
Keep the water level between the minimum and maxi-
mum level markings on the inside of the water tank.
4. After use, turn off the tool and disconnect the power supply. Place the water tank drain hole over a container large
enough to hold the water. Pull out the tank drain plug and drain the water. Clean the water tank.
OPERATION
WARNING: Before switching the tile saw on, make sure that you have read and understood all of the
safety instructions. Make sure the power cord is disconnected from the power source and the tool is
switch to OFF before assembly or making any adjustments.
11
ASSEMBLY
This tile saw must only be used only to cut tiles to a required size or shape. It shall
not be used to cut inflammable, explosive or toxic materials. Other uses for the
machine will lead to the damage of the machine and a series of dangers to the
operator. This tool is for private and household use, not for professional or
industrial ones. Only identical accessories as the ones provided with the tile saw
are authorized. Never use the appliance in the rain or other wet conditions.
PACKAGE CONTENTS
2
6
341
5
7
8
9
1
2
3
4
5
6
7
8
9
Tile saw (assembled)
Protective guard
Mitre cutting guide
Parallel guide
Metal bracket
Diamond disc
Spanners
Rubber feet
Water reservoir plug
1
1
1
1
1
1
2
4
1
PART DESCRIPTION QUANTITY

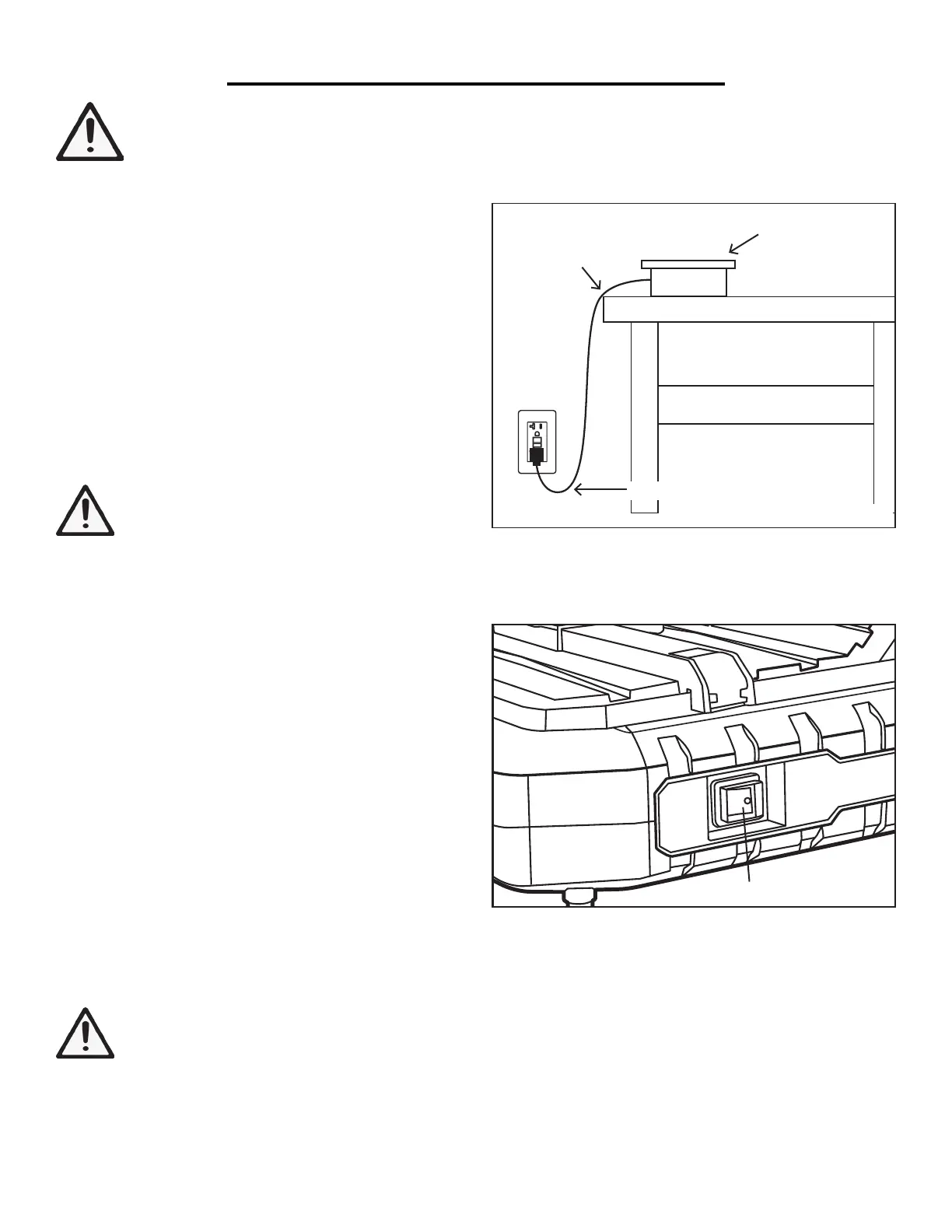

Fig. U
Fig. T
Drip Loop
Power Cord
Tile Saw
Power Switch
14
To Next Page
