Wen BA4664 User Manual

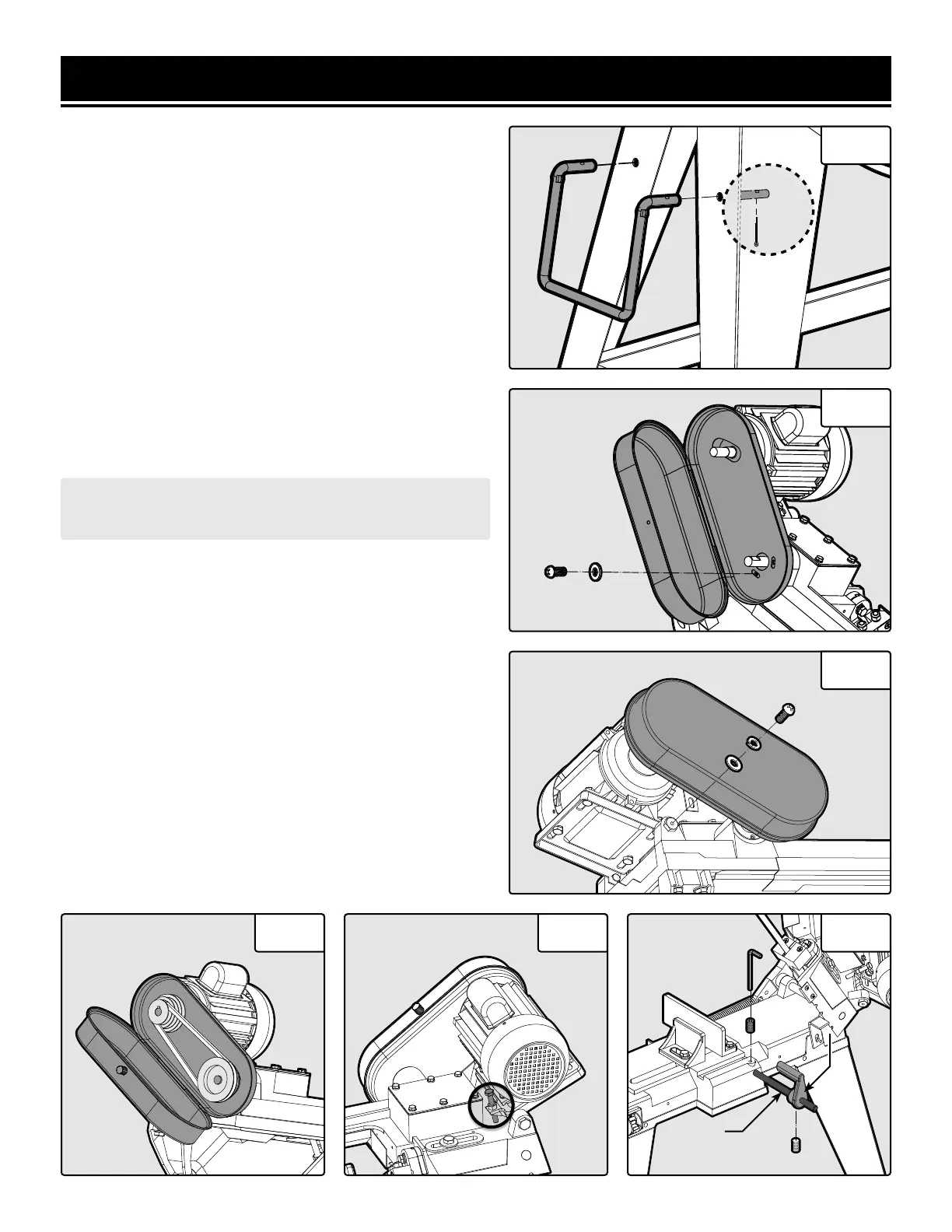

ASSEMBLING THE STAND (CONTINUED)
8. Locate the holes on the legs opposite the wheels. Insert
the transportation handle into the holes and secure it with
the cotter pins (Fig. 6).
9. Remove the screws and washers from where the belt
housing needs to be mounted. Place the belt housing over
the motor and gear shafts. Secure it with the removed
screws and washers (Fig. 7 & Fig. 8).
10. Open the pulley cover. Remove the key from the motor
shaft and clean the motor shaft. Install the key and motor
pulley to the motor shaft (Fig. 9).
11. Install the worm gear pulley on the shaft closest to the
gear box, opposite of the motor (Fig. 9).
ASSEMBLY & ADJUSTMENTS
NOTE: Make sure to pay attention to the direction of the
pulley’s installation.
12
12. Use a straight edge to check the alignment of the pulley
wheels and adjust them as needed (Fig. 9).
13. When the pulley wheels are aligned, tighten the set
screws on both pulleys and install the V-belt. The belt ten-
sion can be adjusted with the motor lock bolt (Fig. 10).
14. Slide the work stop shaft into the side of the bandsaw.
Lock it into place by tightening the upper set screw. See
Fig. 11.
15. Slide the work stop onto the end of the work stop shaft
and lock it into place with the lower set screw.
Fig. 6
Fig. 7
Fig. 8
Fig. 9 Fig. 10 Fig. 11
Shaft
Work StopWork Stop
