TO INSTALL THE FEET:
Slide two M6X40 bolts (32) through the foot support assembly (43) and the generator frame. Tighten with M6
nuts (45). Repeat for the other foot.
TO INSTALL THE WHEELS:
UNPACKING & ASSEMBLY

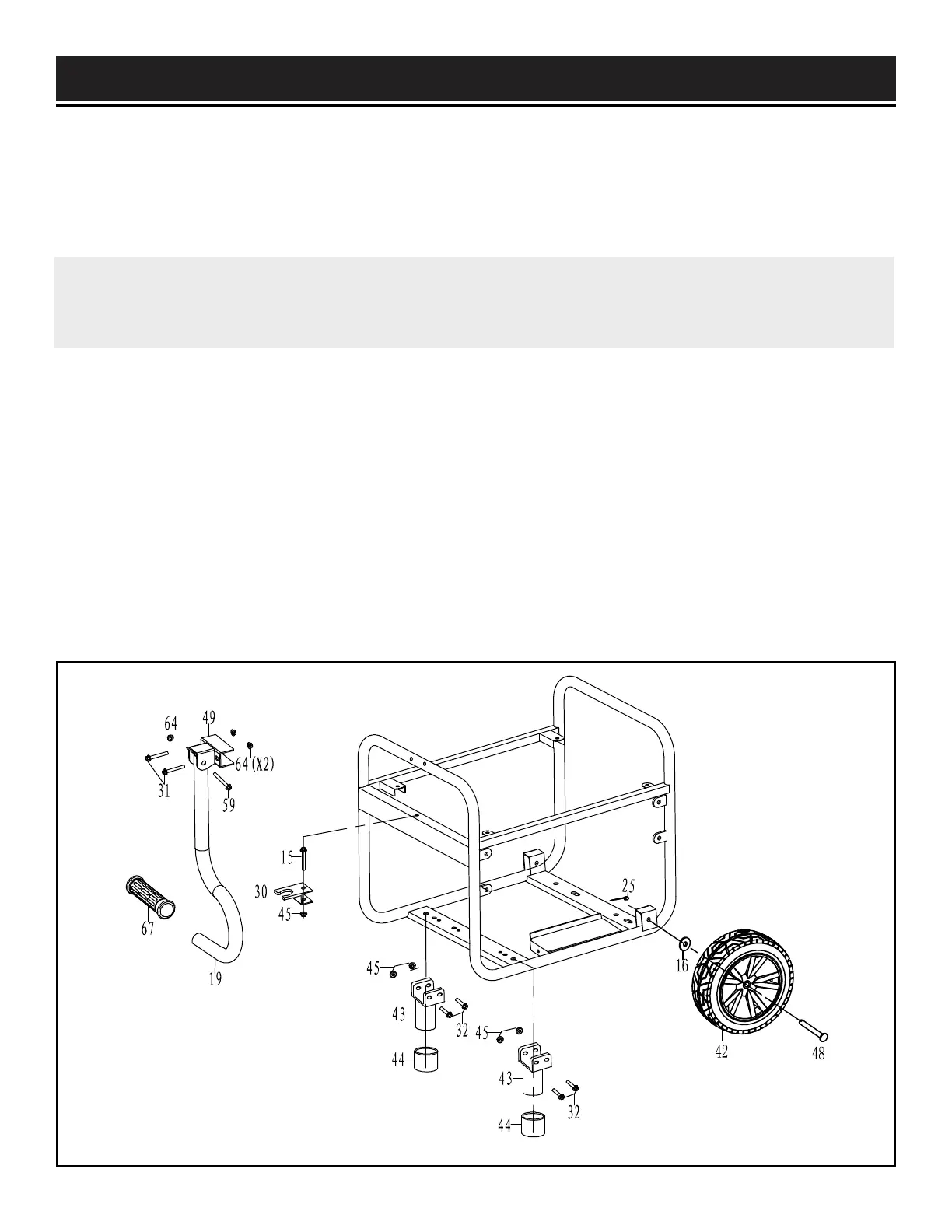

NOTE: Only the generator frame is shown to
maximize clarity for assembly.
11
NOTE: Connecting/disconnecting the battery’s negative terminal requires removing the right wheel. For your
convenience of assembly, the battery’s negative terminal has been pre-connectecd from the manufacturer.
Before installing the wheels, verify that the negative terminal of the battery has been connected securely.
Slide the wheel axle (48) through the wheel (42), flat washer (16), and wheel bracket on the frame. Insert a cotter
pin (25) through the hole on the end of the axle to keep the wheel in place. Repeat for the other wheel.
TO INSTALL THE HANDLE:
Slide the M8X35 bolts (31) through the handle connector (49) and the frame. Tighten with the M8 nuts (64). Slide
the handle bolt (59) through the handle connector (49) and the handle (19), and tighten with M8 nut (64).
Next, install the handle fixing clip (30). Insert the M6X55 bolt (15) through the frame and handle fixing clip (30)
and tighten with M6 nut (45).
