Wen DF875iX User Manual

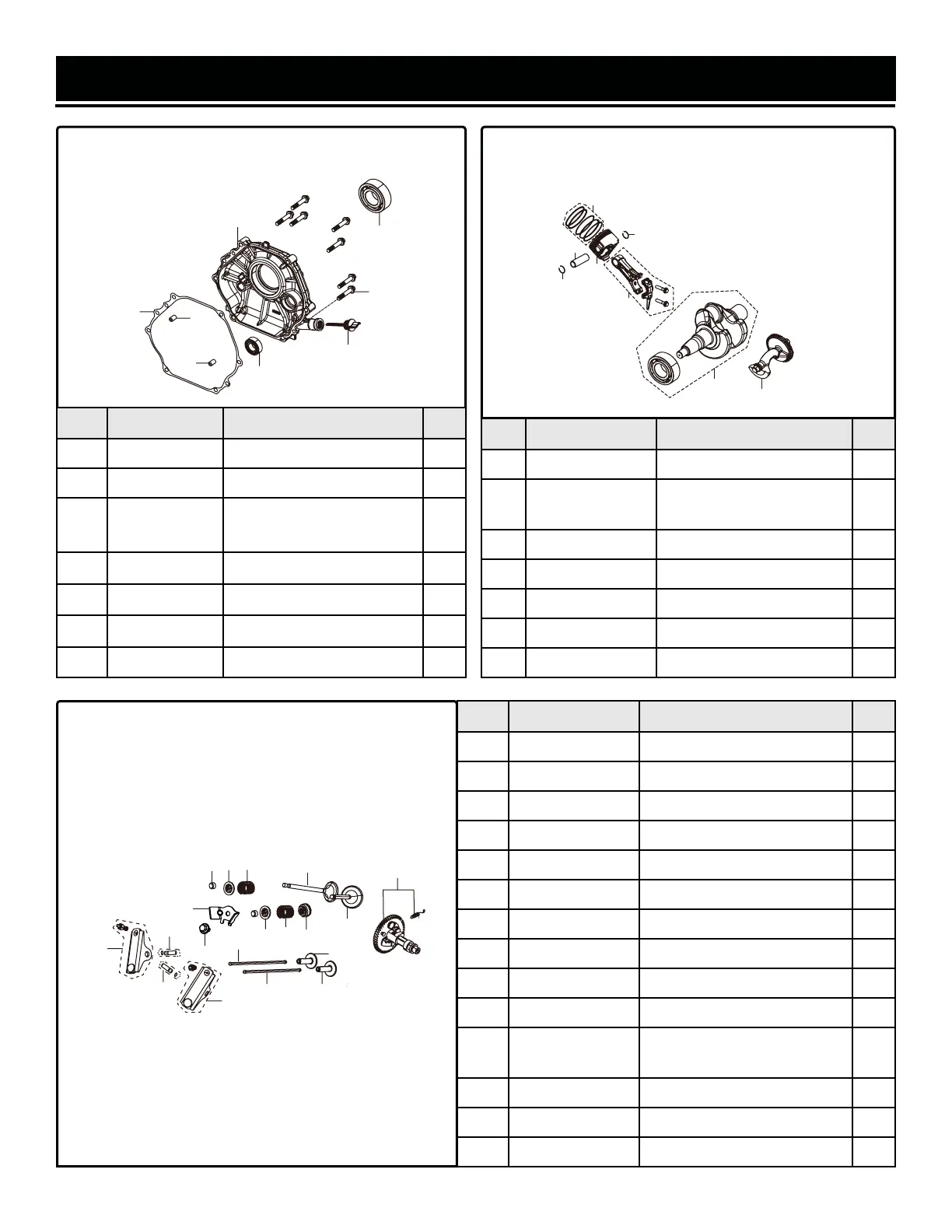

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 GN875i-0301 Crankcase Cover Gasket 1
3-2 GN875i-0302 Bearing, 6202P6 1
3-3 GN625i-0304
Oil Dipstick
Subassembly
1
3-4 GN875i-0304 Pin 2
3-5 GN875i-0305 Crankcase Cover 1
3-6 GN875i-0306 Bolt, M8x40 7
3-7 GN875i-0307 Bearing, 6207P53 1
ASSEMBLY 3 - CRANKCASE COVER
No. Part No. Description Qty.
4-1 GN875i-0401 Balance Shaft Assembly 1
4-2 GN875i-0402
Connecting Rod
Assembly
1
4-3 DF875iX-0403 Piston 1
4-4 GN875i-0404 Piston Pin 1
4-5 GN875i-0405 Piston Pin Clip 2
4-6 GN875i-0406 Piston Ring Set 1
4-7 GN875i-0407 Crankshaft Assembly 1
ASSEMBLY 4 - CRANKSHAFT,
CONNECTING ROD, BALANCING SHAFT
No. Part No. Description Qty.
5-1 DF875iX-0501 Camshaft Assembly 1
5-2 DF875iX-0502 Exhaust Valve 1
5-3 DF875iX-0503 Seal Guide 1
5-4 DF875iX-0504 Valve Spring 2
5-5 DF875iX-0505 Exhaust Valve Retainer 1
5-6 DF875iX-0506 Intake Valve Retainer 1
5-7 GN875i-0510 Valve Tappet 2
5-8 DF875iX-0508 Valve Lifter Subassembly 2
5-9 DF875iX-0509 Rocker Shaft Subassembly 2
5-10 DF875iX-0510 Valve Rocker 2
5-11 DF875iX-0511
Cylinder Head Cover Pin
Limit Plate
1
5-12 DF875iX-0512 Bolt, M6x12 1
5-13 DF875iX-0513 Valve Rotator 2
5-14 DF875iX-0514 Intake Valve 1
ASSEMBLY 5 - VALVE TRAIN,
CAMSHAFT SUBASSEMBLY
44
2
1
4
5
3
7
6
4
2
5
5
4
3
6
1
7
1
2
3
4
5
4
7
7
8
8
9
9
10
10
11
12
13
14
6
