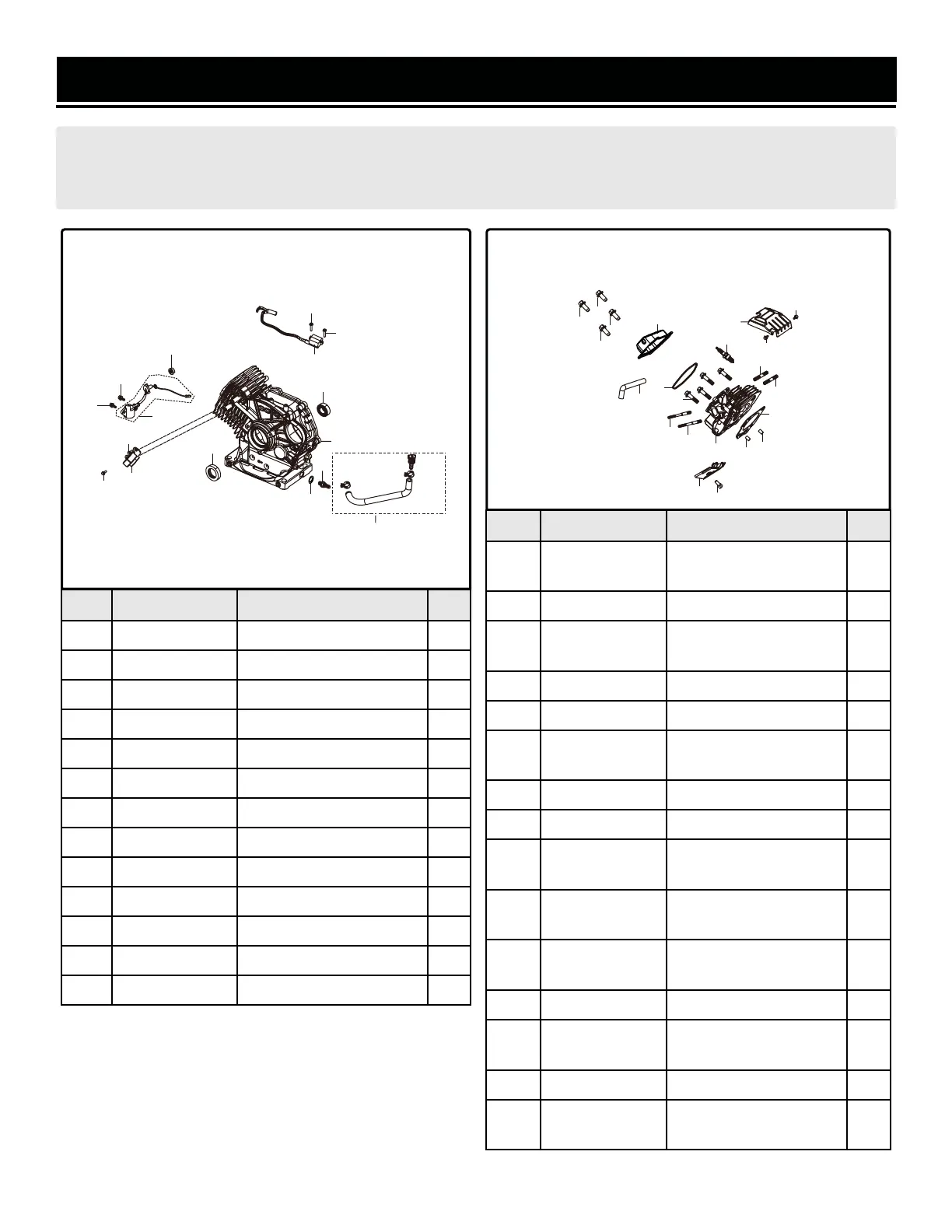

EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at
1-(800) 232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not
covered by the two-year warranty. Not all parts may be available for purchase.
No. Part No. Description Qty.
1-1 GN875i-0101 Crankcase 1
1-2 GN875i-0102 Bearing, 6202P6 1
1-3 GN875i-0103 Oil Seal 1
1-4 GN625i-0204 Flat Washer, 12mm 1
1-5 GN875i-0105 Oil Drain Hose Fitting 1
1-6 GN625i-0205 Oil Drain Hose 1
1-7 GN625i-0207 Engine Oil Sensor 1
1-8 GN625i-0208 Bolt, M6x16 2
1-9 GN875i-0109 Nut, M10 1
1-10 GN400i-0910 Bolt, M5x16 2
1-11 DF875iX-0111 Trigger 1
1-12 DF875iX-0112 Ignition Coil 1
1-13 GN400i-0111 Bolt, M5x20 2
ASSEMBLY 1 - CRANKCASE
No. Part No. Description Qty.
2-1 GN875i-0201
Cylinder Body Shroud,
Primary
1
2-2 56200-1202 Bolt, M6x12 2
2-3 GN625i-0109
Cylinder Head Bolt,
M10x80
4
2-4 GN625i-0110 Pin 2
2-5 DF875iX-0205 Cylinder Head Gasket 1
2-6 DF875iX-0206
Cylinder Head
Subassembly
1
2-7 56310i-0109 Bolt, M8x34 2
2-8 GN875i-0208 Stud Bolt, M6/M8x110 2
2-9 GN875i-0209
Cylinder Body Shroud,
Secondary
1
2-10 DF875iX-0210
Cylinder Head Cover
Gasket
1
2-11 DF875iX-0211
Cylinder Head Cover
Bolt (M6x14)
4
2-12 DF875iX-0212 Temperature Sensor 1
2-13 DF875iX-0213
Cylinder Head Cover
Subassembly
1
2-14 DF875iX-0214 Breather Tube 1
2-15 DF875iX-0215
Spark Plug (Torch
F7RTC / NGK BPR7ES)
1
ASSEMBLY 2 - CYLINDER HEAD
SUBASSEMBLY, SPARK PLUG
43
1
3
5
6
4
2
7
8
8
9
11
10
10
12
13
13
11
13
5
15
6
7
8
3
14
1
2
2
4
7
8
9
4
10
11
11
11
12
