Wen DF875iX User Manual

No. Part No. Description Qty.
9-1 DF875iX-0901 Rotor 1
9-2 DF875iX-0902 Stator 1
9-3 GN625i-0214 Wiring Clamp 1
9-4 GN875i-0904 Bolt, M5x10 1
9-5 GN625i-1101
Flywheel Nut, M16-
1.5
1
9-6 GN875i-0906 Wiring Sheath 1
9-7 GN875i-0907 Wiring Clip 2
9-8 GN625i-1103 Starter Pulley 1
9-9 56200-1202 Bolt, M6x12 3
9-10 56200-1202 Bolt, M6x12 4
9-11 DF875iX-0911 Starter Pulley Seat 1
9-12 DF875iX-0912 Impeller 1
9-13 GN875i-0913 Bolt, M6x65 3
9-14 GN875i-0914
Starter Motor
Assembly
1
9-15 GN875i-0915 Bolt, M8x25 2

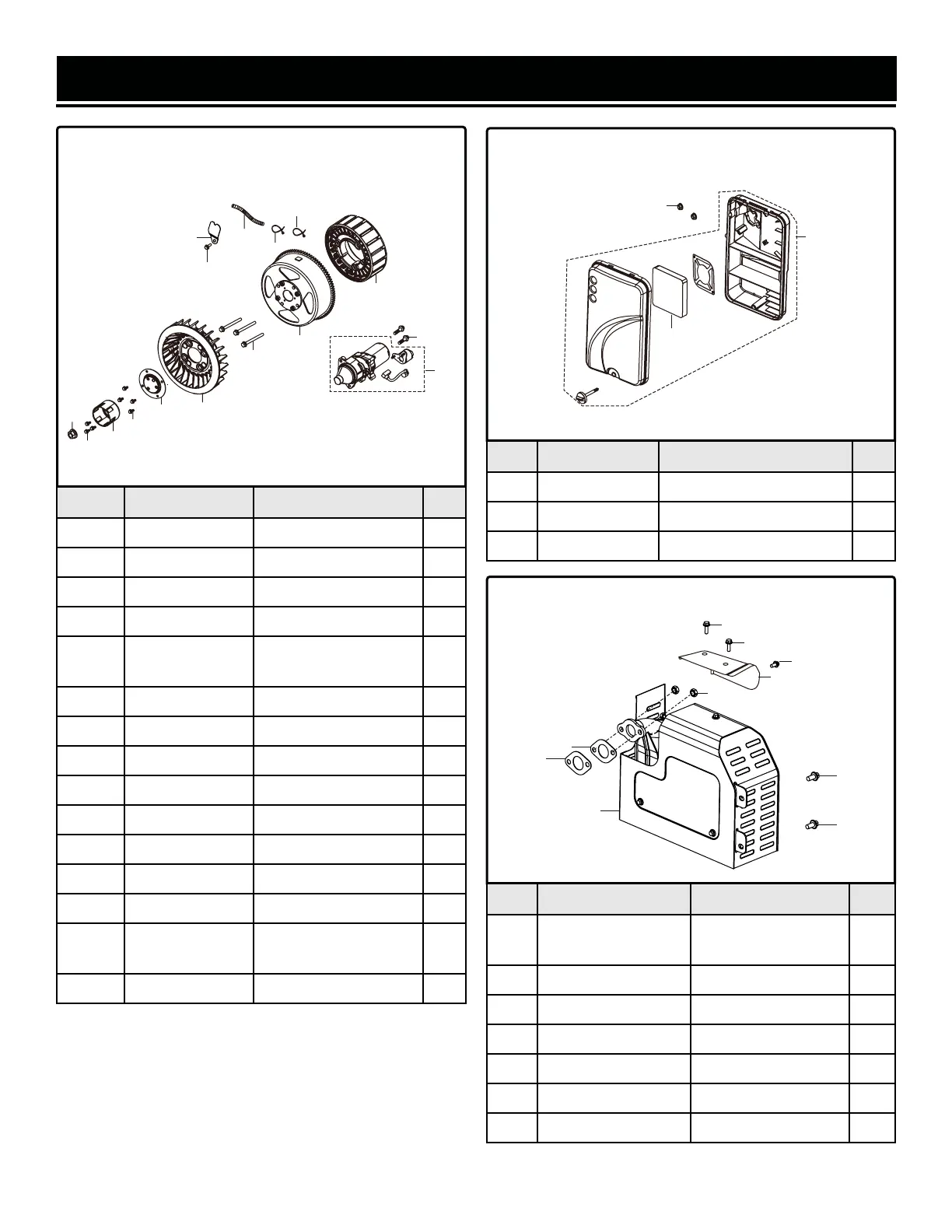

ASSEMBLY 9 - FLYWHEEL, IMPELLER,
STARTER PULLEY
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
10-1 DF875iX-1001 Air Filter Assembly 1
10-2 56200-0506 Flanged Hex Nut, M6 2
10-3 GN875i-1003 Air Filter Element 1
ASSEMBLY 10 - AIR FILTER
ASSEMBLY 11 - MUFFLER ASSEMBLY
No. Part No. Description Qty.
11-1 GN625i-1205
Outer Muffler
Cover
1
11-2 GN625i-1206 Bolt, M6x12 3
11-3 GN400i-1108 Nut, M8 2
11-4 GN625i-1202 Muffler Gasket 2
11-5 GN875i-1105 Muffler Assembly 1
11-6 GN625i-1203 Bolt, M8x16 2
N.P. GN625i-1201.1 Spark Arrestor 1
46
9
10
5
11
8
12
13
1
2
3
4
6
7
7
14
15
2
3
1
5
4
6
6
3
1
2
4
2
2
