Wen DF875iX User Manual

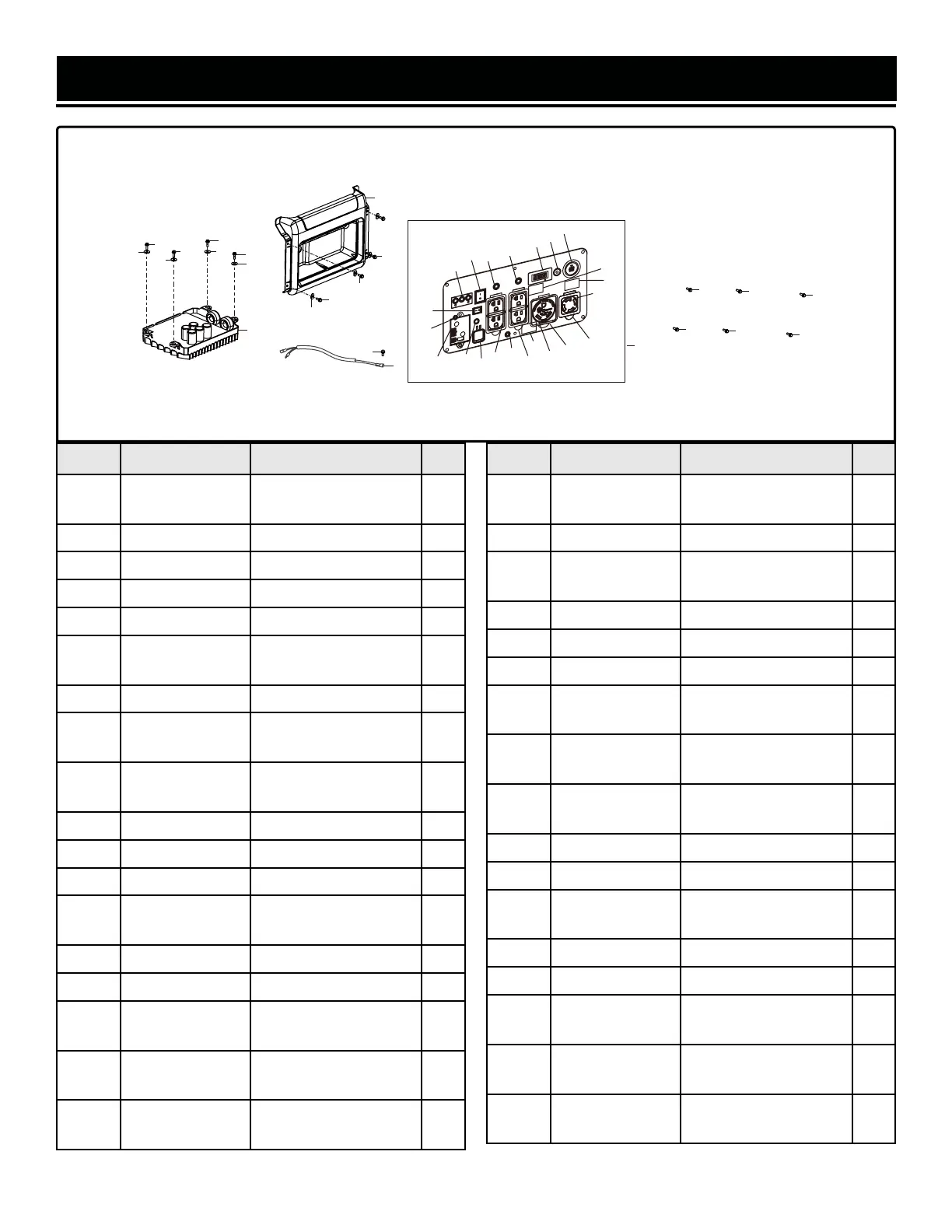

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1
DF875iX-
1401ASM
Control Panel
Assembly
1
14-2 GN625i-1502 Bolt, M6x16 4
14-3 GN625i-1503 Bolt, M6x20 4
14-4 GN625i-1504 Flat Washer, 6mm 4
14-5 GN875i-1405 Inverter 1
14-6 GN625i-1506
Screw & Washer,
M5x10
6
14-7 GN625i-1507 Panel Seat 1
14-8 DF875iX-1408
Indicator Light
Assembly
1
14-9 DF875iX-1409
Engine Start/Stop
Button
1
14-10 GN625i-1510 AC Breaker, 20A 2
14-11 DF875iX-1411 Multi-Meter 1
14-12 DF875iX-1412 Battery Switch 1
14-13 DF875iX-1413
CO Sensor LED
Indicator
1
14-14 GN400i-1413 Grounding Nut 1
14-15 GN625i-1515 USB Outlet Assembly 1
14-16 56380i-1421
NEMA 5-20R Duplex
Outlet
2
14-17 GN625i-1516
NEMA 5-20R Outlet
Cover
2
14-18 GN400i-1418B
NEMA TT-30R RV
Outlet
1
ASSEMBLY 14 - CONTROL PANEL
No. Part No. Description Qty.
14-19 GN625i-1518
NEMA TT-30R Outlet
Cover
1
14-20 56380i-1422 ECO-Mode Switch 1
14-21 GN625i-1521
NEMA L14-30R Outlet
Cover
1
14-22 DF875iX-1422 Rectifier Bridge 1
14-23 DF875iX-1423 Remote Pairing Button 1
14-24 GN625i-1524 NEMA L14-30R Outlet 1
14-25 DF875iX-1425
CO Sensor Engine
Control Module
1
14-26 DF875iX-1426
Remote Control
Receiver Module
1
14-27 DF875iX-1427
Control Panel Wiring
Harness
1
14-28 DF875iX-1428 Hex Bolt, M6x10 1
14-29 DF875iX-1429 Large Washer, 6mm 4
14-30 DF875iX-1430
Battery Charger
Module
1
14-31 DF875iX-1431 Reset Button 1
N.P. DF875iX-1432 Remote Control 1
N.P. DF875iX-1433
Primary LPG Regulator
Hose Assembly
1
N.P. DF875iX-HA36
High Altitude Kit, 3000
- 6000 ft
1
N.P. DF875iX-HA68
High Altitude Kit, 6000
- 8000 ft
1
49
2
2
3
4
5
3
4
3
4
3
4
7
8
9
10
10
11
24
21
19
18
17
16
15
20
14
13
12
25
6
6
6
6
6
6
2
1
26
27
28
29
23
30
31
22
