Wen GN400iX

3736
No. Part No. Description Qty.
10-1 GN400i-1001 Air Cleaner Seal Gasket 1
10-2 GN400i-1002 Air Cleaner Seal Gasket 1
10-3 56200-0506 Hex Flange Nut 2
10-4 56310i-1420 Bolt 1
No. Part No. Description Qty.
9-1 56310i-1101 Flywheel Nut 1
9-2 56200-0706 Bolt 3
9-3 GN400i-0903 Starter Pulley 1
9-4 56200-1202 Hex Bolt 4
9-5 56380i-0705 Starter Cup Seat 1
9-6 GN400i-0906 Impeller 1
9-7 56310i-1103 Hex Cap Screw 3
9-8 GN400i-0908
Magneto Roller Case
Subassembly
1
9-9 GN400iX-0909
Magneto Stator
Subassembly
1
9-10 GN400i-0910 Trigger Assembly 1
9-11 56310i-1106 Bolt 2
9-12 GN400IX-0912 Flat Washer 3

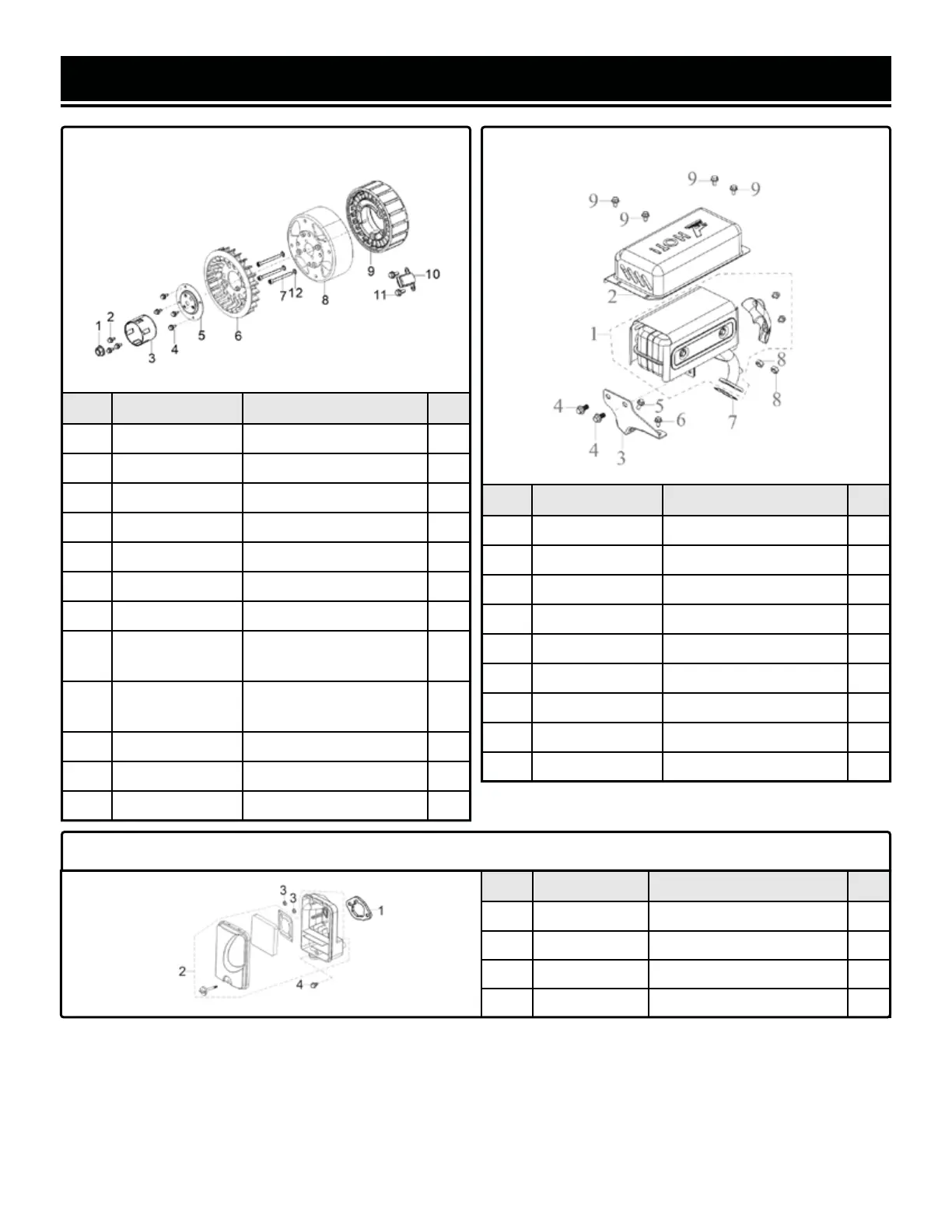

EXPLODED VIEW & PARTS LIST
ASSEMBLY 9 - FLYWHEEL
No. Part No. Description Qty.
11-1 GN400i-1101 Muffler Assembly 1
11-2 GN400i-1102 Muffler Outer Cover 1
11-3 GN400i-1103 Muffler Bracket 1
11-4 GN400i-1104 Hex Flange Bolt 2
11-5 56200-1202 Hex Flange Face Bolt 1
11-6 GN400i-1106 Hex Flange Bevel Bolt 1
11-7 GN400i-1107 Exhaust Outlet Gasket 1
11-8 GN400i-1108 Hex Nut 2
11-9 56380i-0313 Hex Flange Face Bolt 4
ASSEMBLY 11 - MUFFLER
ASSEMBLY 10 - AIR FILTER
