Wen GN400iX

3736

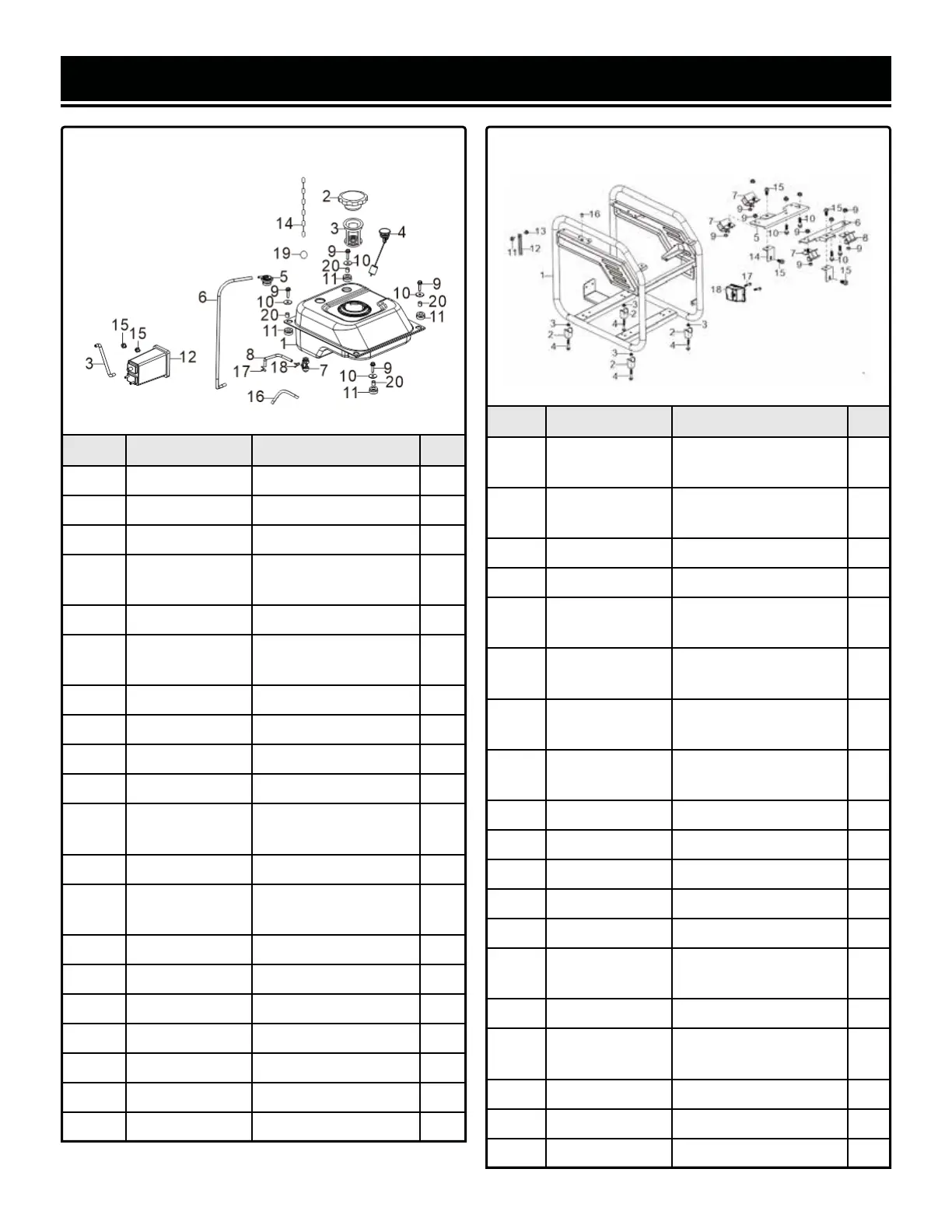

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
12-1 GN400i-1201 Fuel Tanke 1
12-2 GN400i-1202 Fuel Tank Cover 1
12-3 GN400i-1203 Fuel Strainer 1
12-4 GN400i-1204
Oil Leveler
Assembly
1
12-5 GN400i-1205 One-way Valve 1
12-6 GN400i-1206B
Fuel Steam Rubber
Hose
1
12-7 GN400i-1207 Fuel Cock Assembly 1
12-8 GN400i-1208 Fuel Tube 1
12-9 GN400i-1209 Bolt 4
12-10 GN400i-1210 Flat Washer 4
12-11 56380i-1207
Fuel Tank Rubber
Sleeve
4
12-12 GN400i-1212 Fuel Steam Collector 1
12-13 GN400i-1213
Air Cleaner Rubber
Hose
1
12-14 GN400i-1214 Fuel Cap Chain 1
12-15 GN400i-1215 Bolt 2
12-16 GN400i-1216 Rubber Jacket 1
12-17 GN400i-1217 Pipe Clamp 1
12-18 GN400i-1218 Collar 1
12-19 GN400iX-1219 Fuel Cap Chain Clip 1
12-20 GN400I-1220 Bushing 4
ASSEMBLY 12 - FUEL TANK
No. Part No. Description Qty.
13-1 GN400iX-1301
Engine Frame
Assembly
1
13-2 GN400i-1302
Engine Frame Shock
Absorber Seat
4
13-3 GN400i-1303 Hex Flange Nut 4
13-4 GN400i-1304 Hex Flange Bolt 4
13-5 GN400i-1305
Engine Fixed Bottom
Plate, Back
1
13-6 GN400i-1306
Engine Fixed Bottom
Plate, Front
1
13-7 56310i-1409
Enginer Frame Left
Cushion
3
13-8 56310i-1411
Enginer Frame Right
Cushion
1
13-9 56310i-1404 Hex Flange Nut 11
13-10 GN400i-1310 Hex Flange Bolt 4
13-11 GN400i-1311 Bolt 1
13-12 GN400i-1312 Wire Clip 1
13-13 GN400i-1313 Nut 1
13-14 GN400i-1314
Transportation
Support Block
2
13-15 GN400i-1315 Hex Flange Bolt 4
13-16 GN400i-1316
Protective Rubber
Sleeve
1
13-17 GN400iX-1317 Pan Head Screw 2
13-18 GN625iX-1430 CO Sensor Module 1
13-19 GN400iX-1319 Thermal Baffle 1
ASSEMBLY 13 - FRAME
