Wen GN400iX

3938

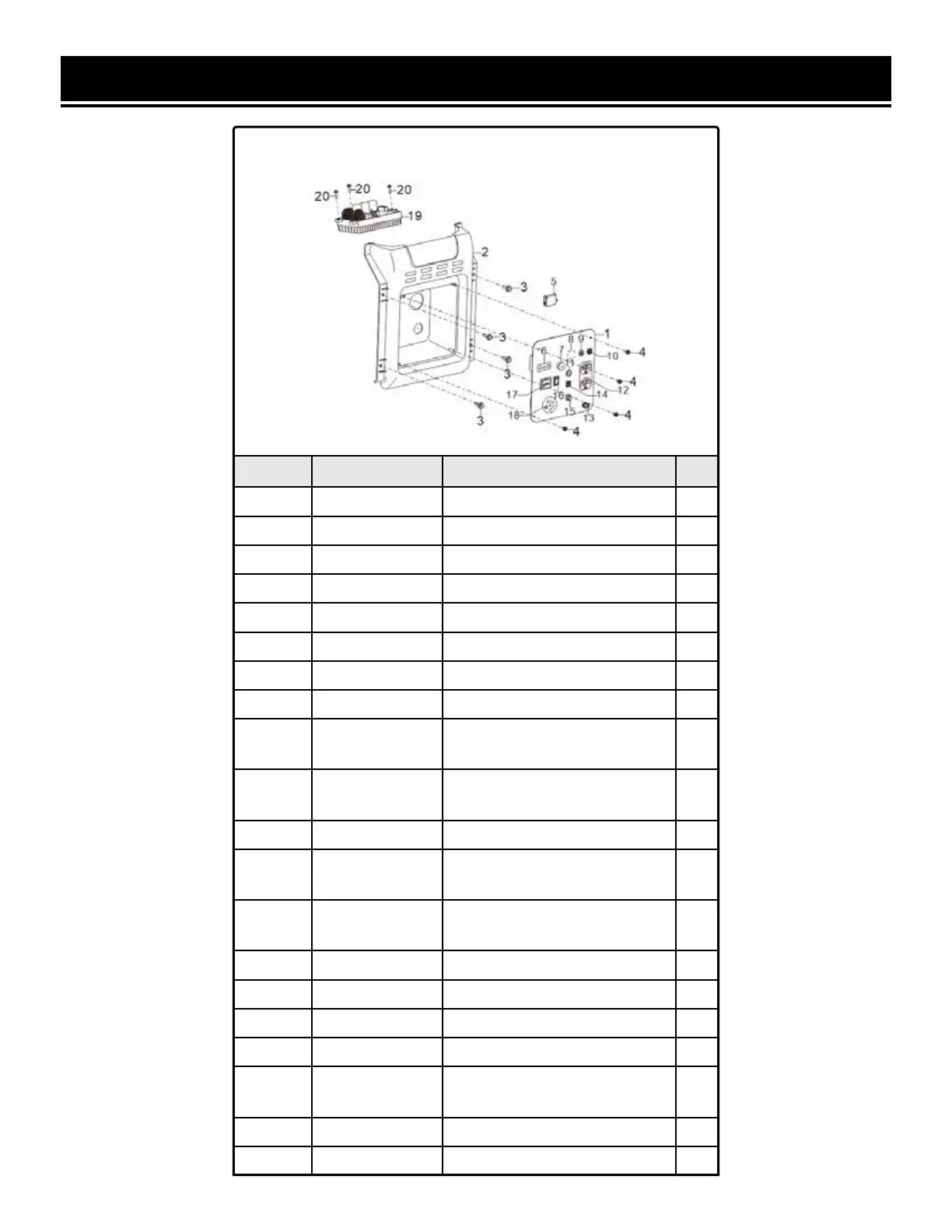

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
14-1 GN400iX-1401 Control Panel Assembly 1
14-2 GN400i-1402 Panel Seat 1
14-3 GN400i-1403 Bolt 4
14-4 GN400i-1404 Screw 4
14-5 GN625iX-1430 CO Sensor Module 1
14-6 GN400i-1406 Ignitor 1
14-7 GN400i-1407 Choke 1
14-8 GN400i-1408 Rectification Bridge 1
14-9 56380i-1423
Power Supply Socket
Subassembly
1
14-10 56380i-1424
Power Supply Socket
Subassembly
1
14-11 GN400i-1411 Resetting Button 1
14-12 56380i-1421
Power Supply Socket
Subassembly
1
14-13 GN400i-1413
Grouding Terminal
Subassembly
1
14-14 GN400i-1414 DC Socket Subassembly 1
14-15 GN400i-1415 Overcurrent Protector 1
14-16 56380i-1422 Switch Subassembly 1
14-17 GN400i-1417 Switch Subassembly 1
14-18 GN400i-1418B
Power Supply Socket
Subassembly
1
14-19 GN400i-1419 Inverter 1
14-20 GN400i-1420 Bolt 3
ASSEMBLY 14 - CONTROL PANEL
