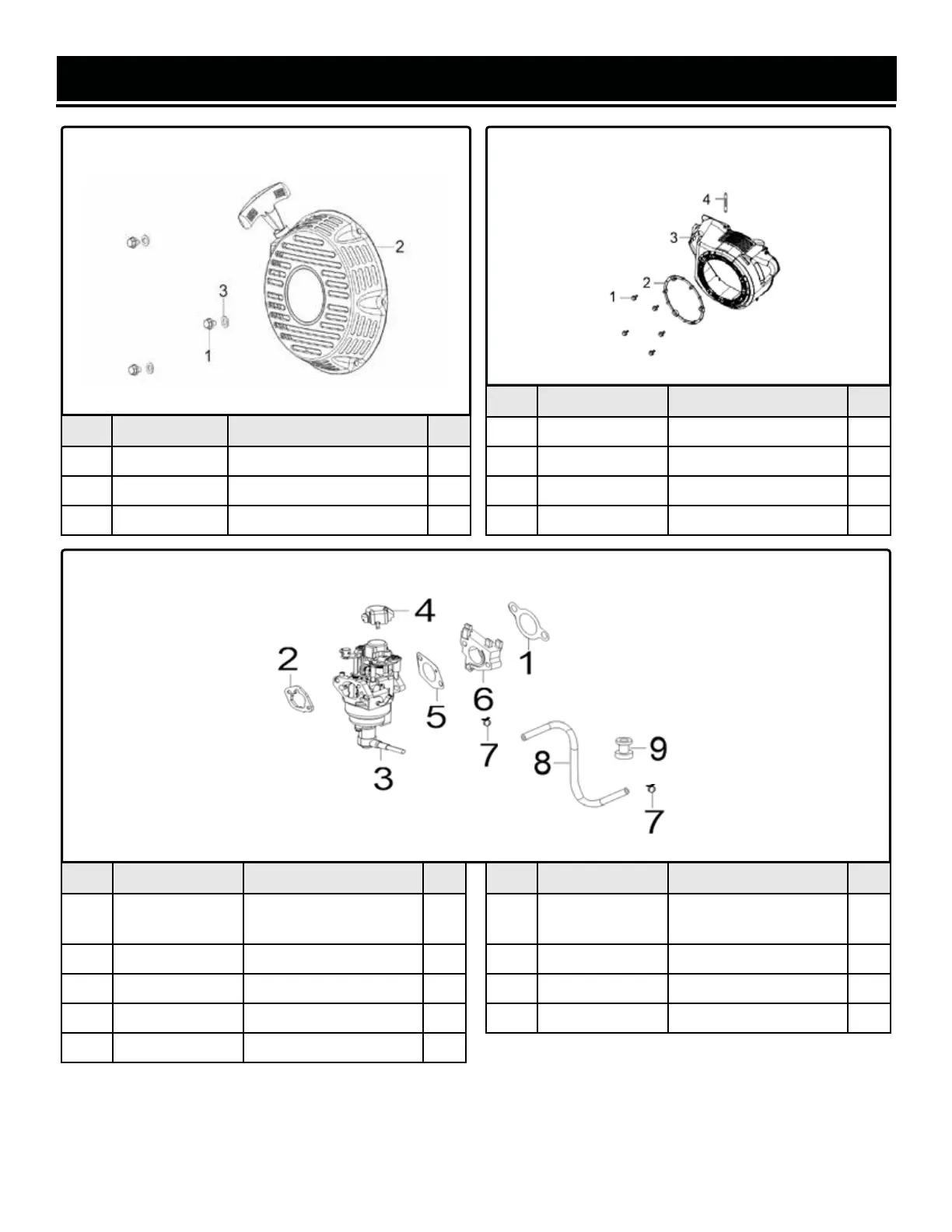

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
6-1 GN625i-0701 Bolt, M6x20 3
6-2 GN875i-0602 Recoil Starter Assembly 1
6-3 GN625i-0703 Flat Washer, 6mm 3
ASSEMBLY 6 - RECOIL STARTER
No. Part No. Description Qty.
7-1 56200-1202 Bolt, M6x12 5
7-2 GN625i-0802 Retaining Ring 1
7-3 GN875i-0703 Shroud 1
7-4 GN400i-0703 Clip 1
ASSEMBLY 7 - SHROUD, LOWER SHIELD
No. Part No. Description Qty.
8-1 GN875i-0801
Carburetor Insulator
Gasket
1
8-2 GN625i-0901 Air Filter Gasket 1
8-3 GN875i-0803 Carburetor Assembly 1
8-4 56200-0103 Cap 1
8-5 GN875i-0805 Carburetor Gasket 1
ASSEMBLY 8 - CARBURETOR
No. Part No. Description Qty.
8-6 GN875i-0806
Carburetor Insulator
Plate
1
8-7 GN625i-0907 Hose Clamp 2
8-8 GN625i-0908 Fuel Tube 1
8-9 GN875i-0809 Rubber Bushing 1
37
