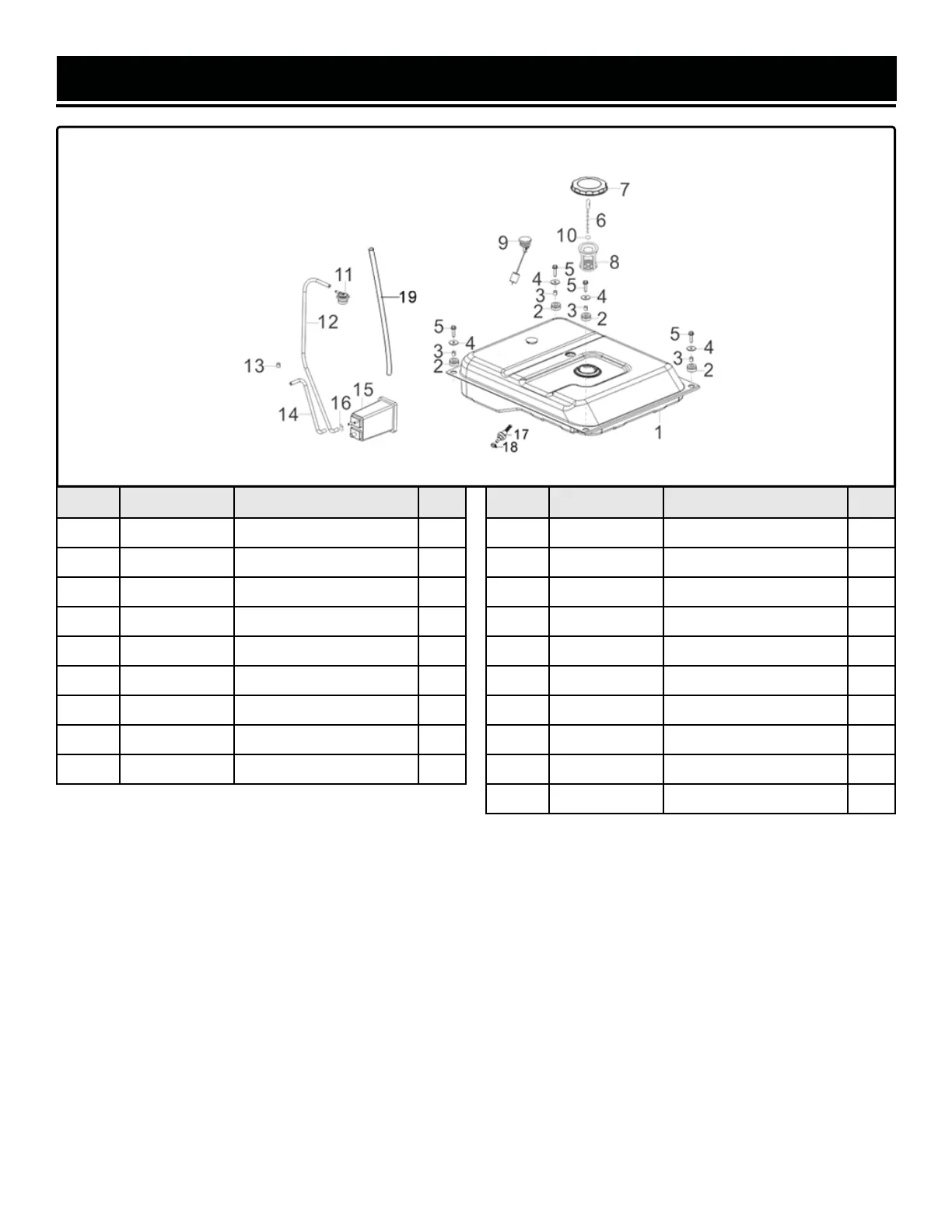

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
12-1 GN625i-1301 Fuel Tank 1
12-2 56380i-1207 Fuel Tank Damper 4
12-3 GN625i-1303 Bushing 4
12-4 GN625i-1304 Flat Washer, 6mm 4
12-5 GN625i-1305 Bolt, M6x25 4
12-6 GN400i-1214 Fuel Tank Cap Chain 1
12-7 GN400i-1202 Fuel Tank Cap 1
12-8 GN875i-1208 Fuel Strainer 1
12-9 GN400i-1204 Fuel Gauge Assembly 1
ASSEMBLY 12 - FUEL TANK
No. Part No. Description Qty.
12-10 GN625i-1310 Fuel Tank Chain Clip 1
12-11 GN400i-1205 Breather Valve 1
12-12 GN875i-1212 Breather Hose 1
12-13 GN400i-1316 Rubber Cover 1
12-14 GN875i-1214 Air Filter Hose 1
12-15 GN625i-1315 Carbon Tank 1
12-16 GN625i-1316 Hose Clamp A 1
12-17 GN625i-1317 Fuel Tank Outlet 1
12-18 GN625i-1318 Hose Clamp B 1
12-19 GN625i-1319 Rubber Cover 1
