Wen GN875i

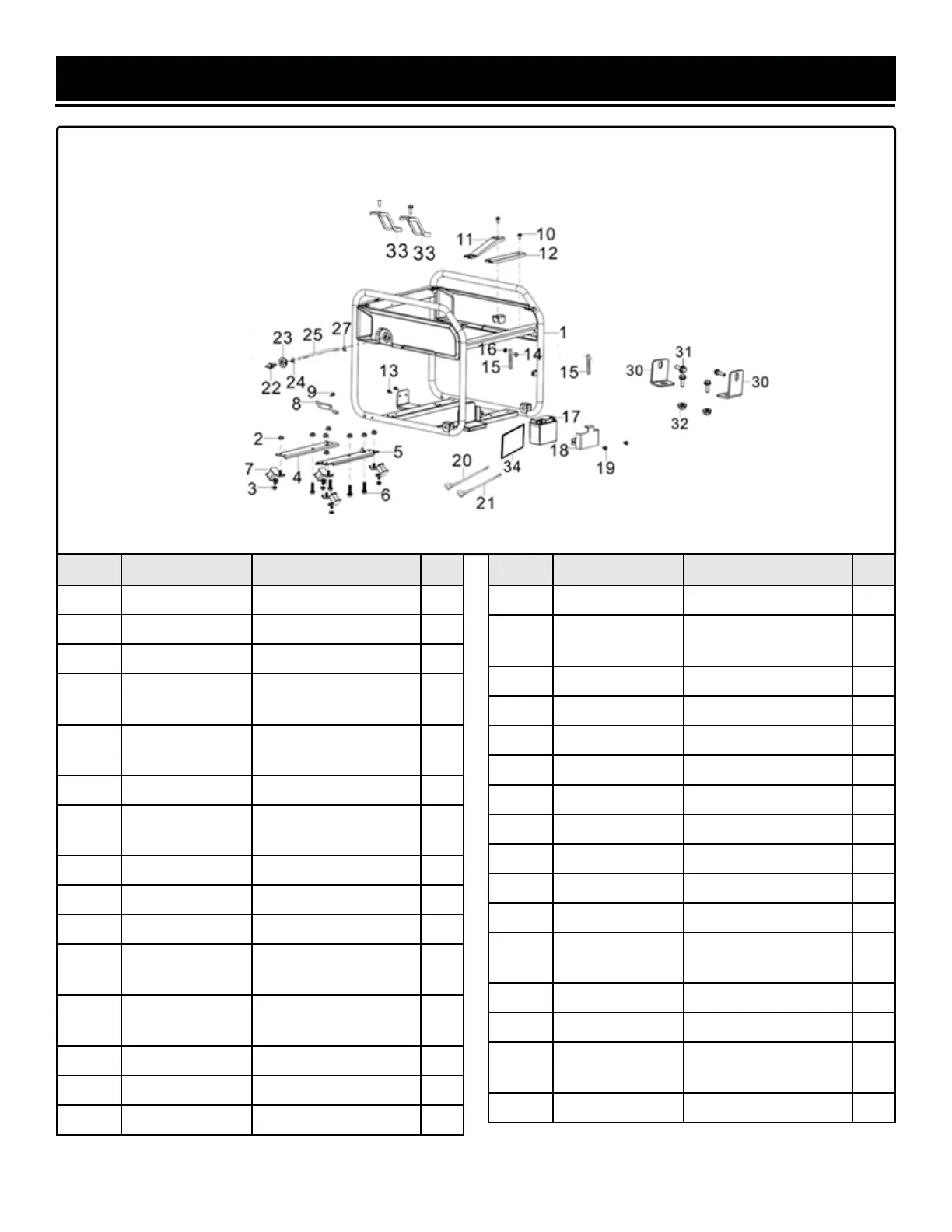

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
13-1 GN875i-1301 Frame Assembly 1
13-2 GN625i-1402 Nut, M10-1.25 8
13-3 56310i-1404 Nut, M8 4
13-4 GN875i-1304
Engine Support
Bracket 1
1
13-5 GN875i-1305
Engine Support
Bracket 2
1
13-6 GN625i-1406 Bolt, M10-1.25x40 4
13-7 GN875i-1307
Engine Frame
Damper
4
13-8 GN875i-1308 Air Filter Support 1
13-9 56200-1202 Bolt, M6x12 1
13-10 56200-1202 Bolt, M6x12 4
13-11 GN875i-1311
Inverter Support
Bracket 1
1
13-12 GN875i-1312
Inverter Support
Bracket 2
1
13-13 56200-0706 Bolt, M6x10 2
13-14 GN400i-1311 Bolt, M6x8 1
13-15 GN625i-1415 Cllp 2
ASSEMBLY 13 - FRAME
No. Part No. Description Qty.
13-16 GN400i-1313 Nut, M6 1
13-17 56380i-1304
Battery (Li-ion, 12V,
1.6Ah)
1
13-18 GN875i-1318 Battery Clamp 1
13-19 56200-1202 Bolt, M6x12 2
13-20 GN875i-1320 Anode Wire 1
13-21 GN875i-1321 Cathode Wire 1
13-22 GN625i-1422 Fuel Valve 1
13-23 GN625i-1423 Fuel Valve Seat 1
13-24 GN625i-1424 Clamp A 1
13-25 GN625i-1425 Fuel Hose A 1
13-27 GN625i-1427 Clamp B 1
13-30 GN625i-1430
Shipping Bracket
(Red)
2
13-31 GN400i-1104 Bolt, M8x16 4
13-32 GN625i-1432 Nut, M8 2
13-33 GN875i-1333
Inverter Support
Bracket 3
2
13-34 GN875i-1334 Insulator Plate 1
