EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
8-01 TT0811-801 Carriage bolt M6x25 1
8-02 TT0811-802 Saw blade cover 1
8-03 TT0811-803 E ring 1
8-04 TT0811-804 Wrench B 1
8-05 TT0811-805 Wrench A 1
No. Part No. Description Qty.
8-06 TT0811-806 Wing nut M6 1
8-07 TT0811-807 Lower blade guard 1
8-08 TT0811-808 Washer 2
8-09 TT0811-809 Self-tapping screws 1

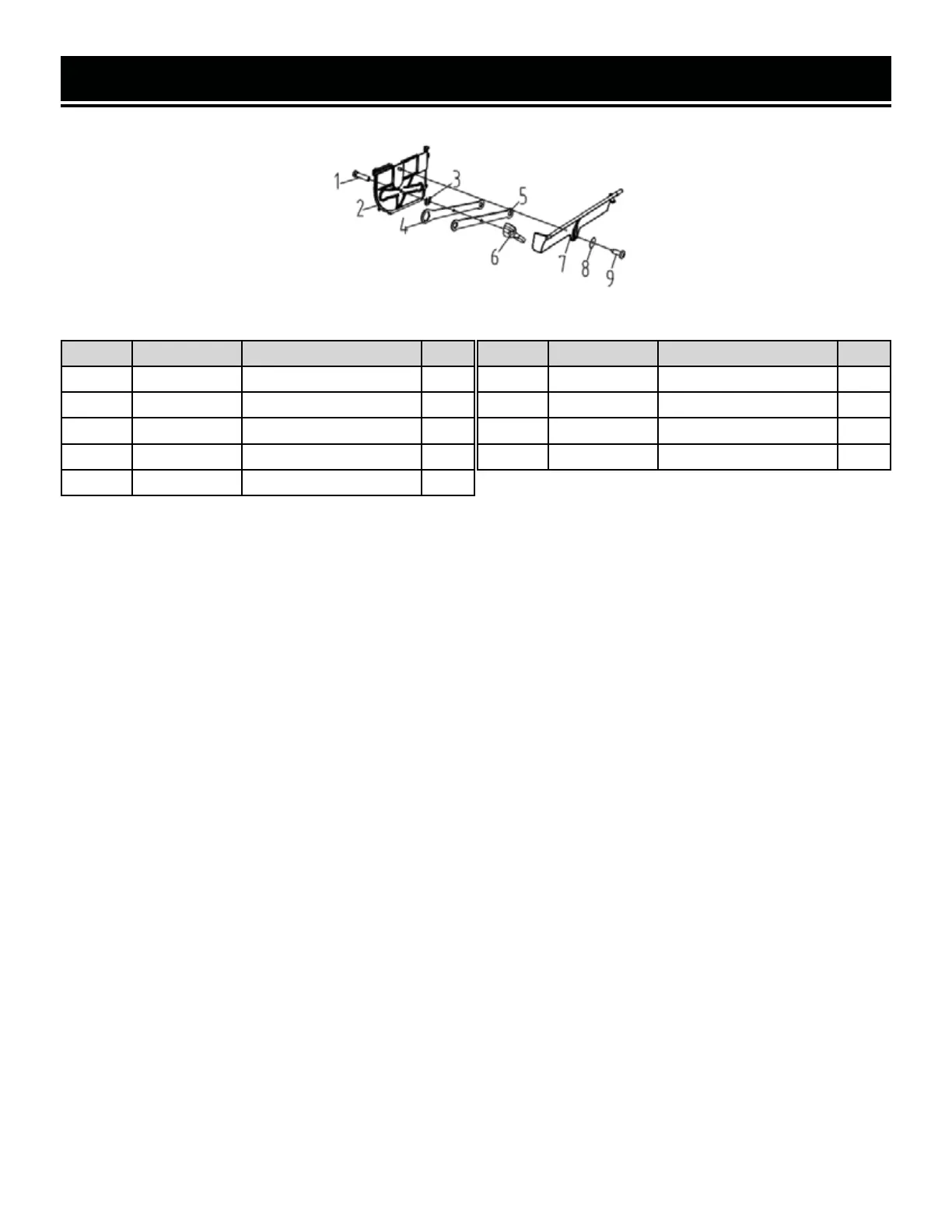

LOWER BLADE GUARD ASSEMBLY
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
