11

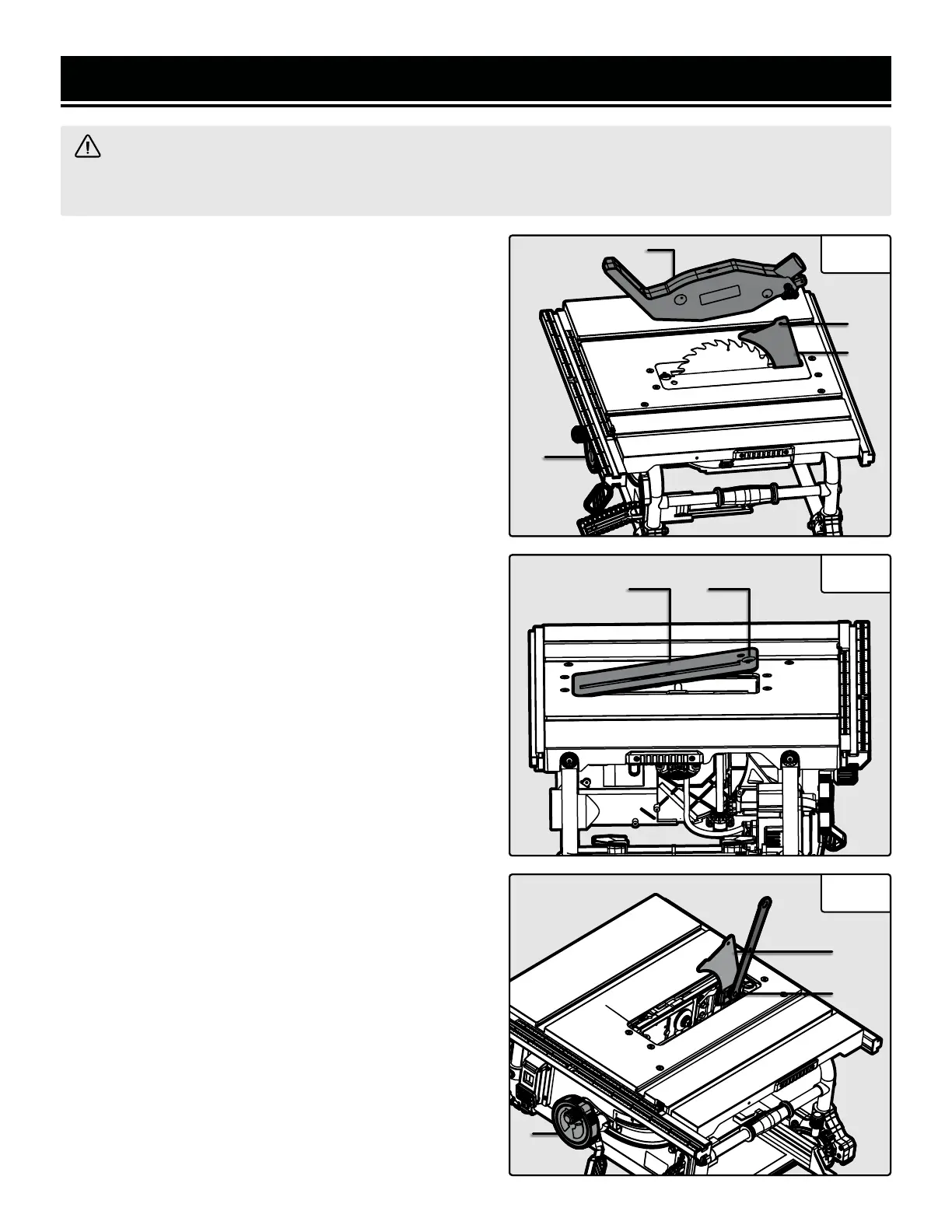

INSTALLING THE BLADE GUARD
1. Raise the saw blade by turning the height adjustment
wheel (Fig. 1 - 1) clockwise.
2. Place the riving knife (Fig. 1 - 2) in the "UP" position.
3. Mount the blade guard (Fig. 1 - 3) by using the bolt (Fig.
1 - 4) on top of the riving knife. Make sure that the bolt is
firmly fastened in the hole of the riving knife.
NOTE: Do not over tighten the screw. The blade guard
should be able to move freely.
4. To remove the blade guard, perform the above steps in
the reverse order.
CAUTION! The blade guard must be lowered onto the work-
piece before starting a cut.
REMOVING & REPLACING THE TABLE INSERT
1. Remove the blade guard. See "INSTALLING THE BLADE
GUARD" section above.
2. Lower the blade by turning the height adjustment wheel
counterclockwise.
3. Turn the insert locking knob (Fig. 2 - 1) to the unlocked
position and remove the worn table insert (Fig. 2 - 2).
4. Insert the replacement and turn the insert locking knob
to the locked position. Raise the blade and reinstall the
blade guard.
POSITIONING THE RIVING KNIFE
1. Set the blade to the maximum cutting depth, move to the
0° position, and lock in place using the blade height adjust-
ment wheel (Fig. 3 - 1).
2. Remove the blade guard and take out the table insert.
See directions above.
3. Loosen the screw (Fig. 3 - 2) and position the riving
knife (Fig. 3 - 3). Make sure that riving knife does not come
in contact with the saw blade. Tighten the screw once in
position.
NOTE: The distance between the saw blade and the riving
knife should be between 3mm and 5mm.
ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
Fig. 1
3
Fig. 2
Fig. 3
2
1
4
1
1
3
2
2
