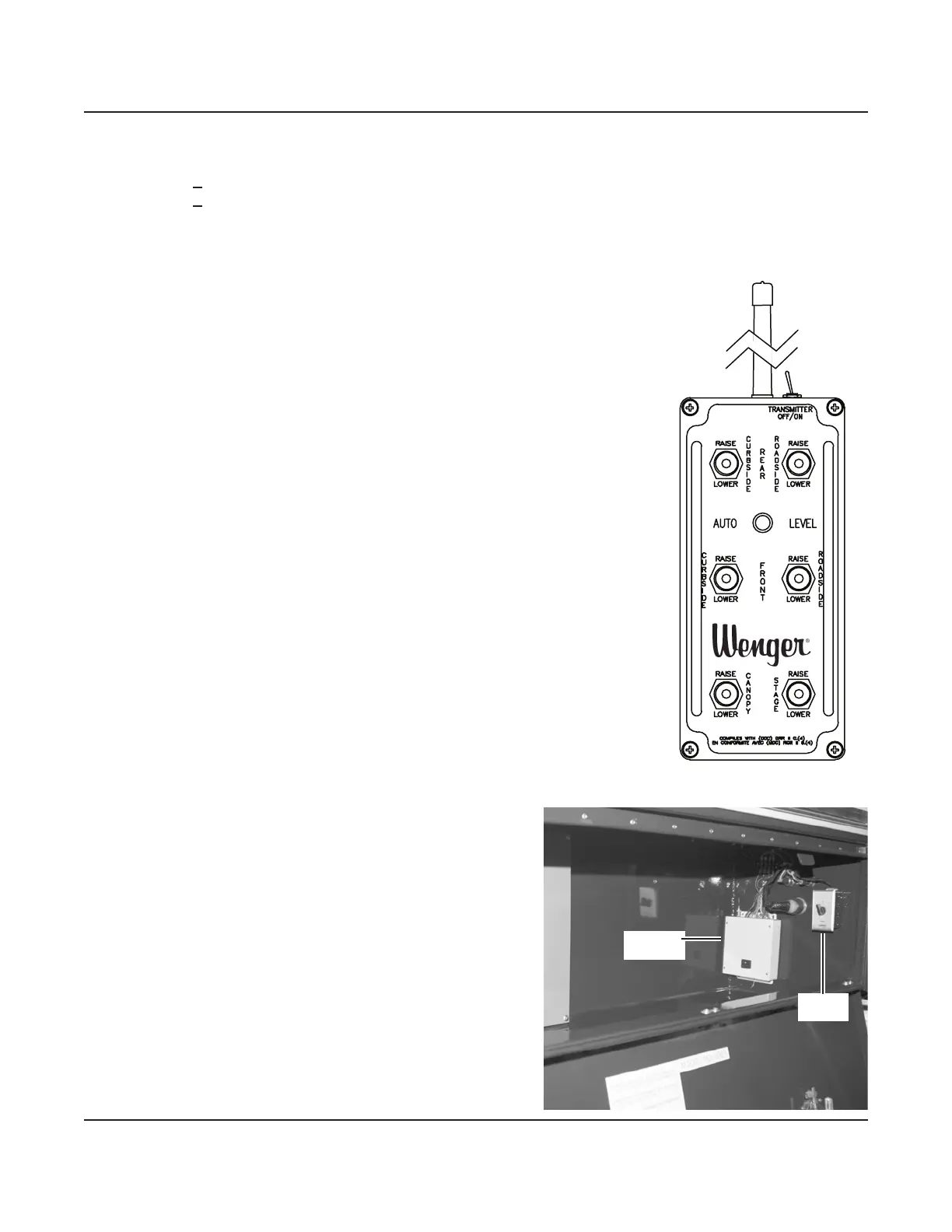

Timer
Switch
Receiver
Module
Leveling the Showmobile (continued)
Hydraulic Leveling (optional) Using the Wireless Remote Control
Important: Before using the wireless remote control, be sure the following have been completed:
• The Showmobile is unhitched from the tow vehicle�
• You have checked the front, rear, or overhead clearances required for the particular operation�
• The battery has been fully charged�
To level the unit hydraulically using the wireless remote control:
1� Open the control compartment�
2� Set the 60-minute timer switch to the desired time� The switch will not
function unless its knob is turned past the 10-minute position�
Activating the timer switch energizes the under-chassis angle sensors,
the roof limit switch (see following page), and the receiver module in the
control compartment� The remote control will not operate if the timer switch
is o and will not work unless the timer is turned on before the remote.
3� Remove the remote control from the control compartment, and set its
transmitter switch to on�
4� Move one of the upper four switches to the raise corner position�
When that stabilizing jack is in contact with the ground and the corner of
the Showmobile starts to raise, set the switch back to its neutral (center)
position�
Repeat this process on the other three corners�
5� After all four stabilizing pads are in full contact with the ground, press and
hold the red auto level button� The Showmobile will begin to raise to
properly level its chassis�
When the leveling is complete, the Showmobile will stop moving and you
will no longer hear the hydraulic motor running� Release the auto level
button�
Note: If the Showmobile stops moving but the hydraulic motor continues
to run, the slope of the ground exceeds the limits of the leveling system�
You will have to place blocks under the low end or side of the stabilizing
jack pads to increase the stroke capabilities of the jacks�
Abbreviated Procedure for Hydraulic Leveling
1� Set the timer�
2� Turn the wireless remote control on�
3� Lower all corner jacks until they are in full contact with the
ground�
4� Press and hold the auto level button�
To Next Page
