Wenglor OPT2001 - Wenglor Sensor Connection Diagram

7

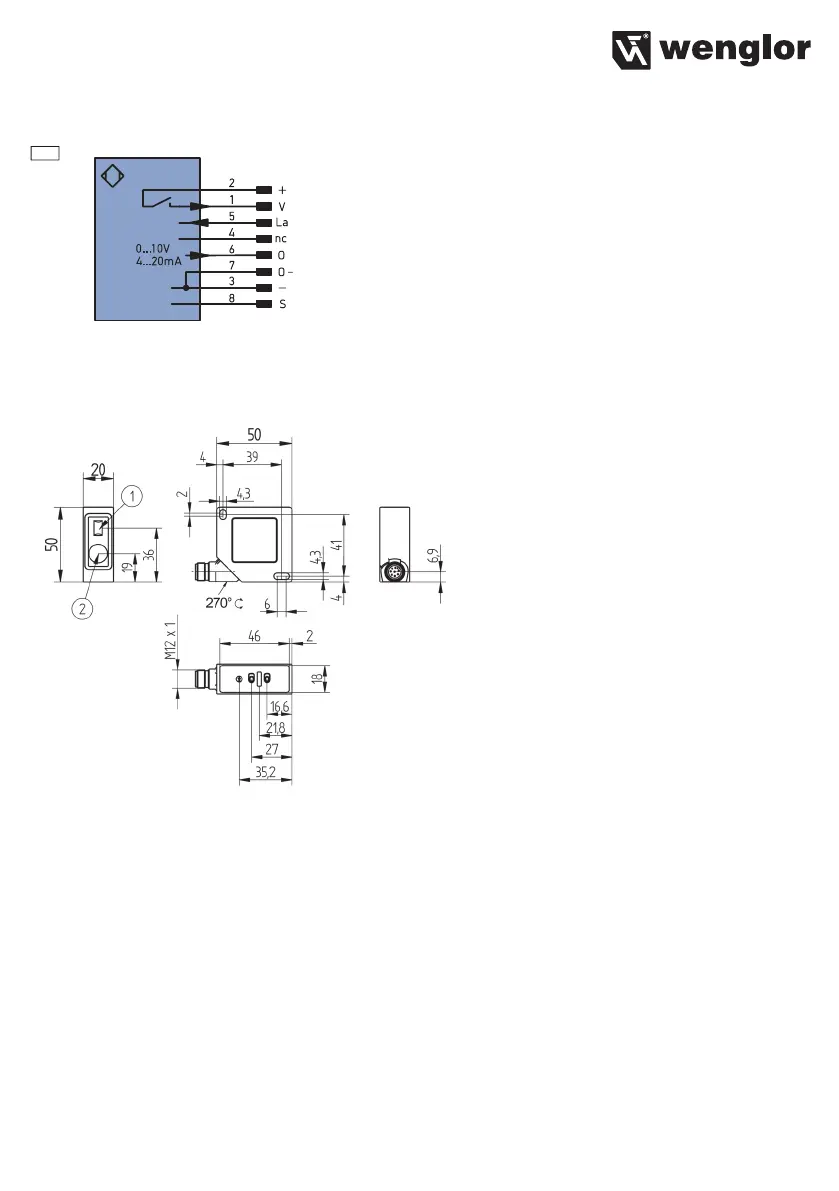

Connection Diagram
535
+ Supply Voltage +
V Contamination/Error output (NO)
La Emitted light disengageable
O Analogue output
O – Ground for the analogue output
– Supply Voltage 0 V
S Shielding
Housing Dimensions
 = Transmitter Diode
 = Receiver Diode
