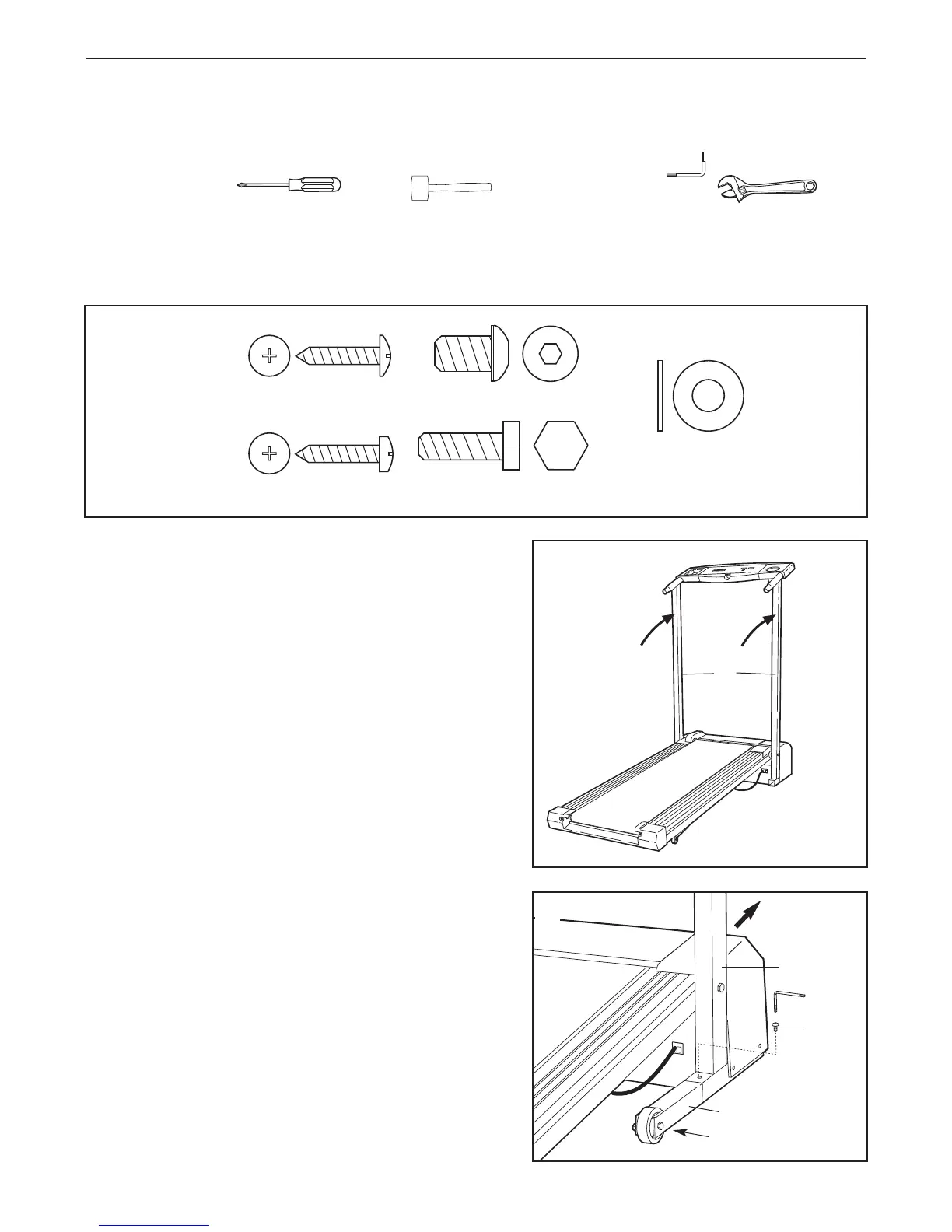

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
d
ispose of the packing materials until assembly is completed. Refer to the drawings below to identify the parts
used in assembly. Assembly requires the following tools: The included allen wrench and your own
phillips screwdriver , mallet and two adjustable wrenches .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (14) until the treadmill is in the position shown.
Handrail Bolt (15)–2
Extension Leg Screw (34)–2
L
Handrail Washer (16)–2
Handrail Screw (4)–2
Latch Screw (13)–2
14
1
5
2
2. Insert one of the Extension Legs (41) into the treadmill as
shown. Make sure that the Base Pad (36) is on the indi-
cated side. Note: It may be helpful to tip the Uprights [14]
in the direction shown by the arrow as you insert the
Extension Leg. To fully insert the Extension Leg, it may
be necessary to tap it with a mallet.
Attach the Extension Leg (41) with an Extension Leg
Screw (34). Be sure to push on the head of the
Extension Leg Screw while tightening it.
Attach the other Extension Leg (41) in the same way.
41
34
14
36
