1. Raise the Upright (11) to the vertical position. Insert the 3/8” x 1”
Bolt (18) and the 3/8” x 1 1/2” Washer (28) into the lower end of
the Upright. Finger tighten the Bolt into the Frame (59).
2. Hold the upper end of the Right Handrail (10) under the
Console (3). Insert a 3/8” x 1 3/4” Bolt (2) up into the Handrail,
and finger tighten the Bolt into the plate under the Console.
Attach the Left Handrail (1) in the same manner.
3. Insert a 3/8” x 2 3/4” Bolt (49) into the lower end of the Right
Handrail (10) and through the Frame (59). Reach under the
Frame and tighten a 3/8” Flange Nut (48) onto the Bolt.
Attach the Left Handrail (not shown) in the same manner.
Tighten all Bolts used in steps 1 and 2.
4. Remove the paper backing from the Adhesive Clip (64). Press
the Adhesive Clip onto the Right Endcap (63) in the indicated
location. Press the 3/16” Allen Wrench (65) into the Adhesive
Clip.

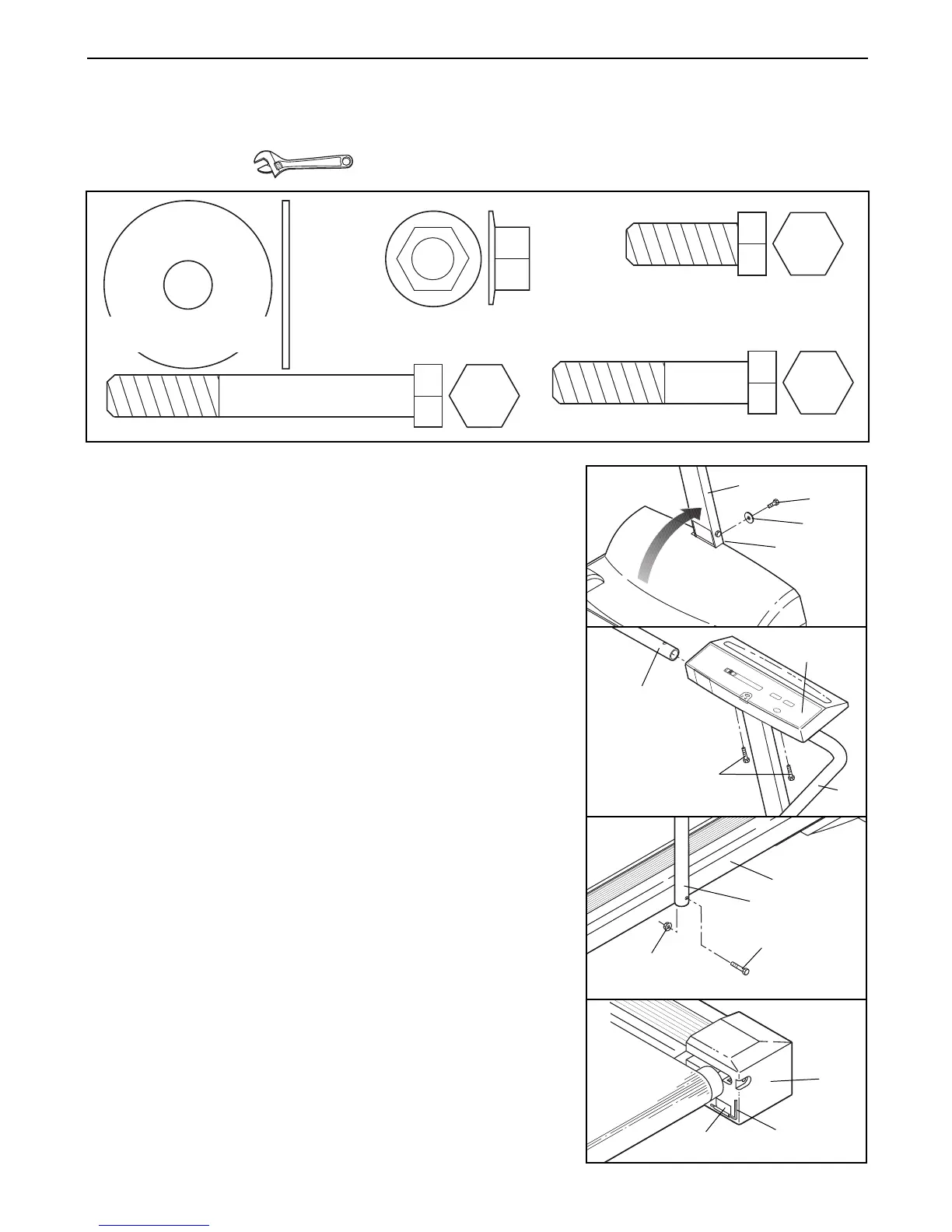

ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until
assembly is completed. Refer to the drawings below to identify small parts used in assembly. Assembly requires
an adjustable wrench (not included).
28
18
59
11
64
63
65
1
2
3
4
1
2
10
49
10
3
48
59
