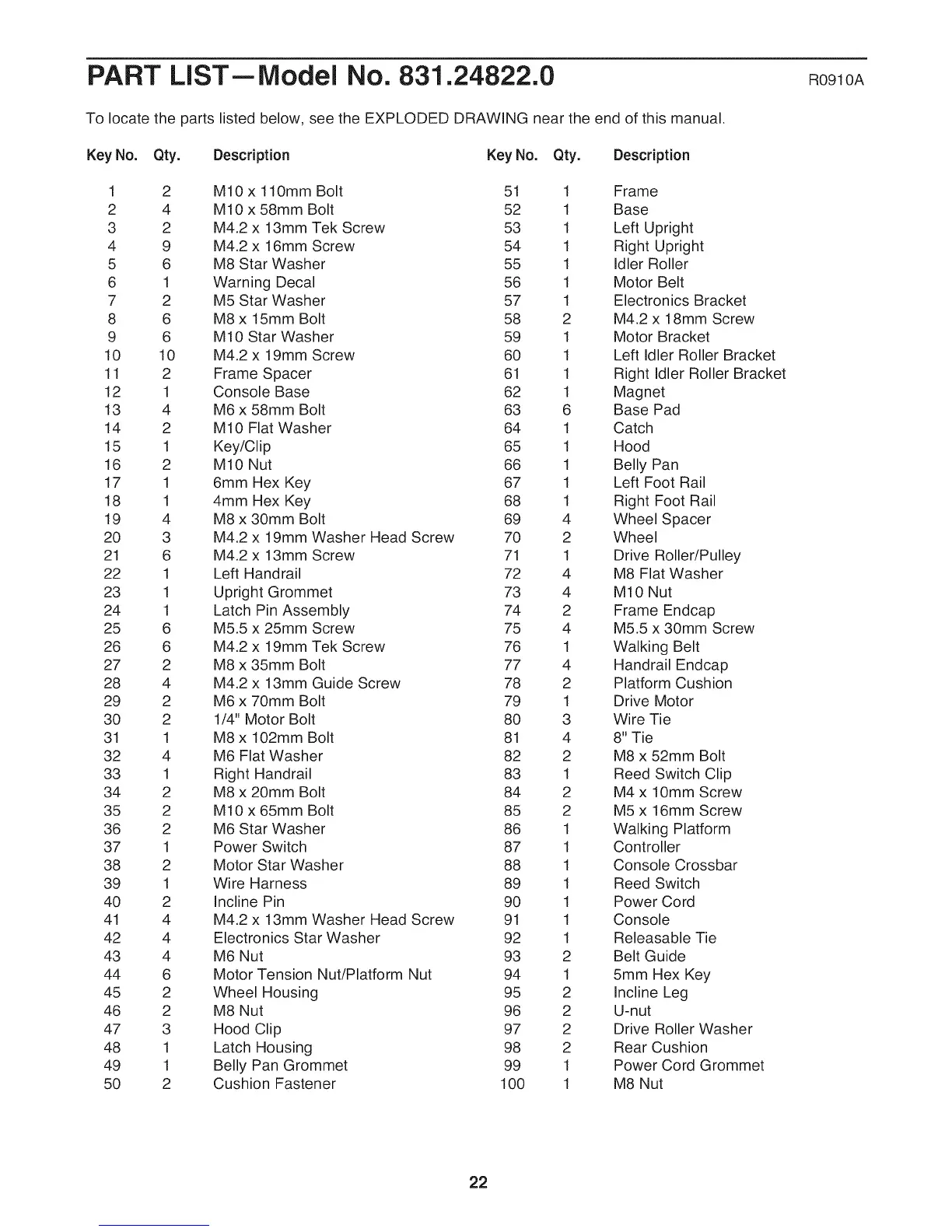

Weslo Crosswalk 5.0t User Manual

PART LISTmModel No. 831.24822.0 RO91OA
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 M10 x 110mm Bolt 51
2 4 M10 x 58mm Bolt 52
3 2 M4.2 x 13mm Tek Screw 53
4 9 M4.2 x 16mm Screw 54
5 6 M8 Star Washer 55
6 1 Warning Decal 56
7 2 M5 Star Washer 57
8 6 M8 x 15mm Bolt 58
9 6 M10 Star Washer 59
10 10 M4.2 x 19mm Screw 60
11 2 Frame Spacer 61
12 1 Console Base 62
13 4 M6 x 58mm Bolt 63
14 2 M10 Flat Washer 64
15 1 Key/Clip 65
16 2 M10 Nut 66
17 1 6mm Hex Key 67
18 1 4mm Hex Key 68
19 4 M8 x 30mm Bolt 69
20 3 M4.2 x 19mm Washer Head Screw 70
21 6 M4.2 x 13mm Screw 71
22 1 Left Handrail 72
23 1 Upright Grommet 73
24 1 Latch Pin Assembly 74
25 6 M5.5 x 25mm Screw 75
26 6 M4.2 x 19mm Tek Screw 76
27 2 M8 x 35mm Bolt 77
28 4 M4.2 x 13mm Guide Screw 78
29 2 M6 x 70mm Bolt 79
30 2 1/4" Motor Bolt 80
31 1 M8 x 102mm Bolt 81
32 4 M6 Flat Washer 82
33 1 Right Handrail 83
34 2 M8 x 20mm Bolt 84
35 2 M10 x 65mm Bolt 85
36 2 M6 Star Washer 86
37 1 Power Switch 87
38 2 Motor Star Washer 88
39 1 Wire Harness 89
40 2 Incline Pin 90
41 4 M4.2 x 13mm Washer Head Screw 91
42 4 Electronics Star Washer 92
43 4 M6 Nut 93
44 6 Motor Tension Nut/Platform Nut 94
45 2 Wheel Housing 95
46 2 M8 Nut 96
47 3 Hood Clip 97
48 1 Latch Housing 98
49 1 Belly Pan Grommet 99
50 2 Cushion Fastener 100
1
1
1
1
1
1
1
2
1
1
1
1
6
1
1
1
1
1
4
2
1
4
4
2
4
1
4
2
1
3
4
2
1
2
2
1
1
1
1
1
1
1
2
1
2
2
2
2
1
1
Frame
Base
Left Upright
Right Upright
Idler Roller
Motor Belt
Electronics Bracket
M4.2 x 18mm Screw
Motor Bracket
Left Idler Roller Bracket
Right Idler Roller Bracket
Magnet
Base Pad
Catch
Hood
Belly Pan
Left Foot Rail
Right Foot Rail
Wheel Spacer
Wheel
Drive Roller/Pulley
M8 Flat Washer
M10 Nut
Frame Endcap
M5.5 x 30mm Screw
Walking Belt
Handrail Endcap
Platform Cushion
Drive Motor
Wire Tie
8" Tie
M8 x 52mm Bolt
Reed Switch Clip
M4 x 10mm Screw
M5 x 16mm Screw
Walking Platform
Controller
Console Crossbar
Reed Switch
Power Cord
Console
Releasable Tie
Belt Guide
5mm Hex Key
Incline Leg
U-nut
Drive Roller Washer
Rear Cushion
Power Cord Grommet
M8 Nut
22

Weslo Crosswalk 5.0t Specifications

General

Brand	Weslo
Model	Crosswalk 5.0t
Category	Treadmill
Language	English
