ALlGNjSLOrJNtrJ OOWE~
NOTE
THE PUMP-REPAIR KIT (49000)
INCLUDES ALL THE USTED
CDMPQNENTS EXCEPT ITEMS
1 AND 7., THE KiT ALSO INCLUDES'
A PUMP MOUNTING GASKET.

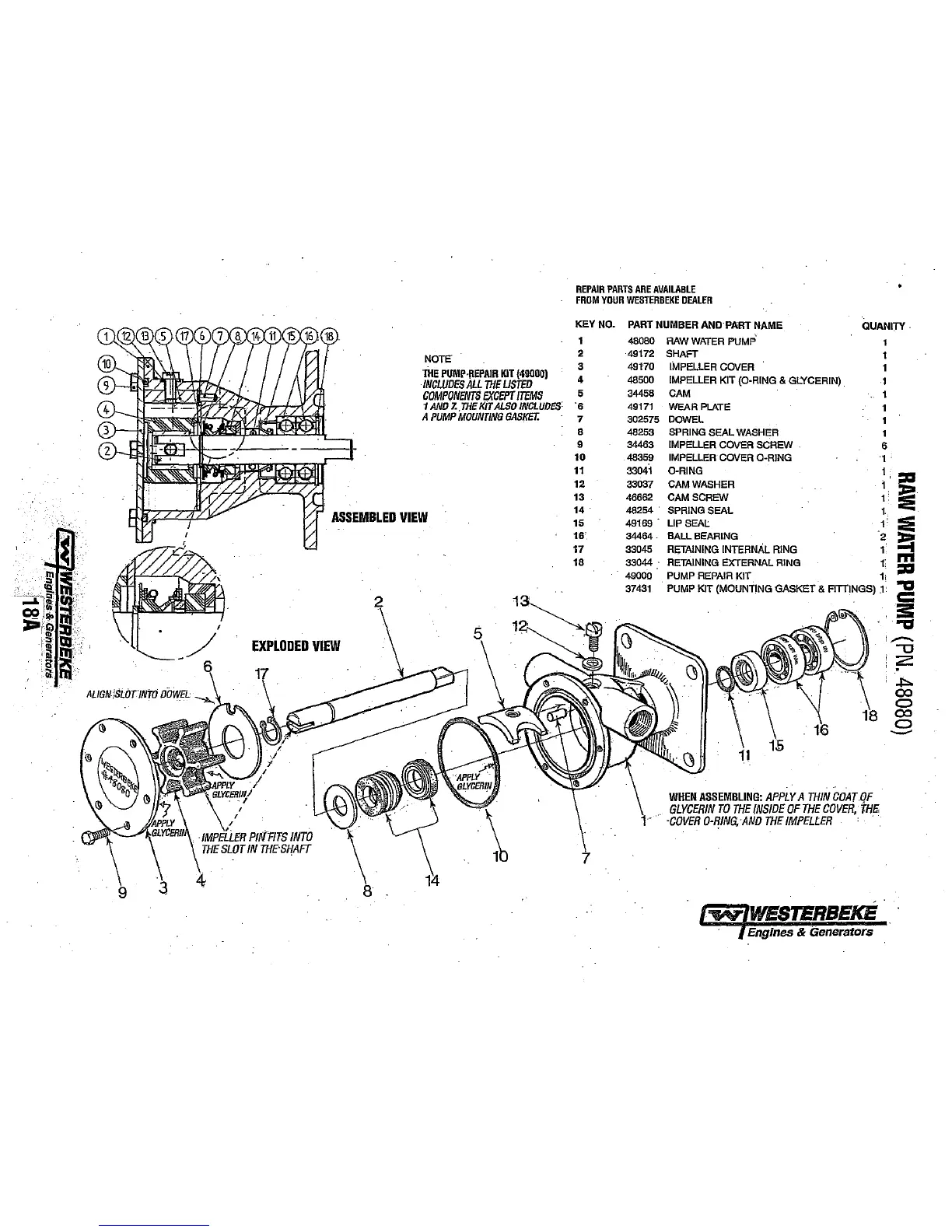

ASSEMBLED VIEW
EXPLODED VIEW
'IMYt:LLt:If PlffFITS INTO
THE SLOT IN THE'SHAFT
1
REPAIR PARTS ARE AVAILABLE
FROM YOUR WESTERBEKE DEALER
KEY NO. PART NUMBER AND'PART NAME QUANITY '
1 48080 RAW WJ!(fER PUMP' 1
2 ,49172 SHAFT 1
3 49170 IMPELLER COVER 1
4
48500 IMPELLER KIT (O·RING & GLYCERIN) ,I
5 34458 CAM 1
'6 49171 WEAR PLATE 1
7
302575 DOWEL
8 48253 SPRING SEAL WASHER 1
9 34463
IMPELLER COVER SCREW ' 6
10 48359 IMPELLER COVER O-RING '1 '
11 33041 O-RING 1
12
33037 CAM WASHER 1, ~,
13 46662 CAM SCREW l' :e
14 ' 48254 ' SPRING SEAL 1
15 49169 LIP SEAL l' ==
16' 34464, BALL BEARING '2 :t:!
17 33045 RETAINING INTERNAL RING l' ;;I
18 33044, RETAINING EXTERNAL RING l' :a
49000 PUMP REPAIR KIT 1 i
37431 PUMP KIT (MOUNTING GASKET & FITTINGS) ,I' ~
WHEN ASSEMBLING: APPLY A THIN COAT.QF
GLYCERIN TO THE (NSJOE OF THE COVER.' THIi
-COVER O-RlN6,ANO THE IMPELLER '
Engines & Generators
:s:
."
,-
-u
Z
~
00
a
00
a
--
