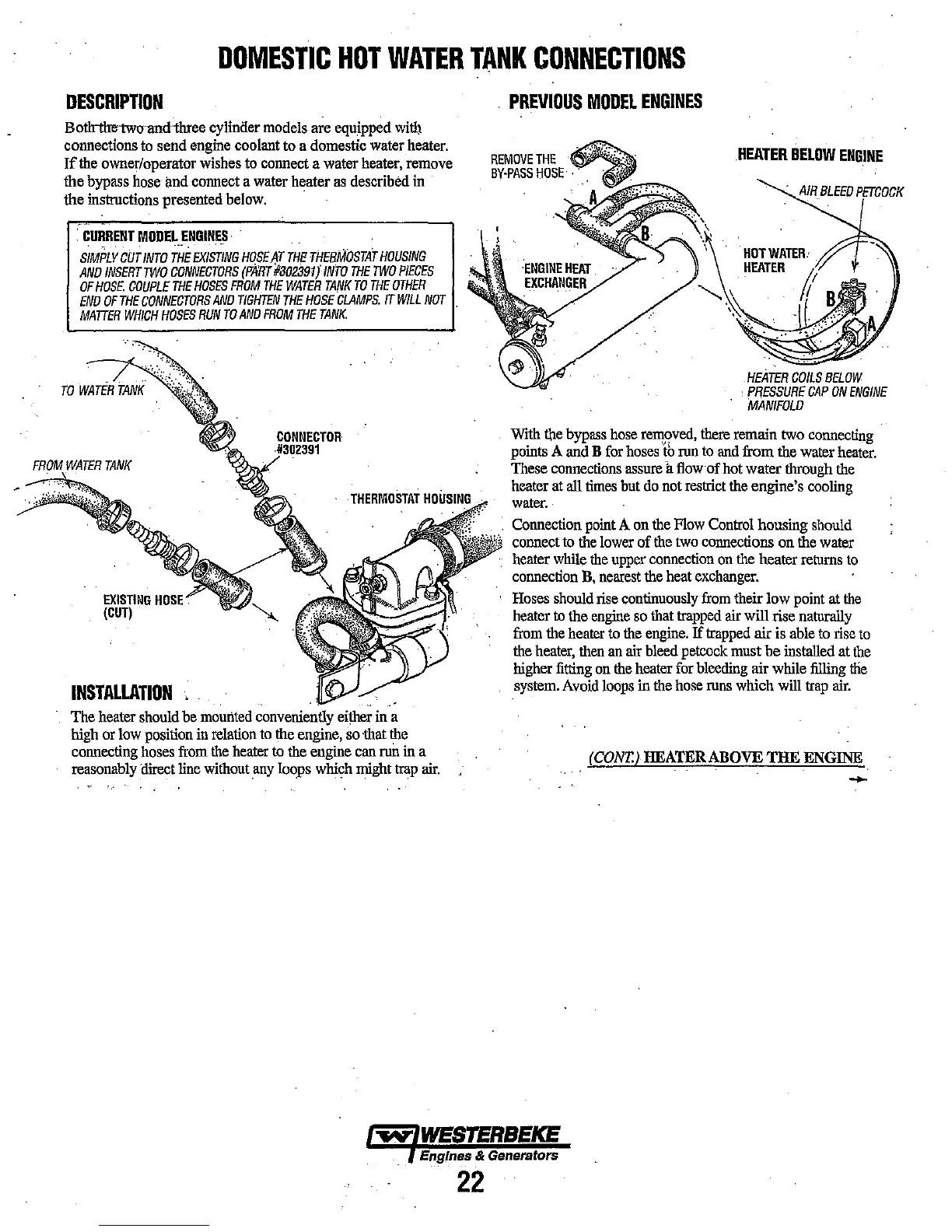

DOMESTIC HOT WATER TANK CONNECTIONS
DESCRIPTION
Bothihe two mid three cylinder models are equipped with
connections to send engine coolant to a domestic water heater.
[fthe owner/operator
wishes to connect a water heater, remove
the bypass
hose and connect a water heater as described in
the instructions presented
below. .
• CURRENT MODEt.ENGINES' '
SIMPLY CUT INTO THE EXISTING HOSE AT THe THERMOSTAT HOUSING
AND INSERT TWO CONNECTORS (PifRr #802391 )"INto THE TWO PIECES
OF HOSE. COUPLE THE HOSES FROM THE WATER TANK TO THE OTHER
END OF THE CONNECTORS AND TIGHTEN THE HOSE CLAMPS. IT WILL NOT
MATTER WHICH HOSES RUN TO AND FROM THE TANK.
CONNECTOR
INSTALLATION .
The heater should be mounted conveniently either in a
high or low position in relation to the engine, so ·that the
connecting hoses from the heater to the engine can run in a
reasonably direct line
without any loops which might trap air.
PREVIOUS MODEL ENGINES
REMOVE THE
BY-PASS HOSE' ,
,HEATER BELOW ENGINE
HEATER COILS BELOW
, PRESSURE CAP ON ENGINE
MANIFOLD
With the bypass hose re11]?ved, there remain two connecting
points A and B for hoses to run to and from the water heater.
These connections assure '" fiowofhot water through the
heater at all times but do not restrict the engine's cooling
water.
, Connection point A on the Flow Control housing should
connect to the lower of the two connections on the water
heater
while the upper connection on the heater returns to
connection B, nearest the heat exchanger_
Hoses should rise continuously from their low point at the
heater to the engine so that trapped air will rise naturally
from the heater to the engine. If trapped air is able to rise to
the heater, then an air bleed petcock must be installed at the
higher fitring on the heater for bleeding air while filling llie
system. Avoid loops in the hose runs which will trap air.
(CONT.) HEATER ABOVE THE ENGINE ,
-
