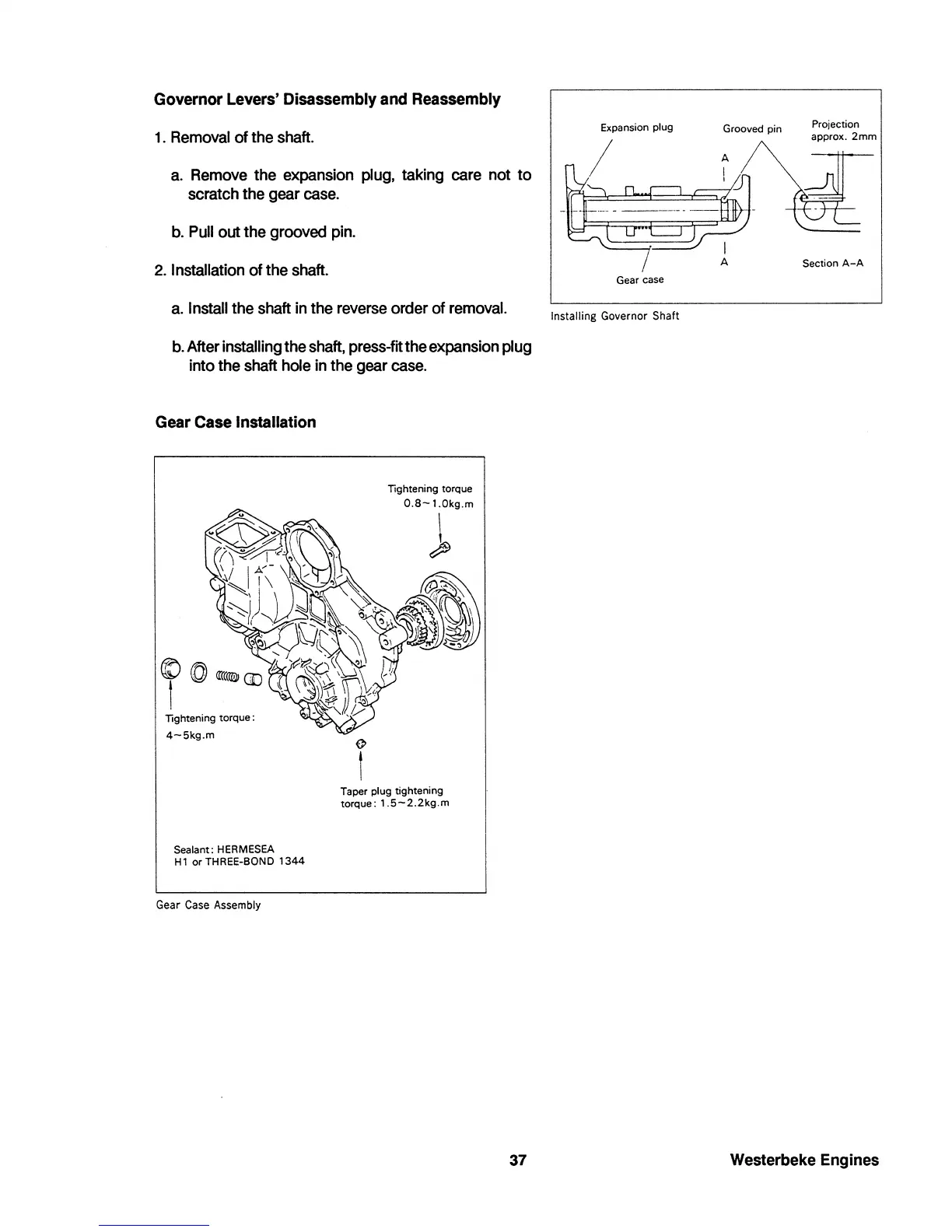

Governor Levers' Disassembly and Reassembly
1.
Removal
of the
shaft.
a.
Remove
the expansion
plug,
taking
care
not to
scratch the gear
case.
b.
Pull
out the grooved
pin.
2.
Installation of the
shaft.
a.
Install the
shaft
in
the
reverse
order of
removal.
b.
After installing the
shaft,
press-fit the
expansion
plug
into the shaft
hole
in
the gear
case.
Gear Case Installation
Tightening torque:
4-5kg.m
Sealant: HERMESEA
H1
or THREE-BOND
1344
Gear
Case
Assembly
Tightening torque
O.8-1.0kg.m
~
Taper plug tightening
torque:
1.5-2.2kg.m
37
Expansion plug
Gear
case
Installing Governor Shaft
Grooved pin
Projection
approx.2mm
Section
A-A
Westerbeke Engines
