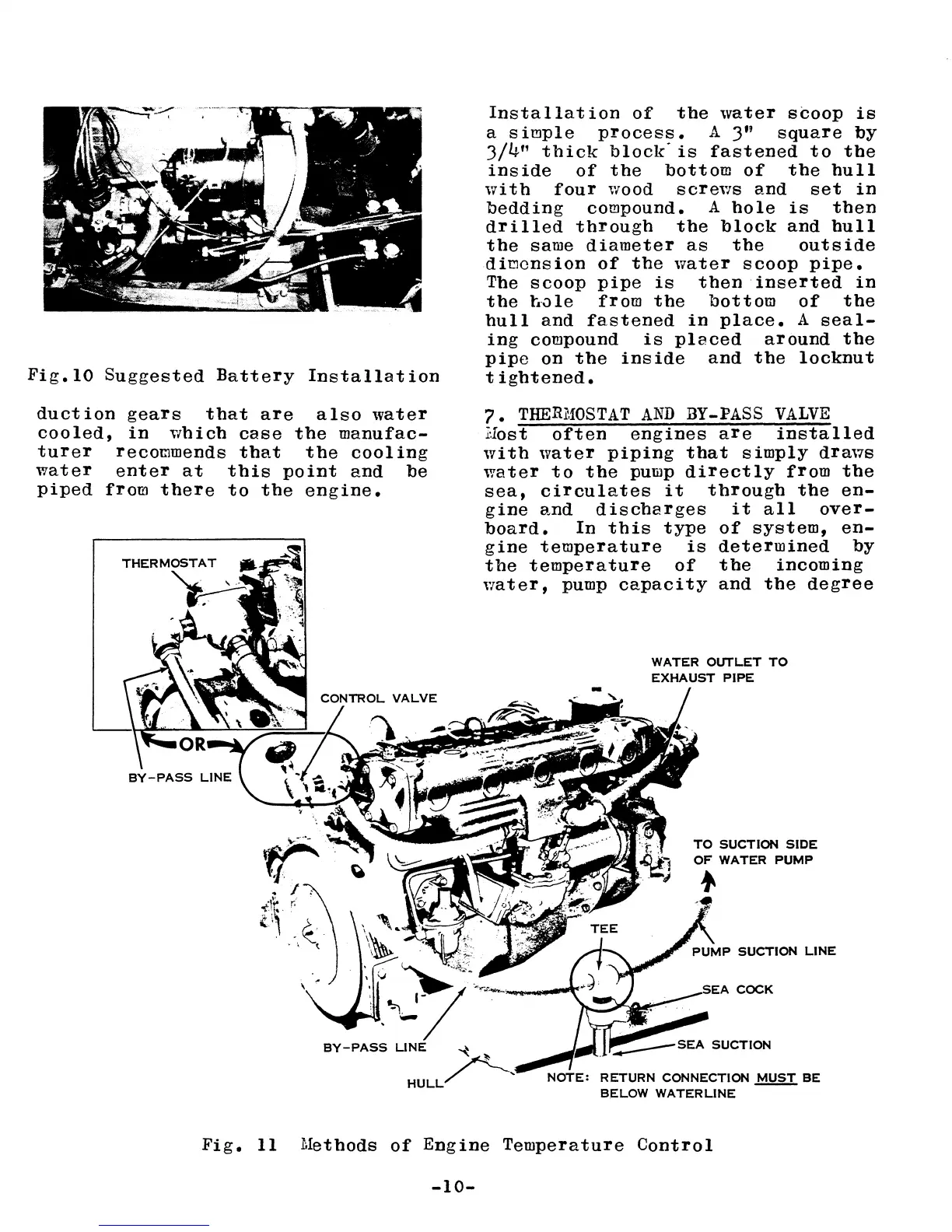

Fig.IO Suggested Battery Installation
duct ion gears tbat are also water
cooled, in wbicb case tbe manufac-
turer recommends tbat tbe cooling
water enter at tbis point and be
piped from tbere to tbe engine.
Installation of the water scoop is
a simple process. A 3" square by
3/4" thick block" is fastened to tbe
inside of tbe bottom of tbe bull
witb four wood screws and set in
bedding compound. A bole is then
drilled tbrougb the block and bull
the same diameter as the outside
di~cnsion of tbe water scoop pipe.
The scoop pipe is then inserted in
tbe h~le from tbe bottom of tbe
bull and fastened in place. A seal-
ing compound is placed around the
pipe on the inside and tbe locknut
tightened.
7. THER£.fOSTAT AND BY-PASS VALVE
Host often engines are installed
witb water piping that simply dravls
water to tbe pump directly from the
sea, circulates it through the en-
gine and discbarges it all over-
board. In tbis type of system, en-
gine temperature is determined by
the temperature of the incoming
water, pump capacity and the degree
WATER OUTLET TO
TO SUCTION SIDE
OF WATER PUMP
+
BY-PASS LINE -{
HULL~'
RETURN CONNECTION ~ BE
BELOW WATERLINE
Fig. 11 Methods of Engine Temperature Control
-10-
