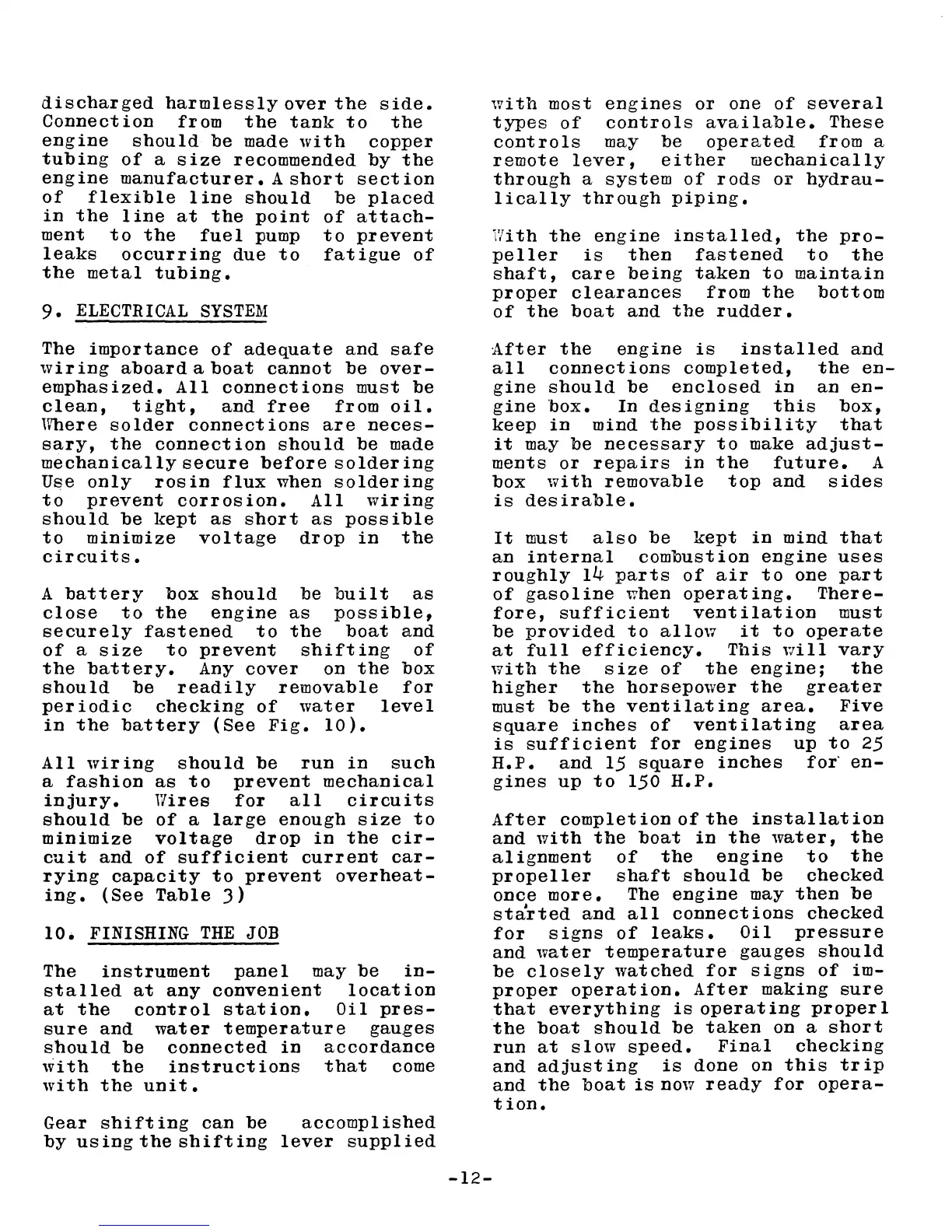

discharged
harmlessly
over
the
side.
Connection
from
the
tank
to
the
engine
should
be
made
with
copper
tubing
of
a
size
recommended
by
the
engine
manufacturer.
A
short
sect
ion
of
flexible
line
should
be
placed
in
the
line
at
the
point
of
attach-
ment
to
the
fuel
pump
to
prevent
leaks
occurring
due
to
fatigue
of
the
metal
tubing.
9.
ELECTRICAL
SYSTEM
The
importance
of
adequate
and
safe
wir
ing
aboard
a
boat
cannot
be
over-
emphasized.
All
connections
must
be
clean,
tight,
and
free
from
oil.
'There
solder
connections
are
neces-
sary,
the
connection
should
be
made
mechanically
secure
before
soldering
Use
only
rosin
flux
when
soldering
to
prevent
corrosion.
All
wiring
should
be
kept
as
short
as
possible
to
mInImIze
voltage
drop
in
the
circuits.
A
battery
box
should
be
built
as
close
to
the
engine
as
possible,
securely
fastened
to
the
boat
and
of
a
size
to
prevent
shifting
of
the
battery.
Any
cover
on
the
box
should
be
readily
removable
for
periodic
checking
of
water
level
in
the
battery
(See
Fig.
10).
All
wiring
should
be
run
in
such
a
fashion
as
to
prevent
mechanical
injury.
Wires
for
all
circuits
should
be
of
a
large
enough
size
to
minimize
voltage
drop
in
the
cir-
cuit
and
of
sufficient
current
car-
rying
capacity
to
prevent
overheat-
ing.
(See
Table
J)
10.
FINISHING
THE
JOB
The
instrument
panel
may
be
in-
stalled
at
any
convenient
location
at
the
control
station.
Oil
pres-
sure
and
water
temperature
gauges
should
be
connected
in
accordance
~ith
the
instructions
that
come
with
the
unit.
Gear
shifting
can
be
accomplished
by
using
the
shifting
lever
supplied
with
most
engines
or
one
of
several
types
of
controls
available.
These
controls
may
be
operated
from a
remote
lever,
either
mechanically
through
a
system
of
rods
or
hydrau-
lically
through
piping.
With
the
engine
installed,
the
pro-
peller
is
then
fastened
to
the
shaft,
care
being
taken
to
maintain
proper
clearances
from
the
bottom
of
the
boat
and
the
rudder.
After
the
engine
is
installed
and
all
connections
completed,
the
en-
gine
should
be
enclosed
in
an
en-
gine
box.
In
designing
this
box,
keep
in
mind
the
possibility
that
it
may
be
necessary
to
make
adjust-
ments
or
repairs
in
the
future.
A
box
with
removable
top
and
sides
is
desirable.
It
must
also
be
kept
in
mind
that
an
internal
combustion
engine
uses
roughly
14
parts
of
air
to
one
part
of
gasoline
when
operating.
There-
fore,
sufficient
ventilation
must
be
provided
to
allow
it
to
operate
at
full
efficiency.
This
will
vary
with
the
size
of
the
engine;
the
higher
the
horsepower
the
greater
must
be
the
ventilating
area.
Five
square
inches
of
ventilating
area
is
sufficient
for
engines
up
to
25
H.P.
and
15
square
inches
for'
en-
gines
up
to
150
H.P.
After
complet
ion
of
the
installat
ion
and
with
the
boat
in
the
water,
the
alignment
of
the
engine
to
the
propeller
shaft
should
be
checked
once
more.
The
engine
may
then
be
started
and
all
connections
checked
for
signs
of
leaks.
Oil
pressure
and
water
temperature
gauges
should
be
closely
watched
for
signs
of
im-
proper
operation.
After
making
sure
that
everything
is
operating
properl
the
boat
should
be
taken
on a
short
run
at
slow
speed.
Final
checking
and
adjusting
is
done
on
this
trip
and
the
boat
is
now
ready
for
opera-
tion.
-12-
