Lit. No. 49513, Rev. 00 92 August 15, 2011

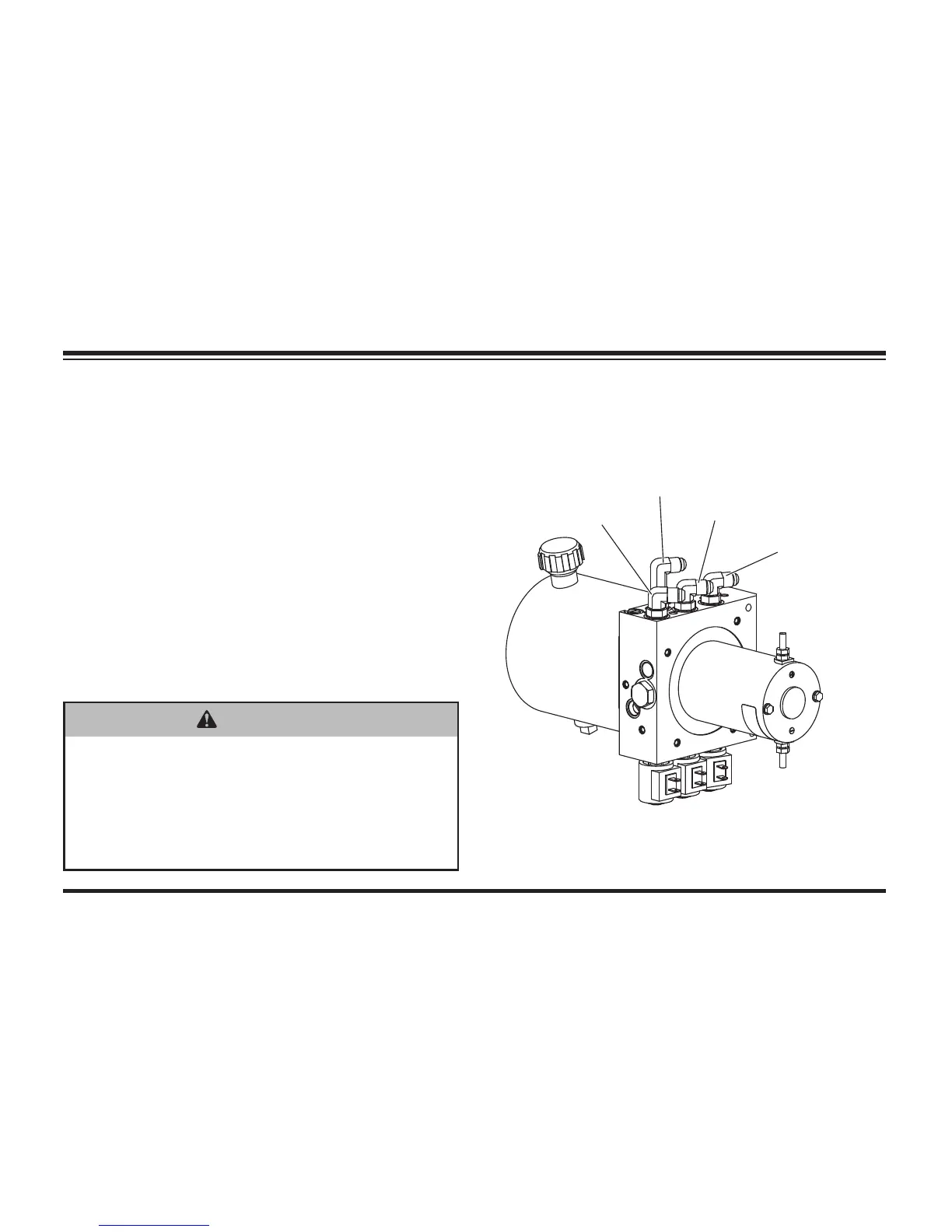

Hose Routing for HTS™ Blades
To PS
Angle Ram
To DS
Angle Ram
To Lif t
Ram Base
To Lif t
Ram Rod
illustrations and Hydraulic Hose or Fitting
Replacement instructions.)
9. Manually angle the blade fully in each direction
to remove fl uid from the angle rams. Do not
allow the hose(s) from the extending ram or
the opposite side of the ram (MVP PLUS™
blades only) to take fl uid back in.
10. Reconnect the angle ram hoses to the proper
fi ttings. Reinstall all protective hose wraps in
their original positions. (See the following
illustrations for your snowplow type and
Hydraulic Hose or Fitting Replacement
instructions.)
MAINTENANCE
WARNING
Keep 8' clear of the blade drop zone when
it is being raised, lowered or angled. Do
not stand between the vehicle and blade
or directly in front of blade. If the blade
hits you or drops on you, you could be
seriously injured.
To Next Page
