Lit. No. 49513, Rev. 00 94 August 15, 2011

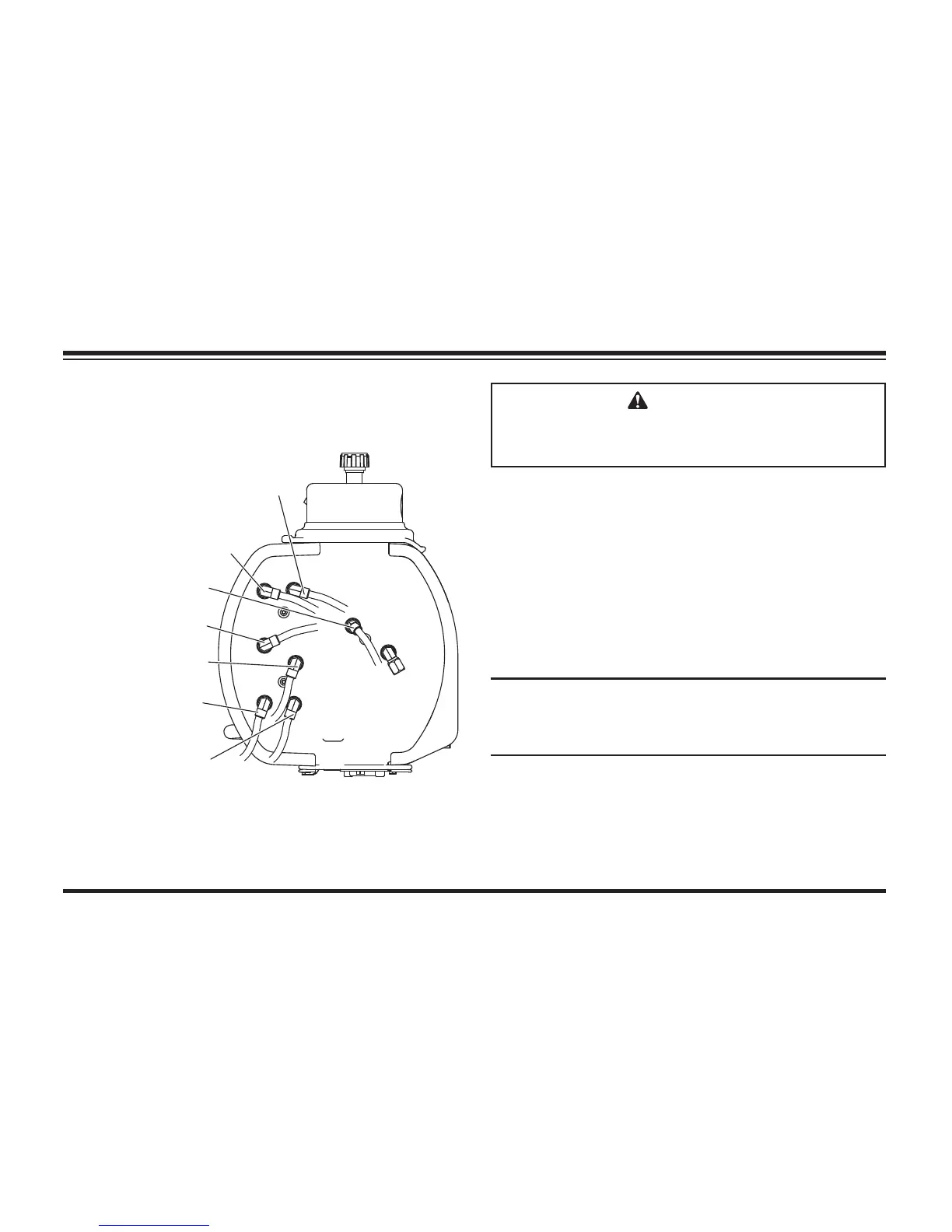

Hose Routing for WIDE-OUT™ Blades
To PS Wing
Rod (inside)
To DS Angle Ram
To PS Angle Ram
To DS Wing
Base (outside)
To DS Wing
Rod (inside)
To PS Wing
Base (outside)
To Lif t Ram
11. For straight blades, any angle will do, but
MVP PLUS and WIDE-OUT blades must
be in the fully retracted (vee) position. With
the lift ram fully retracted, fi ll the reservoir
with WESTERN
®
High Performance
Hydraulic Fluid to –40°F (–40°C), or other
fl uid conforming to Military Specifi cation
MIL-H-5606A, such as Mobil Aero HFA or
Shell AeroShell
®
Fluid 4. Replace the fi ll plug.
NOTE: On MVP PLUS™ and WIDE-OUT™
blades, add fl uid only when all rams are
retracted.
MAINTENANCE
AeroShell
®
is a registered (
®
) trademark of Shell Oil Company.
CAUTION
Do not raise blade during fi ll process as
this may cause pump cavitation.
To Next Page
