Failure of electric elements due to lime scale build-up on the
heating surface, low pH, or other imbalance IS NOT covered by
the warranty.
• Hardness less than 7 grains (120 mg/L) (Commercial Use -
water temperatures of 140
o
F and greater)
• Hardness levels above the required amounts can lead to lime
scale build-up throughout the system. Water below 5 grains/
gallon (85 mg/L) may be over softened.
• Consult local water treatment companies for unusually
hard water areas (above the required amounts) or for other
treatment solutions if water is being over softened (below 5
grains/gallon [85 mg/L]).
• Chloride concentration less than 100 ppm (mg/L)
• Do not ll appliance or operate with water containing
chlorides in excess of 100 ppm (mg/L).
• Using chlorinated fresh water should be acceptable as levels
are typically less than 5 ppm (mg/L).
• Do not connect the appliance to directly heat swimming
pool or spa water.
• Total Dissolved Solids (TDS) less than 500 ppm (mg/L)
• Total dissolved solids are minerals, salts, metals, and charged
particles that are dissolved in water.
• The greater the amounts of TDS present, the higher the
corrosion potential due to increased conductivity in the
water.
• If using softened water to ll the appliance, it is still possible
to have high TDS. This water can be corrosive. Consult local
water treatment companies for other treatment solutions to
reduce this aect.
*NOTE: To promote appliance service life, it is strongly
recommended to follow the maintenance procedures in this
manual.

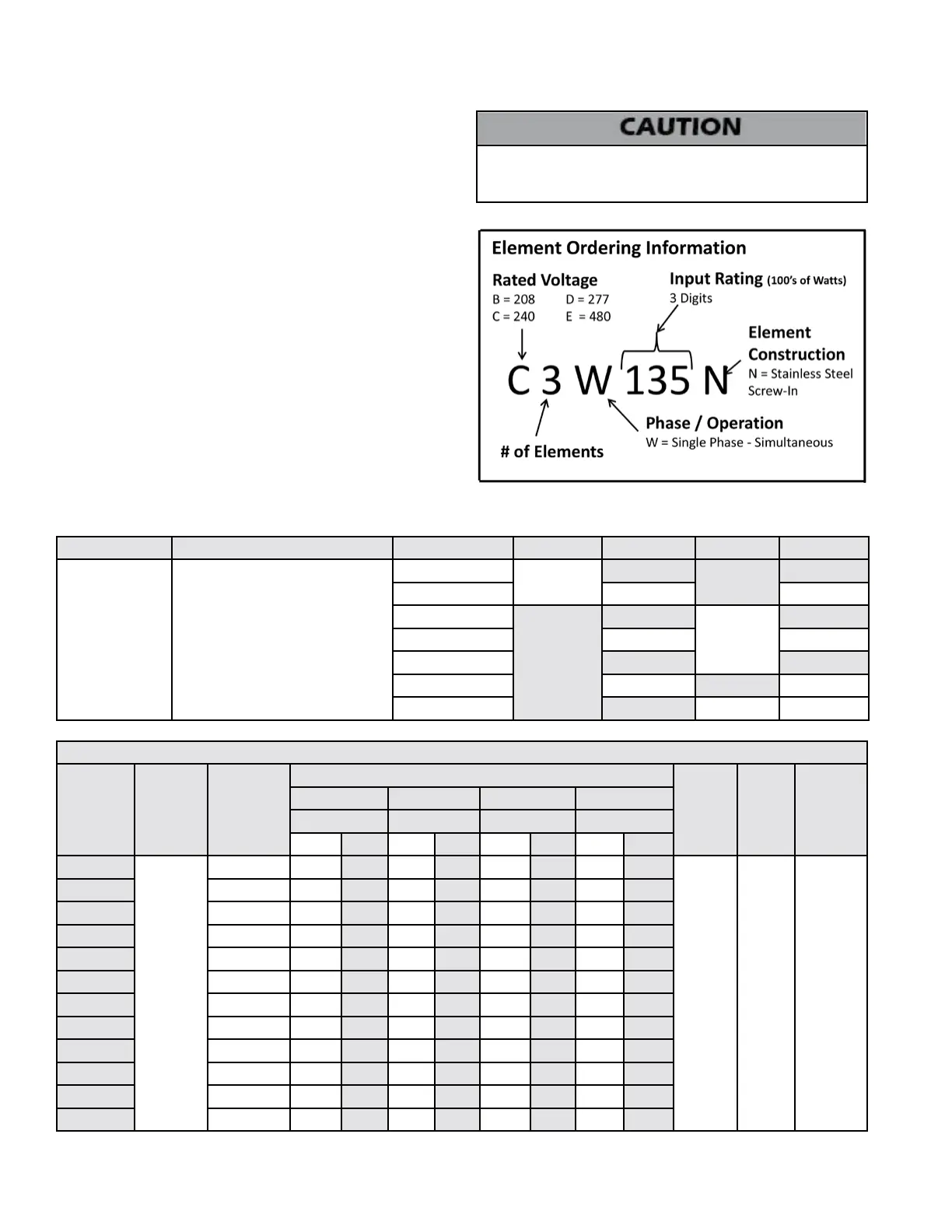

Table 3 - Element Kits and Corresponding Wattages / Voltages - For Element Kit Part #’s, See Replacement Parts, This Manual
Gallons # Elements and Thermostats Simultaneous 208 240 277 480
80, 100, 115 3
12,500
YES
NO
NO
NO
13,500 YES YES
14,000
NO
NO
YES
NO
15,000 YES YES
16,000 NO NO
16,500 YES NO YES
18,000 NO YES YES
Electrical Specications
Total
Input (Kw)
# of
Elements
Single
Element
Wattage
Full Load Current In Amperes
# of
T-Stats
# of
Fuses
# of Fuse
Holders
208V 240V 277V 480V
Phase Phase Phase Phase
1 3 1 3 1 3 1 3
4.1*
3
4.1 20 20 - - - - - -
3 6 2
4.5* 4.5 22 22 19 19 17 17 10 10
5* 5 - - 21 21 18 18 11 11
5.5* 5.5 - - 23 23 19 19 12 12
6* 6 - - - - 22 22 13 13
12.5 4.2 60 35 - - - - - -
13.5 4.5 65 38 57 33 - - 29 17
14 4.7 - - - - 51 30 - -
15 5 - - 63 36 55 32 32 18
16 5.3 - - - - 58 34 - -
16.5 5.5 - - 69 40 - - 35 20
18 6 - - - - 65 38 38 22
Table 4 - * Unit must be converted for Non-Simultaneous operation
