Weytec UltraFlex Mini PC V2 - Application Example 3

WEY Technology AG · MAN22771_E06.docx · 18.04.2018
Dorfstrasse 57 · 8103 Unterengstringen · Schweiz · T +41 44 751 89 89 · info.ch@weytec.com · www.weytec.com
10
2.5 Application Example 3

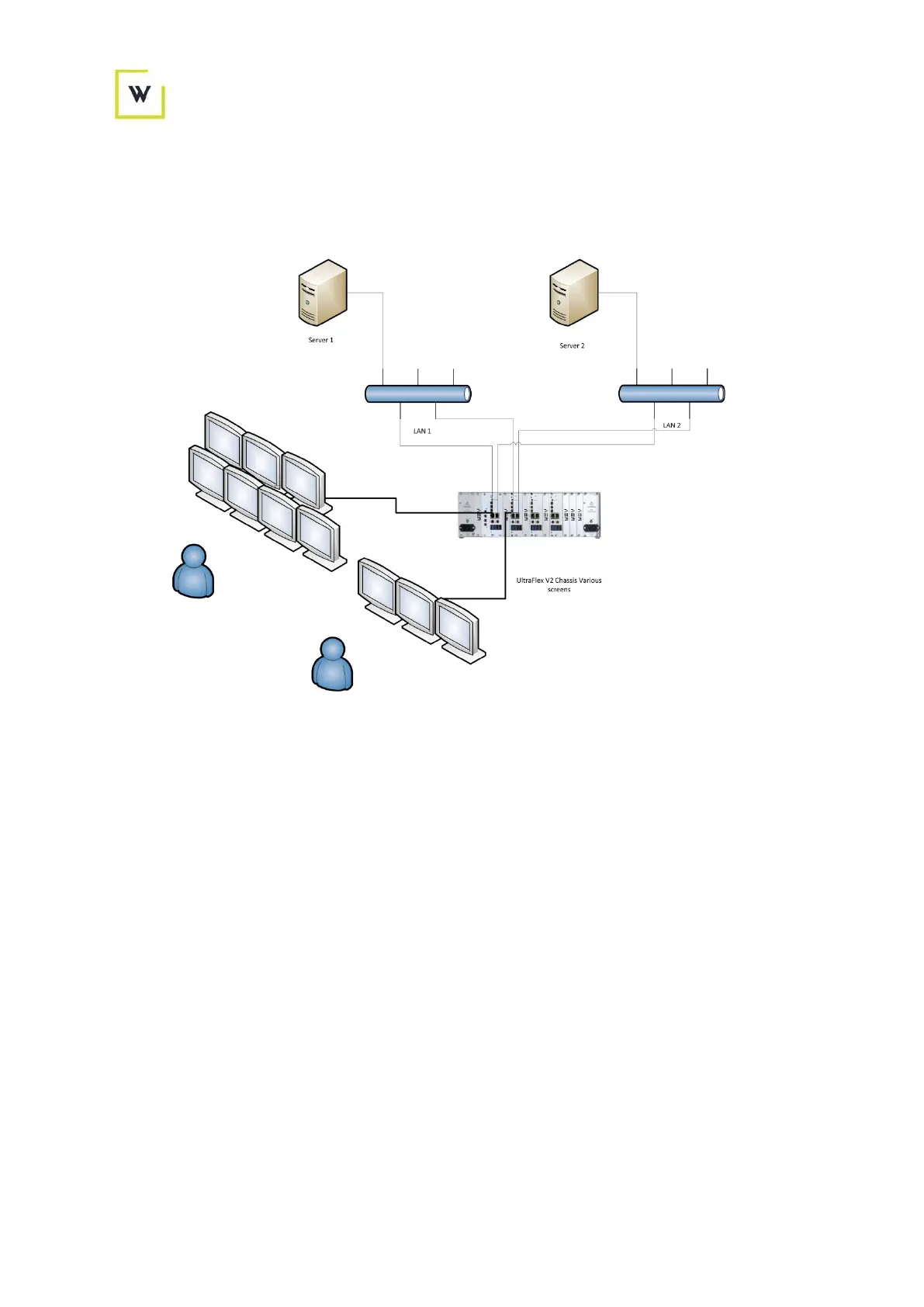

The following diagram shows chassis mounted UltraFlex Mini PC V2s driving a combination of screens:
Figure 3 - Example 3
