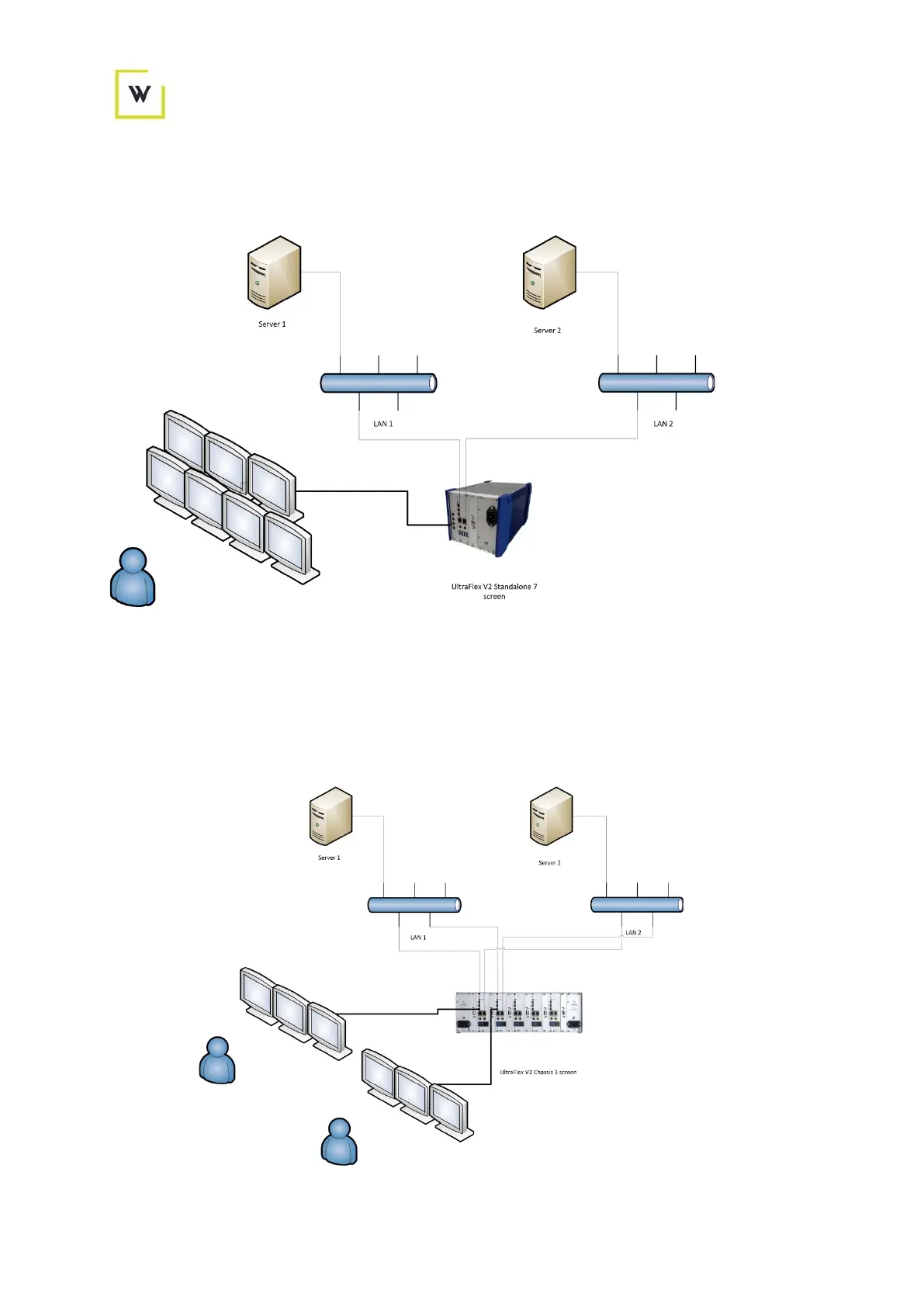

2.3 Application Example 1
The following diagram shows a standalone UltraFlex Mini PC V2 driving 7 screens:
2.4 Application Example 2
The following diagram shows chassis mounted UltraFlex Mini PC V2s each driving 3 screens:
Figure 1 - Example 1
Figure 2 - Example 2
