3.8 On board Connectors and Jumpers
1. SATA Data connectors
2. Audio in selection – both jumpers left above = line in and both jumpers right = mic
3. SATA power – 5v and 3.3v 10Watt only as marked on board
3.8.1 SATA Data connectors
Two Standard SATA Data connectors for use with additional SSD(s). Used when UltraFlex V2 is supplied in a RAID
configuration.
3.8.2 Audio in selection
The Audio in can be set to:
• Line in when both jumpers fitted to left as above or
• Mic in when both jumpers fitted to the right
3.8.3 SATA power
Non-standard SATA power connection supplying +5v and 3.3v for mSATA module using an adaptor or similar.
Note: This connector
must not be used to provide power to a standard HDD or SSD that requires 12v.

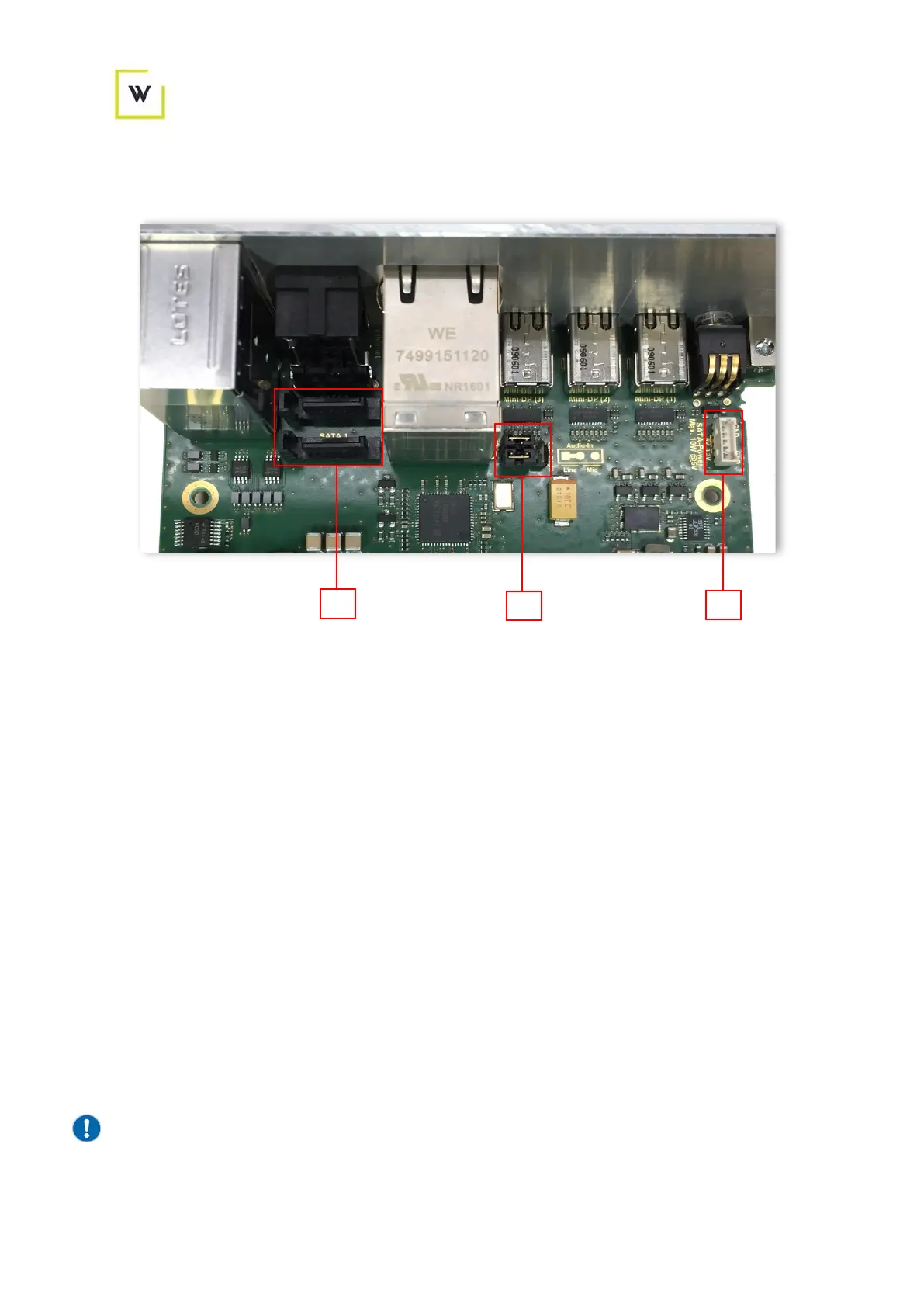

Figure 8 – On board Connectors and Jumpers
