3 Product Overview

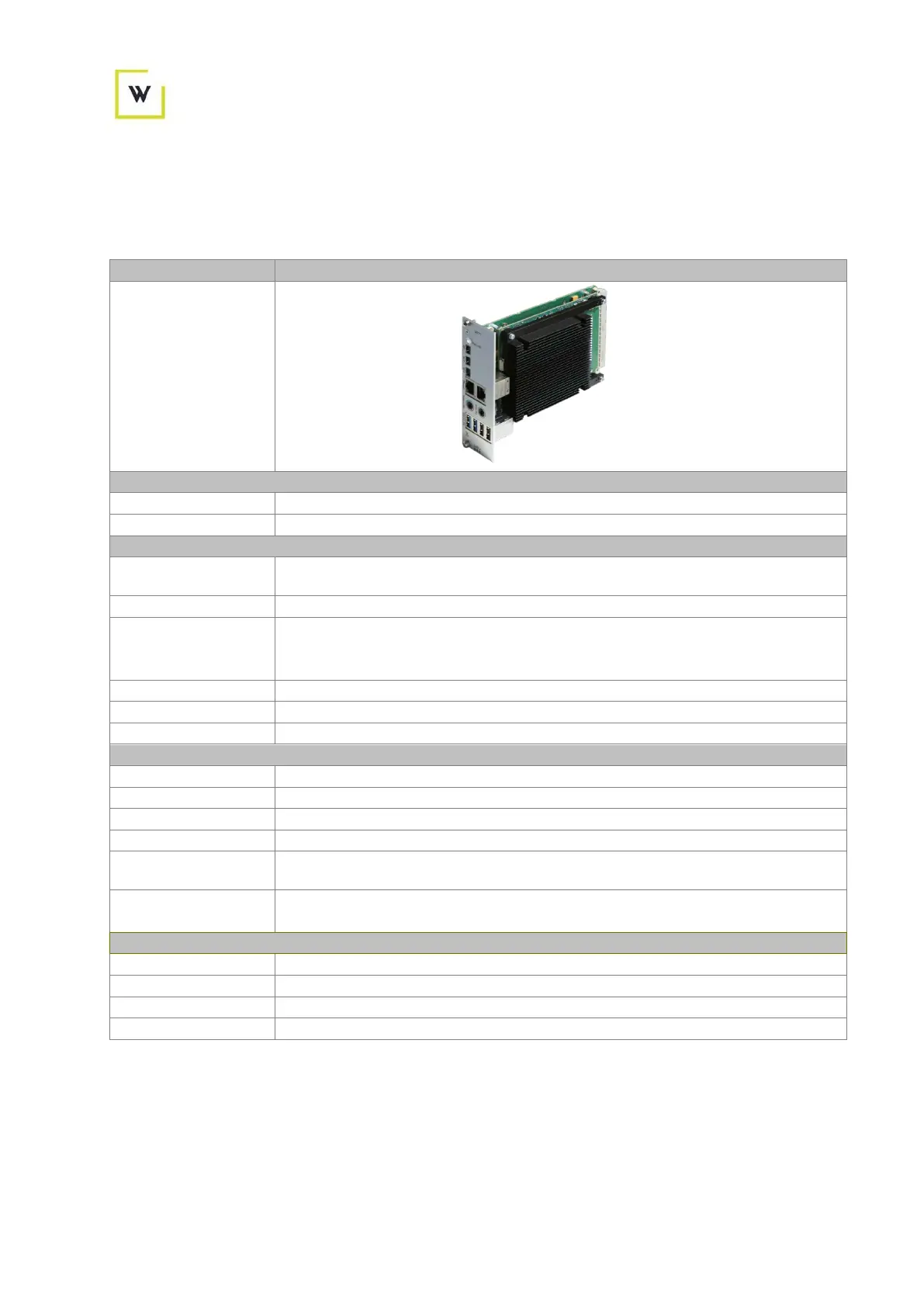

3.1 Technical Specifications
UltraFlex Mini PC V2
Part No. 2277xx
Dimensions – excluding housing
Size W/D/H (mm)
2 Slot 180 x 128 x 40 / 3 Slot 180 x 128 x 60 / 4 Slot 180 x 128 x 80
Weight (g)
460 - 684
Electrical Characteristics
Power Supply
2 x 100-240V AC (2x Switched Power Supplies for redundancy /12V 14.1A P/N
23537_180W)
Power Consumption
16W - max 75W (power consumption depends on the used CPU and optional PCI-E card)
Video Resolution
Intel
®
Celeron
®
N3160 HD Graphics 400 2x 2560x1600@60Hz
Intel
®
Core™ i5 - 6442EQ HD Graphics 530 3x 4096x2304@60Hz
Intel
®
Core™ i7 - 6822EQ HD Graphics 530 3x 4096x2304@60Hz
Audio
Stereo 48KHz 16/Bit (1Vrms 20Hz – 20KHz)
Data
2x USB 2.0 HighSpeed 2x USB 3.0 SuperSpeed and 2x Gigabit Ethernet
MTBF
80KHrs
Interfaces / Connectors
USB
2 x USB 3.0 Type A SuperSpeed 2 x USB 2.0 Type A HighSpeed
SATA
2 x SATA 6Gb/s (SATA-III) max. 5Watt per port
mSATA
1 x mSATA 6Gb/s
Ethernet
2 x Gigabit RJ45
Video
3 x mini DP* outputs expandable up to 7 mini DP outputs with additional PCI-E graphics
card
Audio
3mm jack socket for stereo line out
3mm jack socket for stereo line in or mic selectable via on board jumpers
Configuration / Diagnostics
GUI
Yes
SNMP Management
Yes
Indicator LEDs
Ethernet link and activity on each RJ45 connector
Power switch
Switch inclusive HDD/SSD activity LED to shutdown/power up module
*Only two DisplayPort outputs are supports on Celeron processor.
