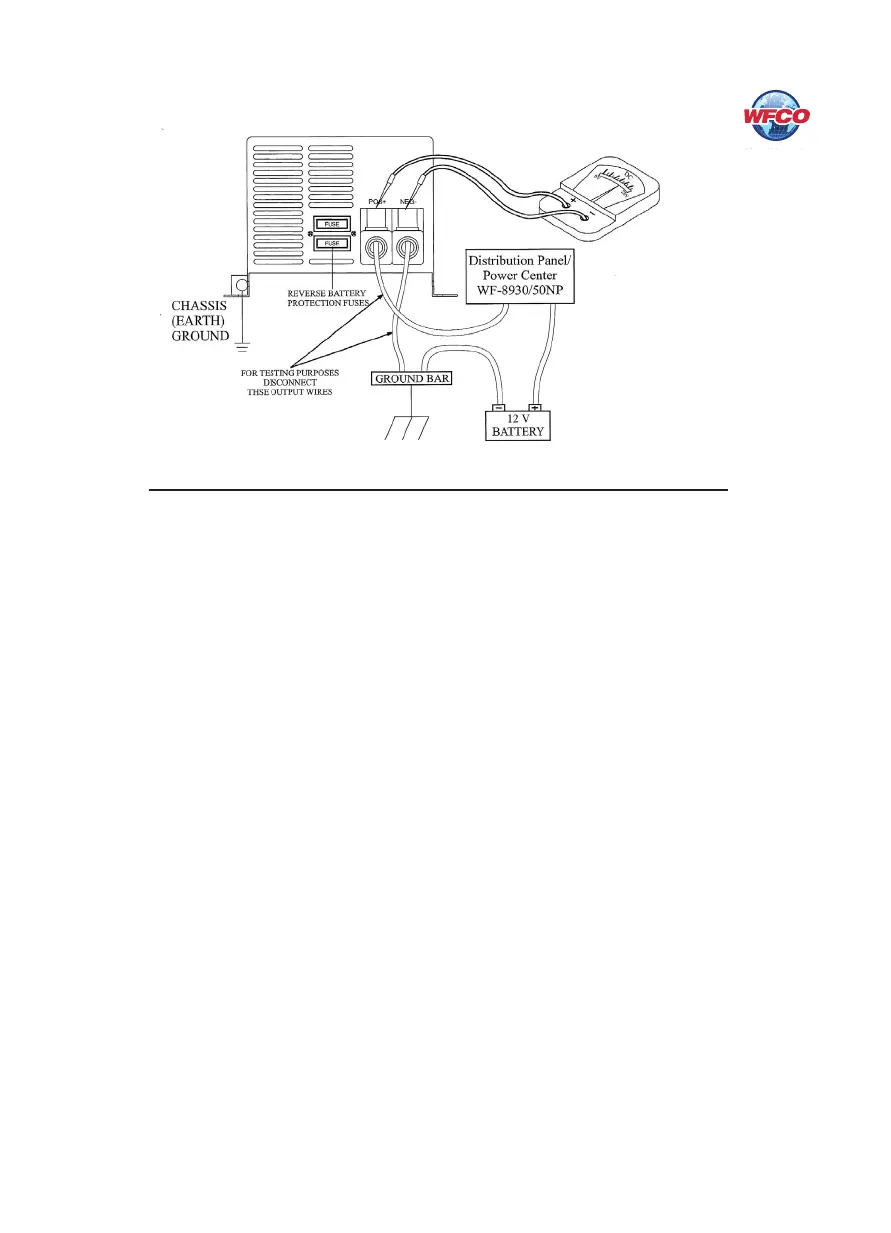

Figure 3
If the converter output voltage at the battery reads 0.0 VDC, or if the battery is not
charging, check for an open inline fuse in the battery wire circuit. One may have been
installed by the RV manufacturer. Also check for loose wiring connections.
Reverse Polarity Fuses
If there is no DC output coming from the WF-9800 Series Converter-Charger output lugs,
rst check the reverse polarity fuses on the rear panel. en, visually inspect the fuses for
any breaks in the fuse element. If no breaks are found, use a continuity tester to check for
continuity. If the reverse polarity fuses are blown, it means the RV battery was accidentally
connected in reverse, either at the battery or at the converter. Investigate the connections
and reconnect the cables properly. Replace the fuse with the same type and amperage rating
as the original.
IMPORTANT: ese fuses protect the converter from damage if the RV battery is
accidentally connected in reverse. A reversed battery connection, even if for only a second,
will cause these fuses to blow.
If the above checks have been made but the converter output still reads 0.0 VDC, the
converter is not functioning properly.
7
