17

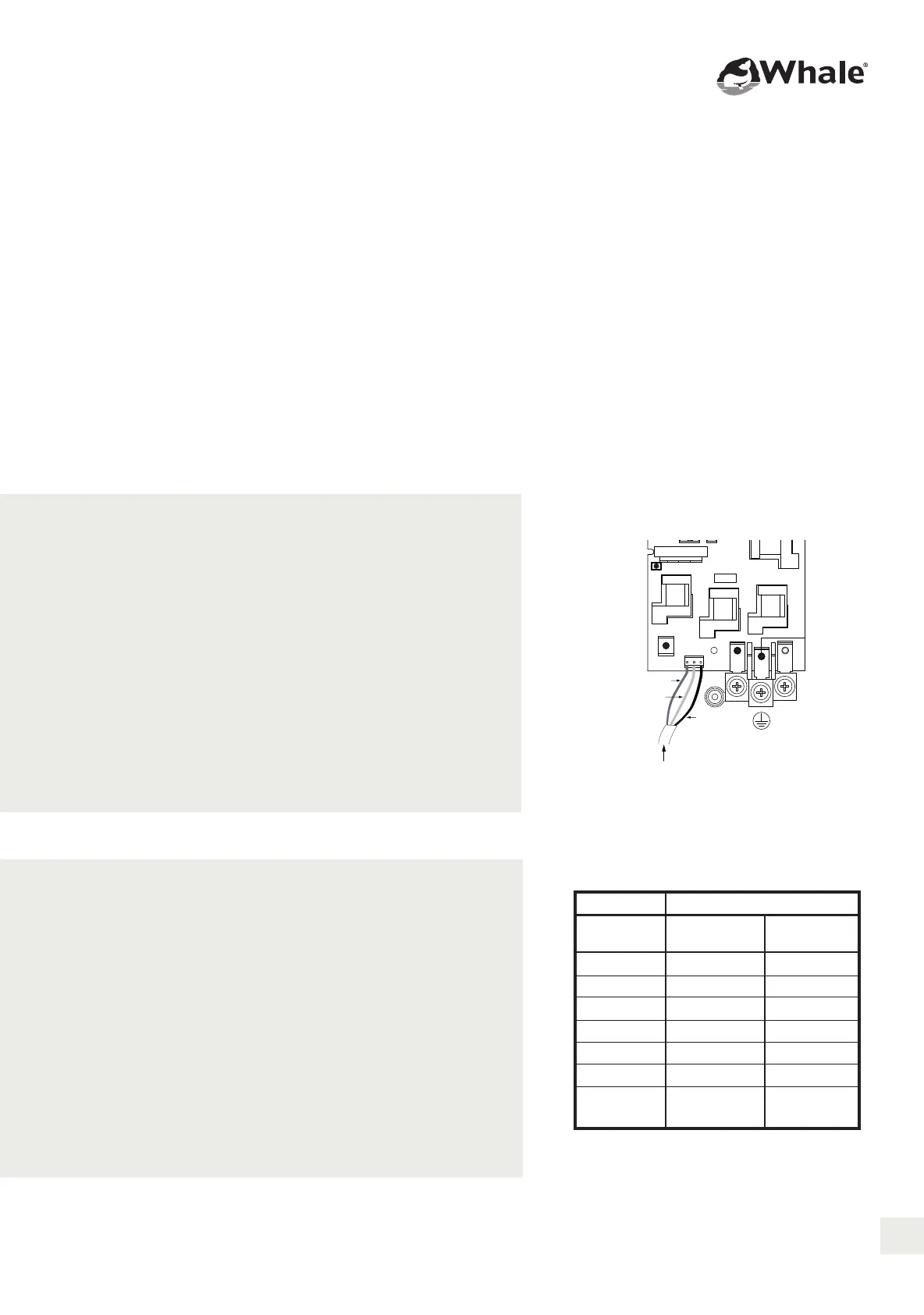

3. Connecting to the Mira
®
Advance
Flex Extra (J09N) shower
F
rom Transformer
TERMINAL BLOCK
N L
Brown
CN13
Black
Red
4. Connecting to the Mira
®
Advance
Flex Extra (J09N) shower to other
Whale
®
transformers
Older models of Whale transformer can be connected to the
Mira
®
Advance Flex Extra (J09N) shower. This table shows the
"LK" setting that the shower should be set to in order for the
pump to operate correctly when using the listed transformer.
• Connect the signal cable from the 755.678 transformer to
the shower, working from left to right as shown:
Brown, Red, and Black.
• Switch the mains electric supply to the transformer
and shower on. The pump will now operate when
the shower is activated.
Drain Pump
Type
755.199
755.210
755.299
755.349
755.399
755.449
755.549
Shower
Advance
Control PCB
LK1 - ON
LK1 - ON
LK1 - OFF
LK1 - OFF
LK1 - OFF
LK1 - OFF
LK1 - OFF
Signal
Hardwired
Hardwired
Hardwired
Hardwired
Hardwired
Hardwired
Hardwired/
Wireless
181.604 (IMATCH).qxp_Layout 1 14/10/2019 11:24 Page 17
