• The transformer is for indoor use only.
• The transformer contains no user serviceable parts.
• External components for service are jumper settings only.
• Where there is damage to the transformer or cabling,
contact your Whale distributor for a replacement.
• Do not connect mains power to the pump as this will cause permanent
damage and will result in an electrical hazard.
• Installation must conform to BS7671:2018 (18th Edition)
• After 15 minutes the transformer will reactivate the
pump for 30 seconds at a lower flow rate to remove
a
ny run-off or condensation that has collected in the
gulley to leave the shower area dry.

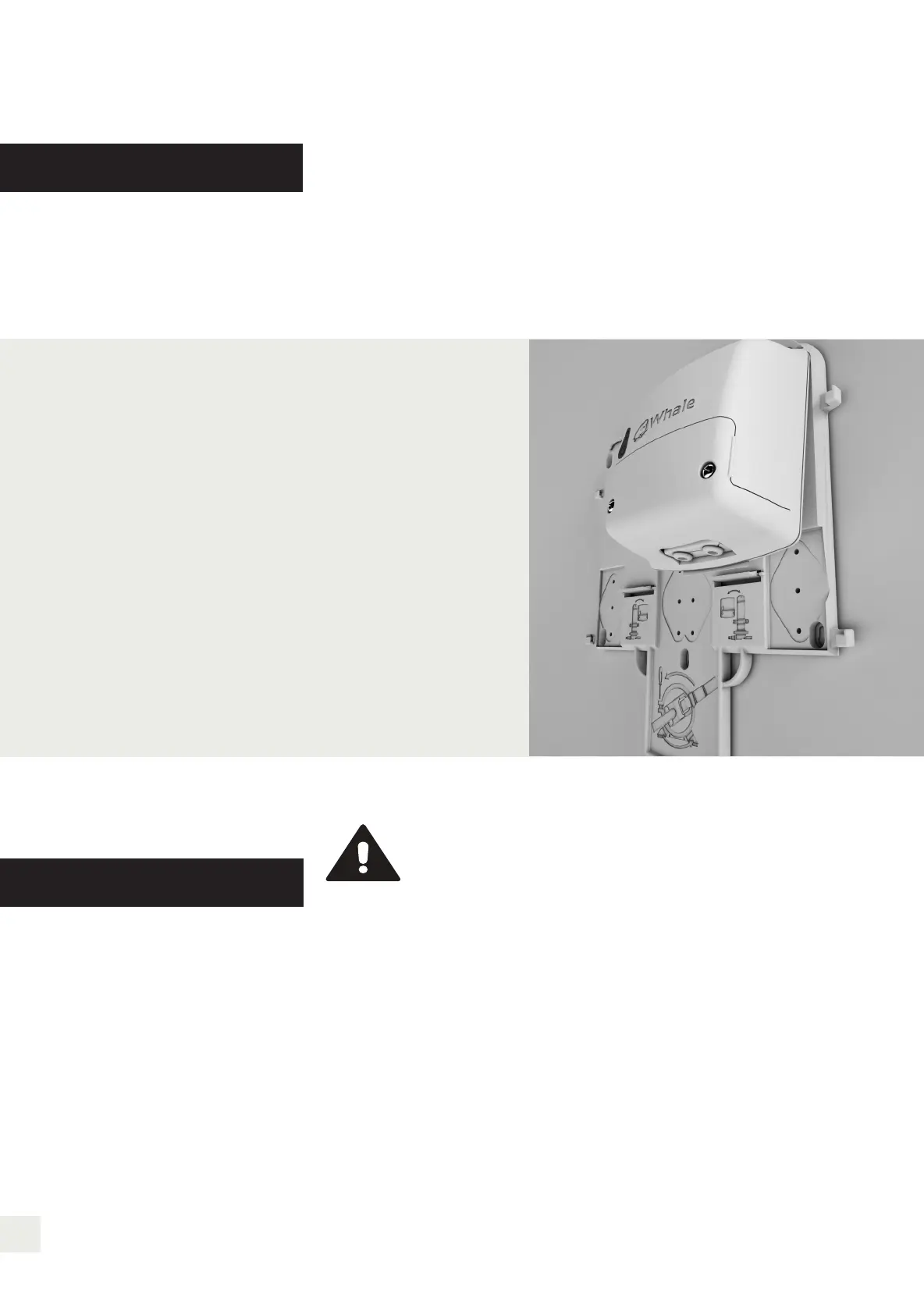

Swapping the mounting location of the
pump and transformer on the backplate
• Unscrew pump from base.
• Remove the transformer from its secure mounting
by pressing the securing tab on bottom of transformer.
• Move transformer to opposite side of the casing and
place the top two lugs into the spaces provided.
• Click the bottom part of the transformer into place
using the securing clip.
• Replace pump in new location and secure with screws.
Safety Warning
WARNING
Purge Cycle
18
