Run 15mm pipe from gulley to pump inlet (max 3m).
• Use slow radius bends where possible. Full size elbows
are acceptable, not stem or Male/Female elbows. Where
possible avoid attaching elbows directly to the pump.
2. Locating your pump on the wall
• Select a suitable location for the pump, considering
the best plumbing option for the pump outlet to
discharge into the waste pipe. The pump head may
be rotated to the left hand side or right hand side.
• Mount square to wall.
• Using a spirit level ensure that the unit is mounted level.
• Do not install the pump inlet/outlet more than
500mm off the floor.
• NOTE: The pump and transformer mounting location
on the backplate may be swapped right to left / left to
right. See Page 18 for further information.

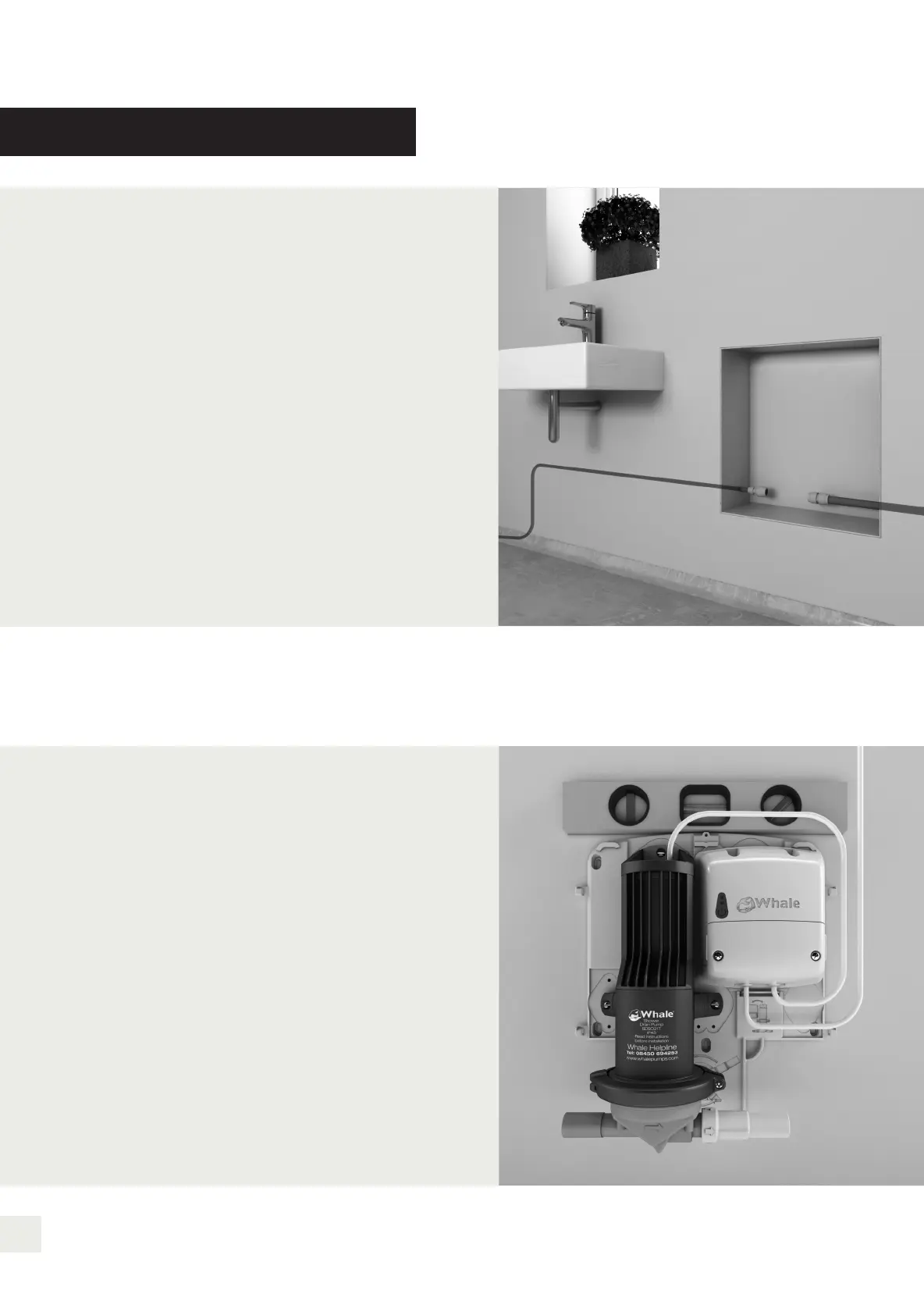

1. Plumbing drainage pipe
Plumbing of the Waste Pipe
Installation
