The transformer is factory set for use in Bluetooth
®
wireless
technology mode with a 10 second overrun and 15mm Inlet
pipe diameter. Other settings are given below:
9. Transformer settings
Flow Sensor Type:
1 Aux
2 Sika
3 Gems 1000ppl (pulses per litre)
4 Gems 2200ppl
5 Venturi
6 Mira Wired
7 Bluetooth
Off Delay
10s
30s
60s
Pipe Inlet
Diameter
1ᴓ/ 15mm inlet pipe
(for electric showers only)
2ᴓ/ 22mm inlet pipe
(for mixer showers)

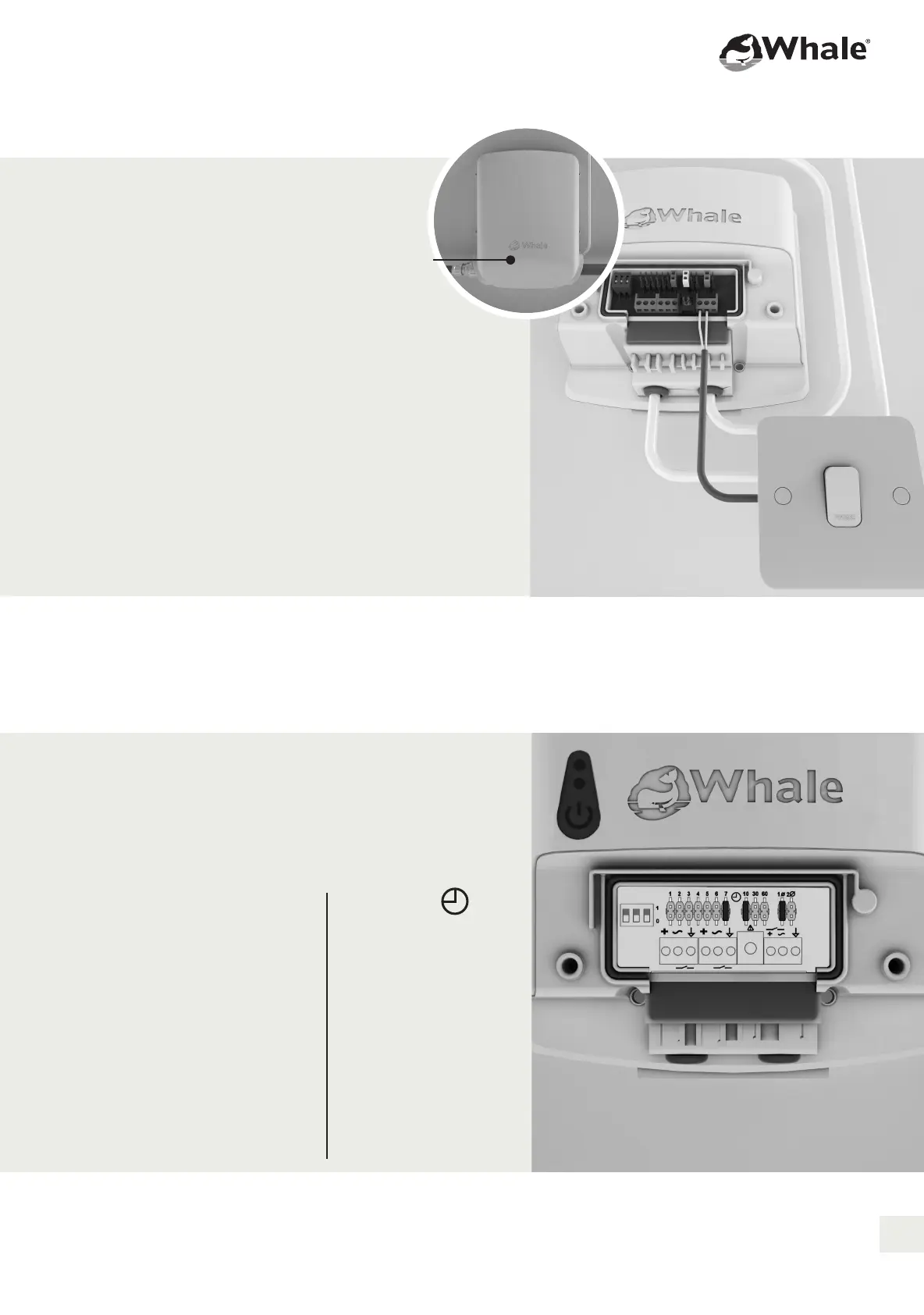

8. Optional external
pump overrun switch
Use a retractive switch to briefly activate the pump.
This facility is for use when the wet area is being cleaned,
or for ritual cleansing. The pump will run for 15 seconds at
full speed to clear any water in the showering area.
The retractive switch shown is available from Screwfix.
(Retractive Switch 1 Gang 1 Way Part No. 6151J)
NOTE: This switch may only be fitted outside the wet area.
11
7. Fit and secure pump cover
when required to complete set up
