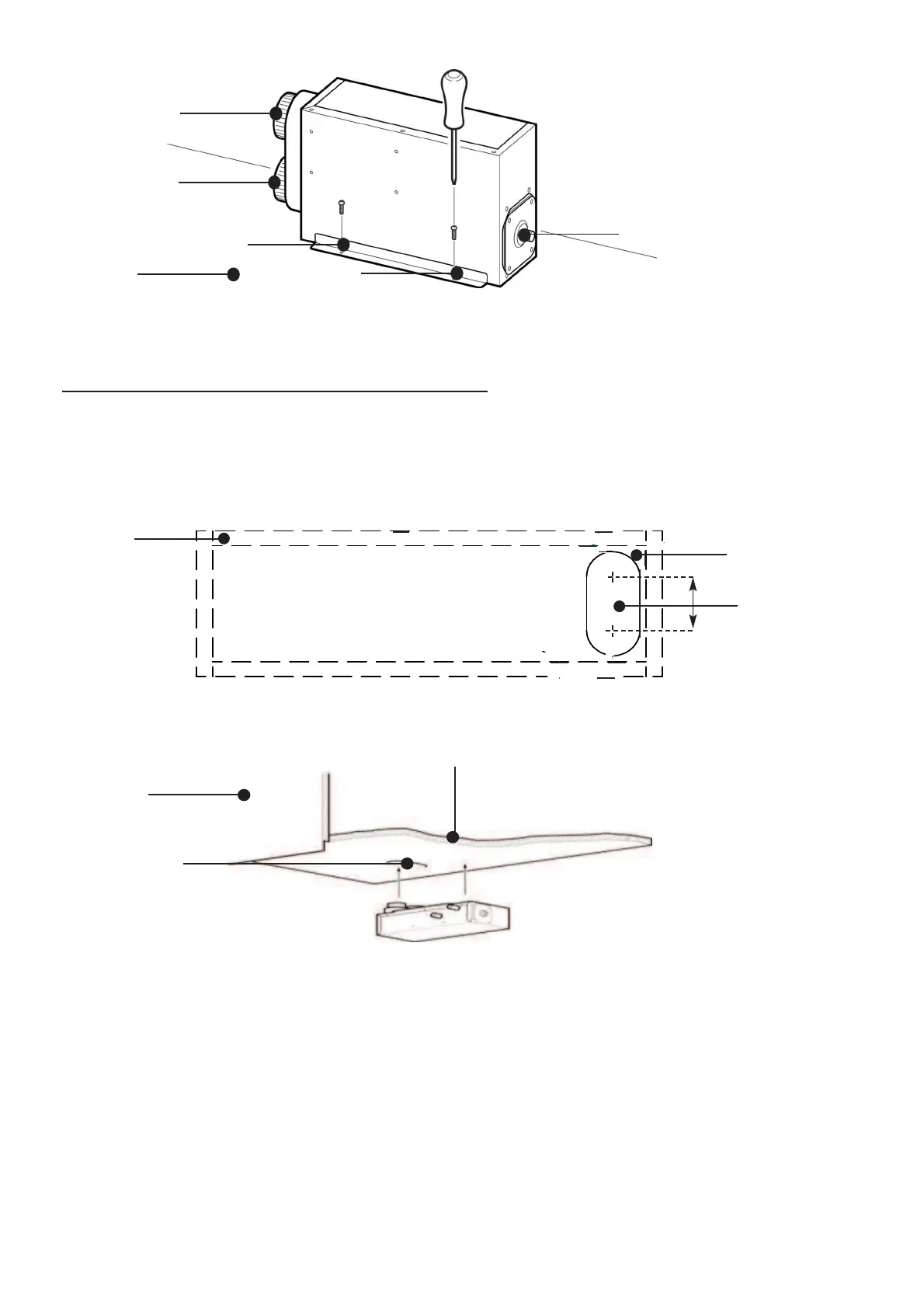

Fig. 16 Installation and Securing the Space Heater
For internal installation, please proceed to Step 6.
Step 4 Underfloor Installation - Underfloor Heater Location
For underfloor installation, the floor of the vehicle must be manufactured as per Fig. 18. Wooden batons must be
incorporated in the floor’s construction to secure the screws into.
Locate the Space Heater in position so that the screws will enter the wooden batons, and attach the Space Heater
with the 10 screws (No. 8 x
5
⁄8”) provided.
Fig. 17 Securing the Space Heater (Plan View)
Fig. 18 Attaching the Underfloor Space Heater
Vehicle Floor
Cut out in Floor
Space Heater
Gas In
Vehicle Wall
11
Gas In
Screw Hole
Vehicle Floor
Screw Hole
Hot Air Outlet
Cold Air Inlet
Wooden Batons
built into floor
96mm
Cut out in floor
R51mm x 2
