The Space Heater, its gas supply, and flues for the products of combustion must be inspected in accordance with
national regulations or if these do not exist, the Space Heater manufacturer’s recommendations. Whale advises that
this must be carried out at least annually.
Please note: The Space Heater and Ducts will become hot. Avoid anything directly touching the Space Heater
or Ducts.
The Whale® Space Heater kit contains:
Please note: The Whale® Space Heater requires a separate Flue Kit for installation.
Exhaust Flues are available in lengths of 1.25 metres and 2 metres.
Inlet Flues are available in lengths of 1.25 metres and 2 metres.
5. PARTS LIST
4
SH2201 or
SC2201
SH2211 or
SC2211
SH2202 or
SC2202
Space Heater and 4 screws
1 1
Space Heater and 10 screws
1
Control Panel / Room Thermostat and 4 screws. Not SC models.
1 1
3.5m Control Panel cable (retail only)
1 1
Warranty Registration card
1 1 1
Instruction manual including installation templates
1 1 1
Instruction manual storage pocket, with adhesive fixing strip
1 1
Overheat Stat Insulation
Electric Overheat Thermostat
Gas Overheat Thermostat
Heat Exchange Case Cover
Gas Heat Exchange
Heat Exchange Gaskets
Burner Gaskets
Burner
Electrodes
Case Lid
Gas Injector
Gas Train
Sealing Washer
End Plate Gasket
End Plate
End Plate
Connector
Olive
Nut
Outer Box
Interface Box
Fan Combustion Air
Motor Gasket
Air Flow Sensor
Fan Housing
Fan Hot Air
Motor Mounting Plate
Motor
Fan Housing Gasket
Heat Exchanger Case
PCB
Insulation
Electric Assembly
Element Mounting Plate
Element Cover Plate

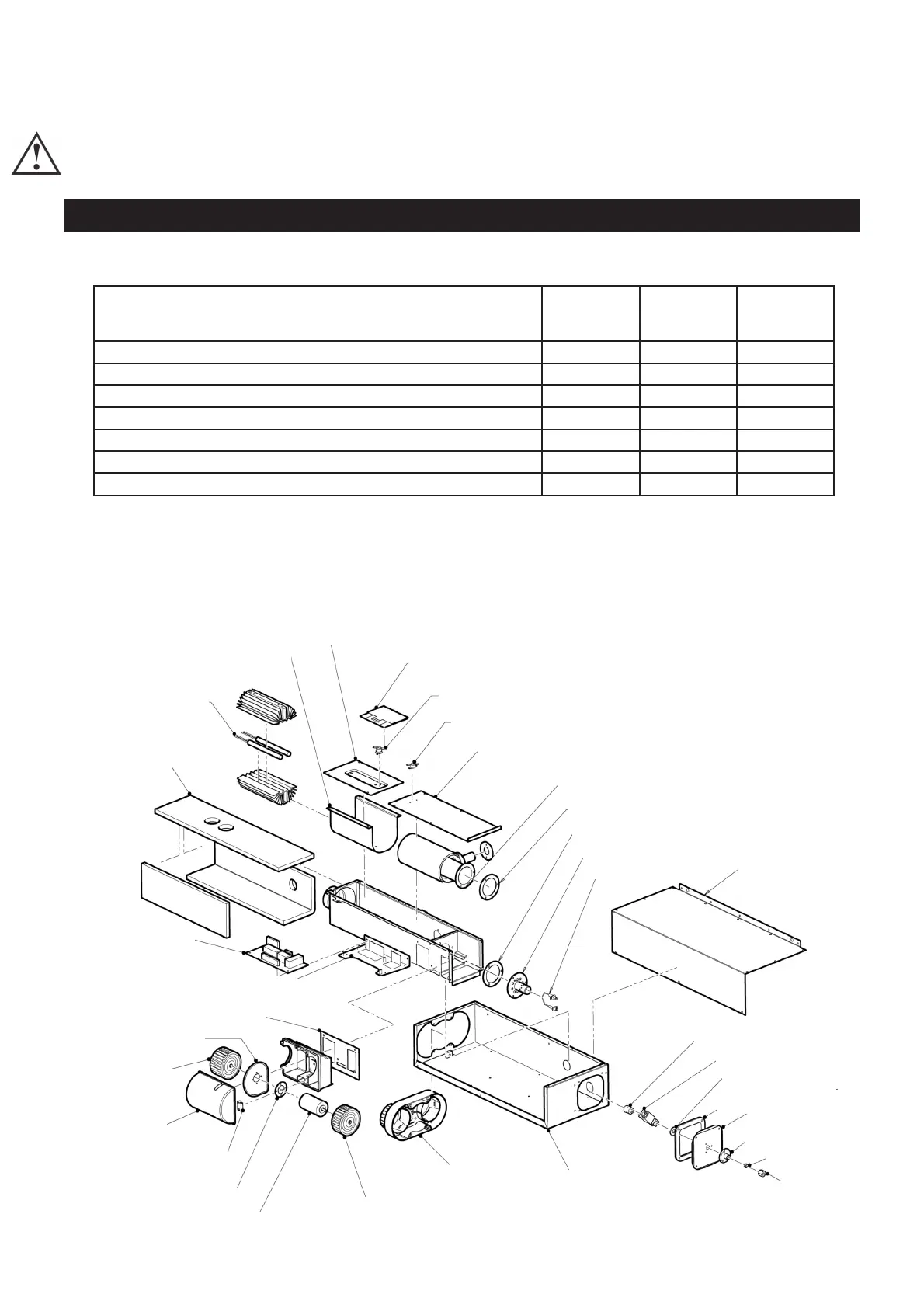

Fig. 1 Components Drawing
