A Gas Pressure Test Point must be fitted to the inlet of the appliance.
When the gas line is complete, all joints must be tested for leaks using Leak Detection Solution.
N.B. Never with a naked flame.
The gas pressure must be verified at the pressure test point.
Please note: The operating pressure for the gas supply must be either 28-30mBar Butane or 30mBar-37mBar
Propane.

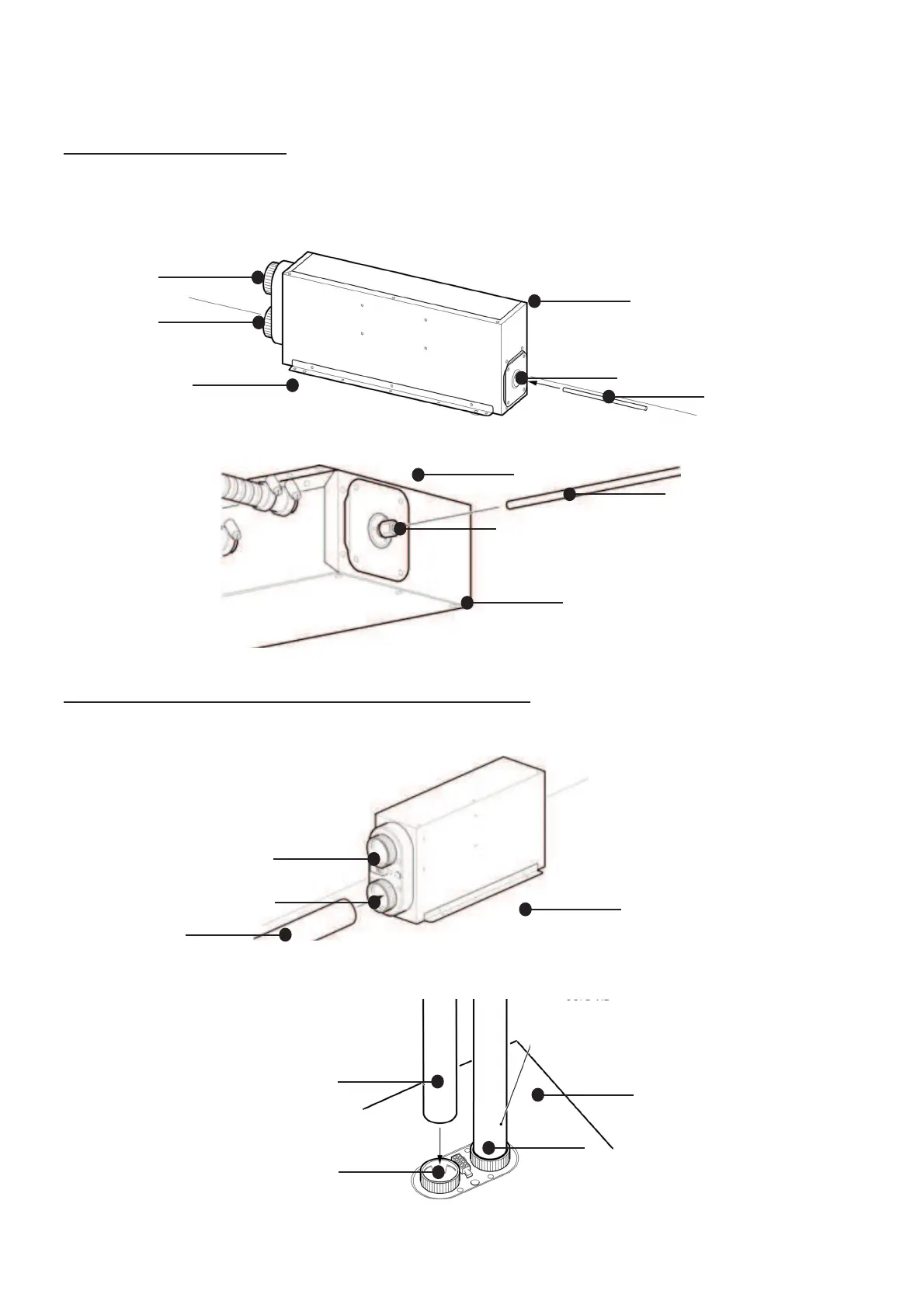

Fig. 21 Internal Installation - Connect to Gas Supply
Fig. 22 Underfloor Installation - Connect to Gas Supply
Step 8 Internal and Underfloor Installation - Fitting Hot Air Ducts
To fit the ducting, push it onto the ‘hot air outlet’, where it will be gripped by the nozzle.
Fig. 23 Internal Installation - Connect to Hot Air Duct
If fitting the Space Heater underfloor, fit the air duct into the hot air outlet on the Space Heater as shown in Fig. 24.
Fig. 24 Underfloor Installation - Connect to Hot Air Duct
13
Space Heater
Gas In
Gas Pipe
Vehicle Floor
Hot Air Outlet
Cold Air Inlet
Gas In
Gas Pipe
Space Heater
Vehicle Floor
Hot Air Outlet
Cold Air Inlet
Ducting
Vehicle Floor
Vehicle Floor
Cold Air Inlet
Hot Air Outlet
Duct
To Next Page
