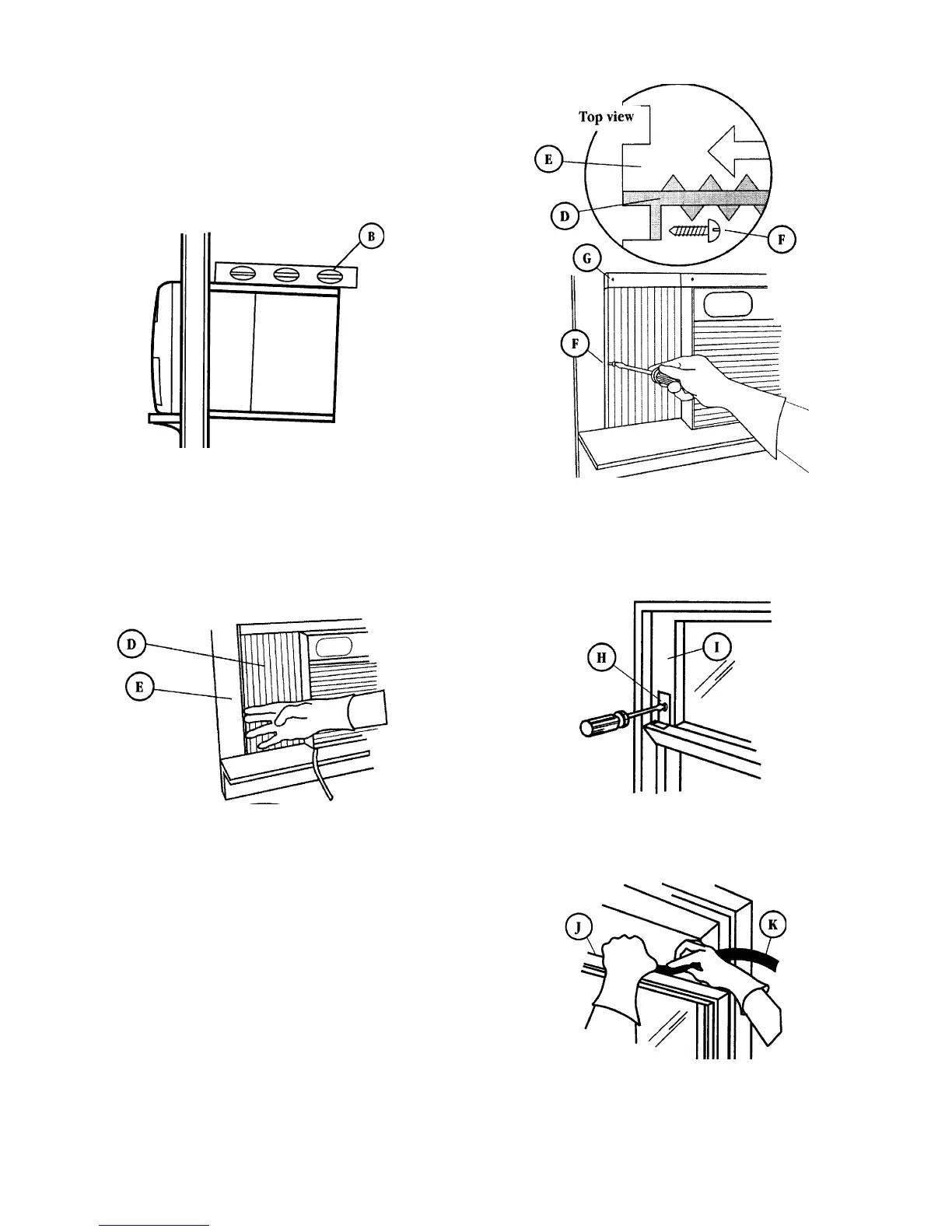

3. Pull the left curtain (D) out and fit it into the
window channel (E).
4. Install the right curtain in the same manner
as the left curtain. NOTE: If the air condi-
tioner does not have side curtains, fill
spaces with a suitable material.
7. Mount the window-lock bracket (H) on top
of lower window and against upper win-
dow sash (I). Use a 3/32″ drill bit to drill a
starter hole through the hole in the bracket.
2. Make sure that the back of the air condi-
tioner cabinet is tilted down so that water
will run to the outside. The tilt should be
about 1/2 bubble (B) on a spirit level. If the
cabinet is not properly positioned, reposi-
tion or shim it to provide the proper tilt.
5. Secure the left curtain with one of the
round-head screws (F) to the window chan-
nel. If desired, use alternate hole (G) at the
top of the curtain to secure it to the window
channel (see the illustration at the top of
the next column).
6. Fasten the right curtain to the window
channel in the same manner as the left
curtain.
8. Insert foam seal (K) behind the top of the
lower window sash (J), and against the
glass of the upper window.
9. Plug the power cord into an appropriate
AC outlet.
