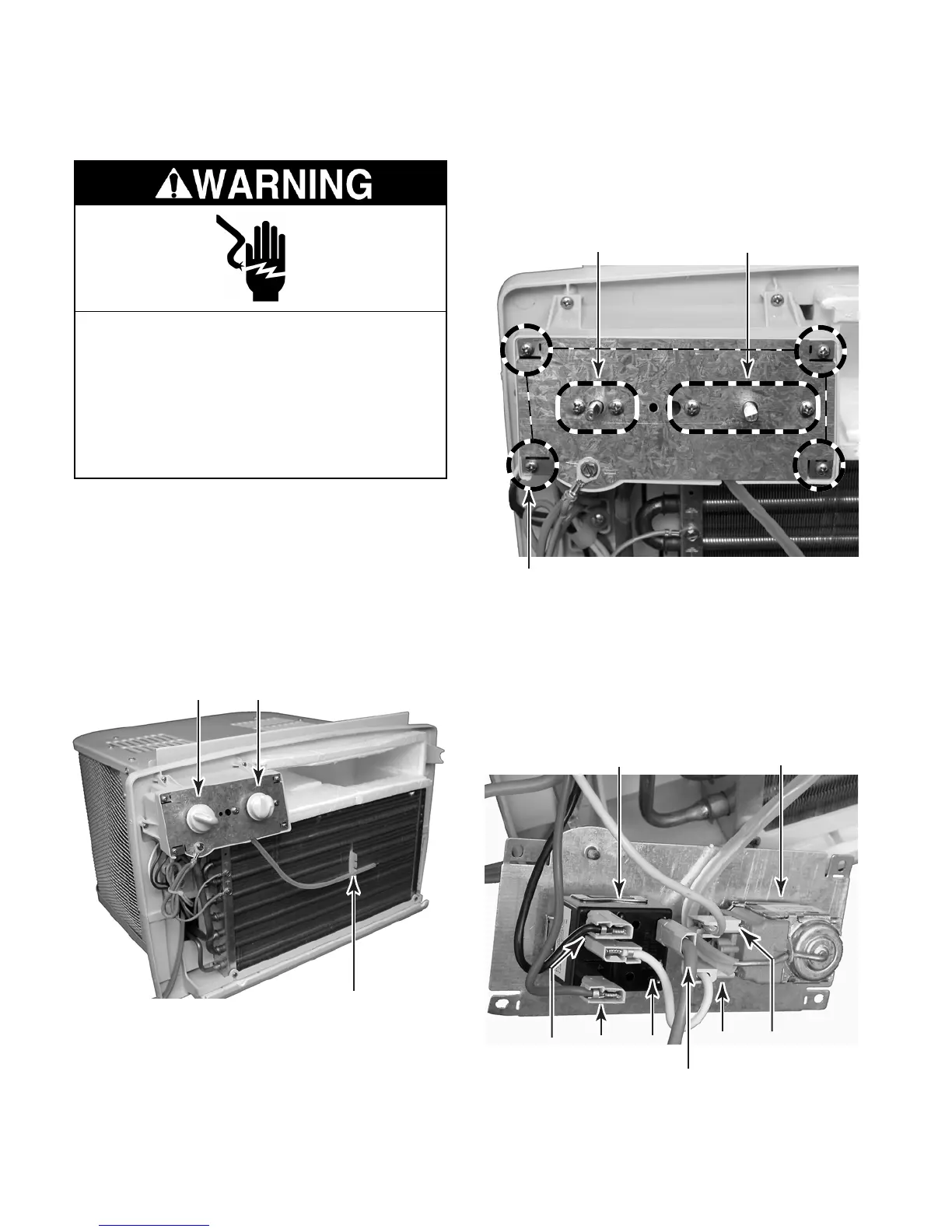

REMOVING THE FAN SPEED & TEMPERATURE CONTROLS
MODELS ACD052MM, ACM052MM, & ACM062MM
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug air conditioner or disconnect power.
2. Remove the air conditioner from the win-
dow.
3. Remove the side curtains and the front
grille (see page 3-2 for the procedures).
4. Pull the knobs off the fan speed control
and temperature control shafts.
6. Depending on which control you are ser-
vicing, remove the two screws from the fan
speed control or the temperature control.
Fan Speed Control Screws Temp Control Screws
7. Disconnect the wire connectors from the
control terminals and remove the control
from the mounting plate.
8. If you are removing the temperature con-
trol, unclip the temperature sensor tube
from the holder on the evaporator.
Black Red White
Power Cord Lead
White Yellow
Fan Speed Control Temperature Control
Fan Speed Control Temperature Control
Control Mounting Plate Screw (1 of 4)
Temperature Sensor Tube
5. Remove the four screws from the control
mounting plate and position it so that you
can access the controls and wiring (see
the photo at the top of the next column).
Model ACD052MM Shown Above
To Next Page
